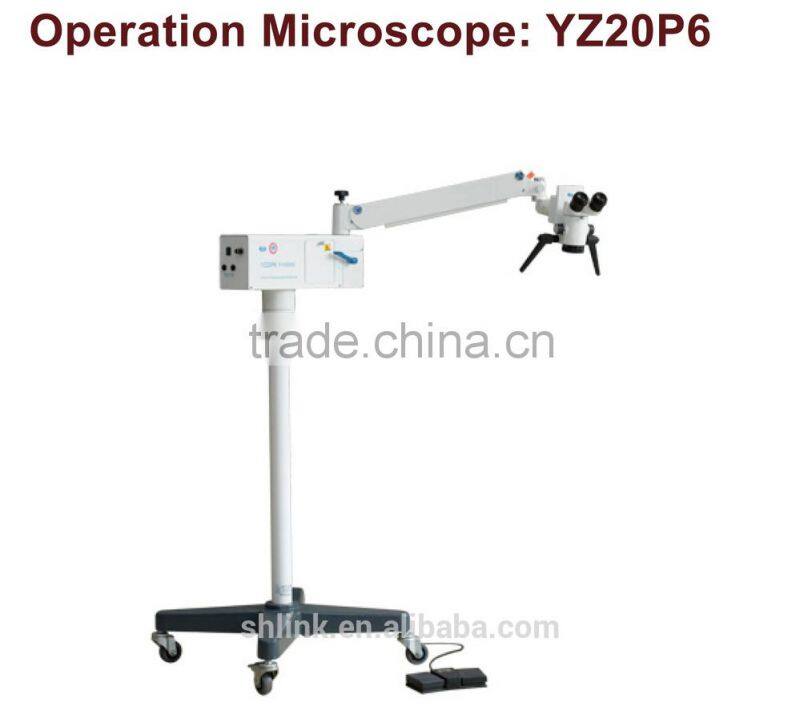

YZ20P6 Ophthalmic Operation Microscope

Name: YZ20P6 Ophthalmic Operation Microscope
Brand: LINK Operation Microscope
SKU: 130476647
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

LINK Operation Microscope

Model Number:

YZ20P6 Operation Microscope

Shanghai Link Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name LINK Operation Microscope

Model Number YZ20P6 Operation Microscope

YZ20P5 ophthalmic Operation Microscope

Operation Microscope: YZ20P6

Features:

•Binocular operation microscope designed for single man can meet the requirements of general ophthalmic surgery.

•Germany optical lenses are all multi-coated. Image is clear and view field is even.

•6°+0 coaxial illumination provides the red reflex.

•Reaching radius of microscope arm increases to 1030mm ,which provides surgeon larger operation range.

•Cortical remnants on the posterior capsular can be clearly observed by the 6°+0° coaxial illumination.

•Position screw can protect the arm at any location from moving.

Specifications:

Eyepiece Magnification	12.5×
Objective Focus	f=200
Working Distance	190mm
Magnification for Main Microscope	5.3×,8×,12× steps
Diameter of Field	F37mm,F25mm,F16.7mm
Diopter Adjustment	±7D
Pupil Distance	50mm~80mm
Maximal Resolution	100 LP/mm
Illumination Source	12V/100W,cold reflection medical halogen bulb
Illumination Type	6°+0°cold light coaxial illumination
Coaxial Illumination	≥30000lx
Reaching Radius of Arm	1030mm
Adjustable Vertical Range	±200mm
Fine Focusing Range	30mm
Input Voltage	AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz
Power	120VA
Fuse	AC250V T1.25A ,AC125V T2.5A
Electrical Safety Standard	Executive Standard GB9706.1-2007 Class Ⅰ
Packing Volume	0.24m3,1 carton
Total Weight	51kg
