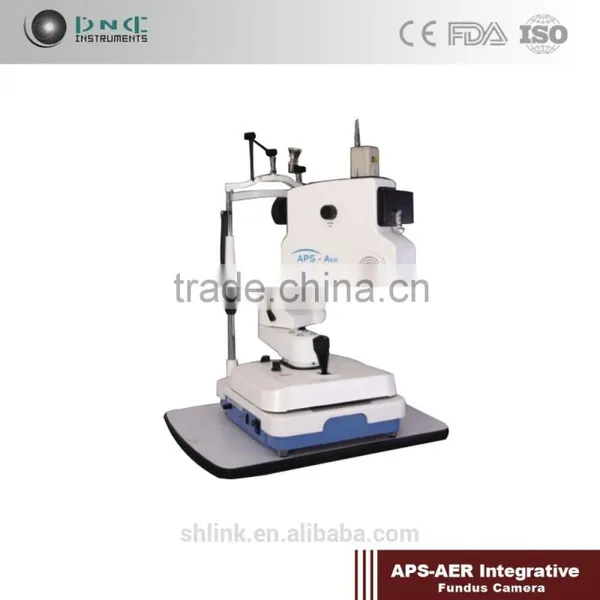

CHINA ophthalmic APS-AER Integrative Fundus Camera

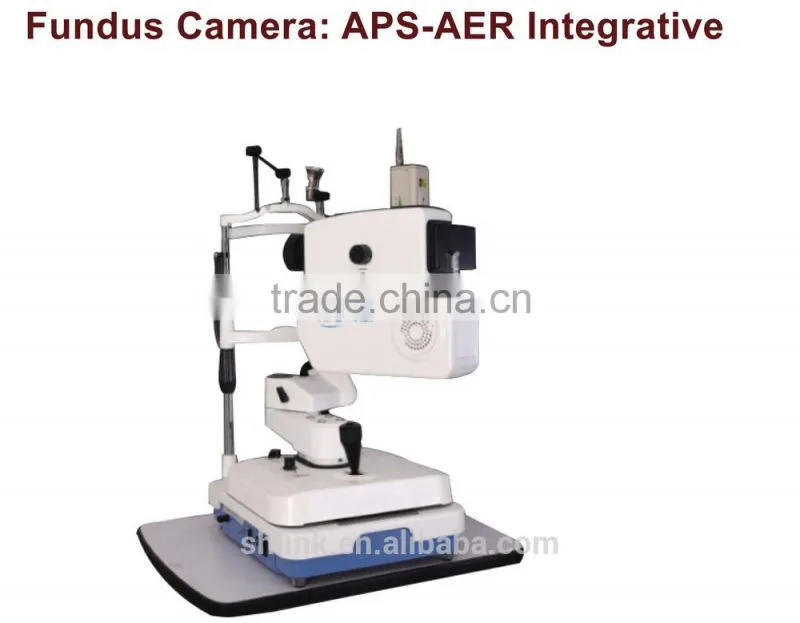

Fundus Camera: APS-AER Integrative
Specifications
General
Mode: ASP-AER Integrative
Working Mode: NON-Mydriatic
Field of view: Up to 53 D
Minimum pupil size: 3.5mm
Patient diopter range:-10D to + 10D
Observation light source: Infrared LED
Eye fixation target:Internal LED + External LED
Eye position aid: Aligmnent Dots
Sensor resolution:12M Max
Display monitors:7 Inch LCD+17 Inch post processing monitor
Working ditance: 40mm
Base movement: F-B: 50mm L-R:90mm U-D:30mm
Fine adjustment: 15mm
Electrical
Power supply:AC 220V/110V 50Hz
Working temperature:-5 degree -40 degree
Working humidity:0%-85%
Physical
Dimension:487mm×310mm×630mm
Weight:.32kg
Software
*Image post processing: brightness,contrast,gamma,colour,smooth,sharp,etc.
*Foucs processing:measure,mark,patching up,etc.
*Documents management:record,search,sort,report,etc.
