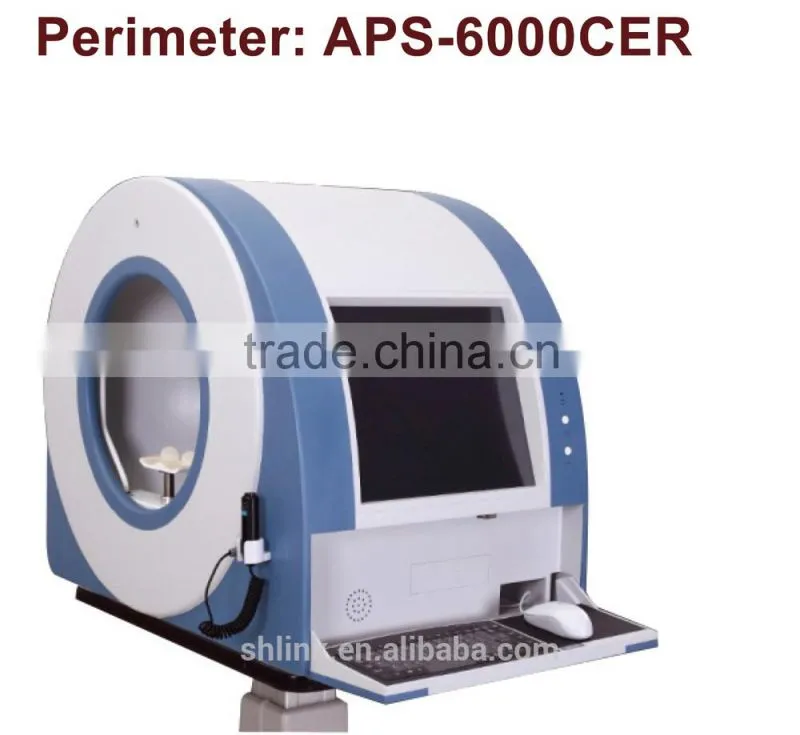

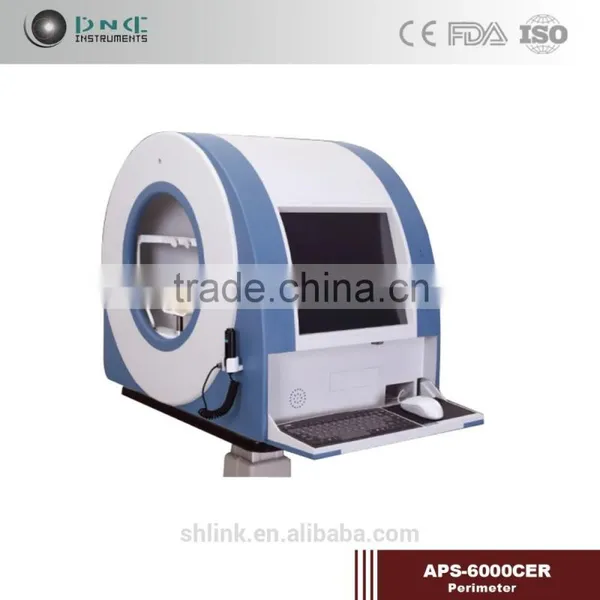

CHINA ophthalmic APS-6000CER visual field perimeter
Perimeter: APS-6000CER
Specifications:
Stimulus Type: LED
Stimulator screen : Hemispherical bowl,radius 30cm integrated
Stimulus Source : Light emitting diode,wave length 580nm-650nm
Stimulus Size:goldmann III
Stimulus Intensity:≤1000 asb
Stimulus Duration : Adjustable 0.2 to 2 seconds
Stimulus step : total27, step 1
Minimum inter-stimulus delay :Adjustable 0.2to 2 seconds
Background illumination : 4 asb
Lens holder diameter: 35mm (optional)
Stimulus points: 144(0-60°),72(0-30°),72(60-90°),61(0-10°red),114(blind spot)
Chin rest moving range : vertical 70mm,horizontal 90mm
Fixation Method :
Automatic monitoring with two options.
Available blind spot method,Eye tracking method.
In both methods,fixation errors are to be immediately announced by visual and audible warnings.
The standard video camera should provide visual of the patient's eye for additional monitoring.
Test Range:
Default test(0-60°),Yellow spot test (central 0-10°),Central 0-30°test,Quadrant test,Peripheral test (60-90°),Blind spot test,Custon test
Stimulator unit dimensions:
APS-6000B 67×66×38 cm (HxWxD)
APS-6000C 75×60×65 cm (HxWxD)
Stimulator unit weight :
18 KG approx(APS-6000B)
40 KG approx(APS-6000C)
Stimulator unit power requirements :
110V/220V AC 50-60Hz
System Configuration:
Dynamic eye position inspection
Environmental illumination imspectiion
PC internal
