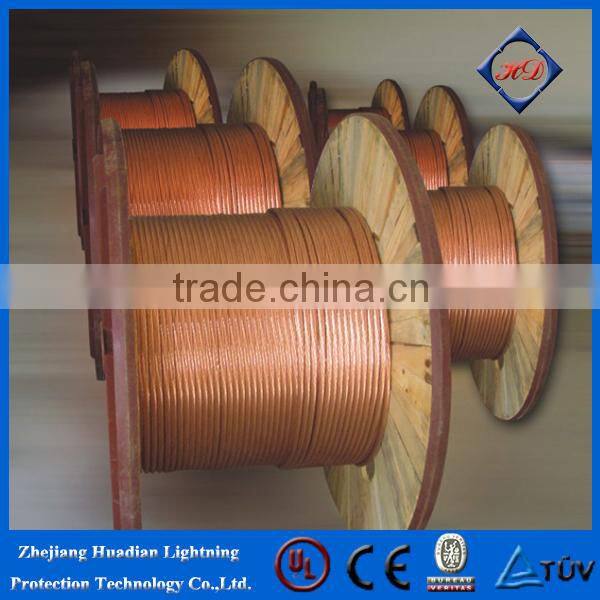

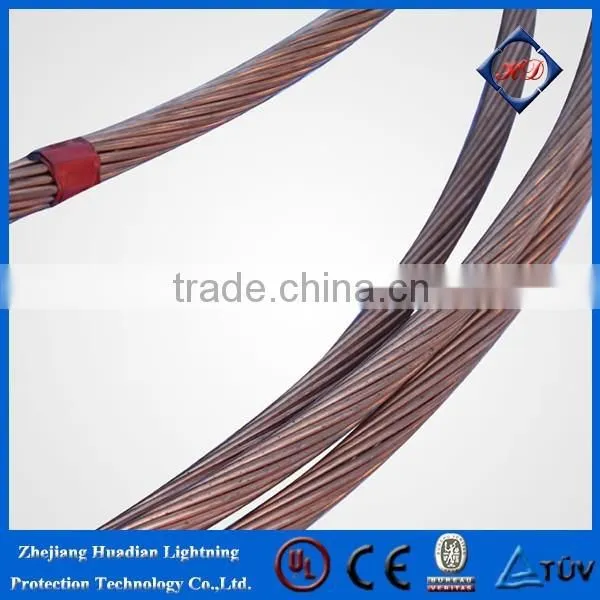

Copper Plated Steel Wire
|

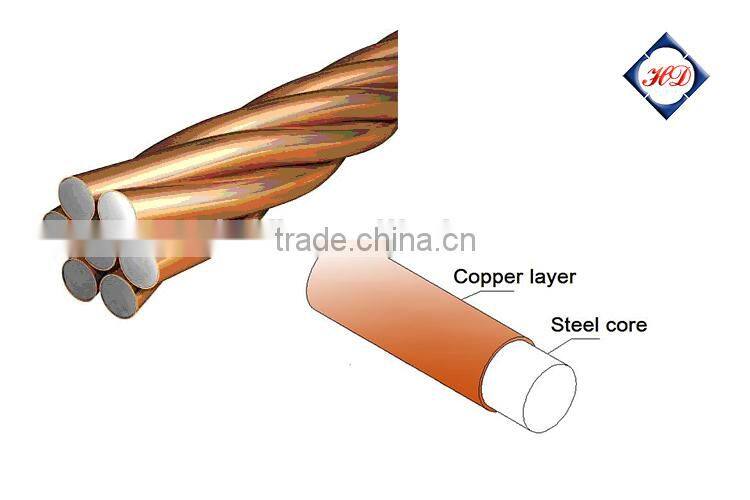

Electroforming copper clad steel single and stranded wire is through electrolysis electroforming of international advanced technology of electrolytic copper content of 99.9 molecular uniform on the cover to a high quality low carbon steel core processing of novel metal composite, The product of steel as well as strength and toughness, and good conductivity and corrosion resistance of copper. Compared to copper wire with a low density, high strength, low cost, anti - stealing and so on.
|
Wire material |
Copper Clad Steel(CCS) |
Single Diameter |
0.51mm--3.70mm |
Strand No. |
7--19--37 |
Conductivity |
16%-20%-30%-40% |
Tensile strength |
560Mpa-1040Mpa |
Elongation(MIN) |
1.5% |
Appearance |
smooth, bright, shining with copper luster |
Part No. |
Cross-sectional area |
Single Dia.(mm) |
Number of Strands |
Outside Dia.(mm) |
HD-HJ16 |
16 |
1.70 |
7 |
5.10 |
HD-HJ25 |
25 |
2.15 |
7 |
6.50 |
HD-HJ35 |
35 |
2.52 |
7 |
7.60 |
HD-HJ50 |
50 |
3.00 |
7 |
9.00 |
HD-HJ70 |
70 |
3.52 |
7 |
11.00 |
HD-HJ95 |
95 |
2.52 |
19 |
12.60 |
HD-HJ120 |
120 |
2.80 |
19 |
14.00 |
HD-HJ150 |
150 |
3.20 |
19 |
16.00 |
HD-HJ185 |
185 |
3.52 |
19 |
17.60 |
HD-HJ200 |
200 |
3.66 |
19 |
18.35 |
HD-HJ240 |
240 |
4.00 |
19 |
20.00 |
HD-HJ300 |
300 |
3.70 |
37 |
22.40 |
HD-HJ400 |
400 |
3.70 |
37 |
25.90 |
The product can be widely used in the communications industry, power systems, building systems, military installations, railway systems, broadcasting systems and other equipment industries, the AC and DC work, safely protected, especially suitable for harsh surface environment, corrosion resistance requirements to ground engineering, its market prospect is very broad.
|
|
|
|
|
|
||
1.Are you a trading company or manufacturer? |
| Manufacturer with factory! |
| 2.What kinds of Products do you produce? |
| It covers grounding materials ,lightning protection materials,connecting fixing ,grounding conductor,exothermic welding materials,etc. |
| 3.Is Customized Material available? |
| Yes,please offer your required specs. |
| 4.Do you Accept OEM service? |
| YES! |
| 5.What's your Delivery Time? |
| Normally 15-25days |
| 6.What's the Payment Trems? |
Usually,T/T 30% in advance as deposit,and T/T 70% against the B/L. |
| 7.How you pack products? |
| Normally,in steel pallet.We'll do according to customers' requirement. |
| 8.What's your available port of Shipment? |
Normally,Ningbo port or ShangHai Port |
