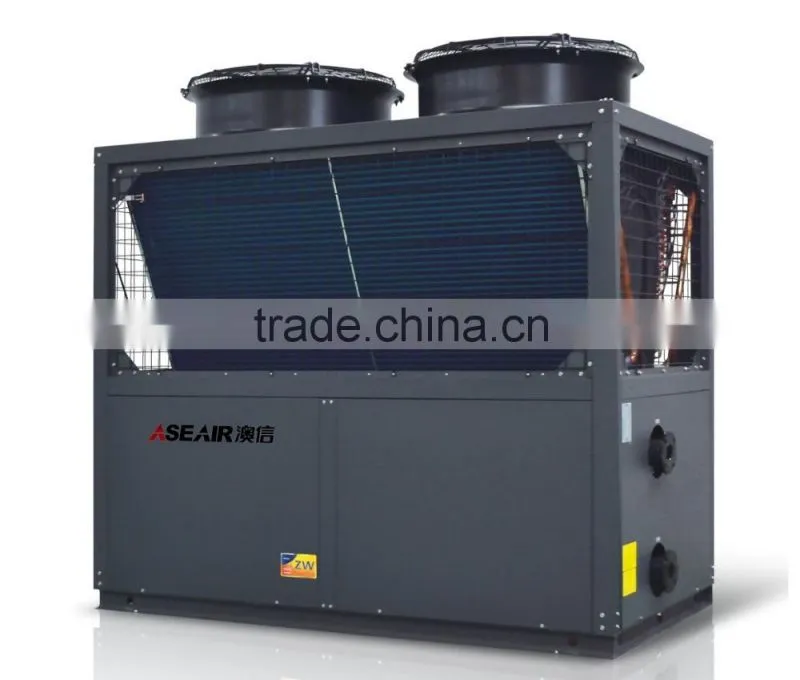

Aseair commercial heat pump for central heating
Features:
1. Copeland EVI compressor with R407c refrigeration system.
2. Operating ambient temperature down to -25° C cold climate.
3. COP up to 4.5 for heating, EER up to 3.0 for cooling.
4. Aseair Heat Pump Manager enables climate compensation, timer and smart defrost.
Parameters:
| Technical Specification | ||||
| Model Number | AFHC-065UYC | AFHC-075UYC | AFHC-150UYC | |
| Function | Heating/Cooling/Auto Defrost | |||
| Heating Capacity/COP (at A7/W35) | kW | 65.0/4.5 | 75.0/4.5 | 140.0/4.5 |
| Heating Capacity/COP (at A7/W45) | kW | 63.0/3.9 | 73.0/3.9 | 130.0/3.9 |
| Heating Capacity/COP (at A2/W35) | kW | 55.0/3.3 | 64.0/3.3 | 130.5/3.3 |
| Heating Capacity/COP (at A-7/W35) | kW | 42.5/2.7 | 48.1/2.7 | 96.5/2.7 |
| Cooling Capacity/EER (at A35/W7) | kW | 53.0/3.0 | 62.0/3.0 | 120.0/3.0 |
| Power Supply | V/Ph/Hz | 400/3/50 | ||
| Delivered Water Temperature | °C | +5 to 58 | ||
| Sound Pressure Level ** | dB(A) | 68 | 69 | 72 |
| Packing Dimension | mm | 2260x1360x2270 | 2360x2060x2570 | |
| Net/Operating Weight | kg | 850 | 950 | 1800 |
| Operating Ambient Temperature | °C | -25~+43 | ||
| Configuration | ||||
| Compressor | EVI Scroll | EVI Scroll | EVI Scroll | |
| Refrigerant Gas | R407c | R407c | R407c | |
| Controller | Heat Pump Manager | |||
| Water Heat Exchanger | Copper Tube-in-Shell Heat Exchanger | |||
| Water Pump | N/A | N/A | N/A | |
| Expansion Valve | TEV and EEV | |||
| Ventilator Type | Vertical Axial | |||
| * A7/W35 means at air 7°C, heat pump supply 35°C water for heating, according to EN14511; | ||||
| ** Sound pressure level was measured at a distance of 1 meter | ||||

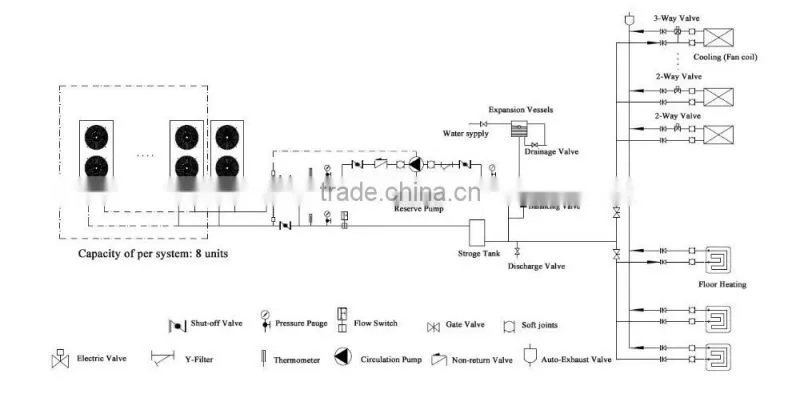

Hrydraulic system:

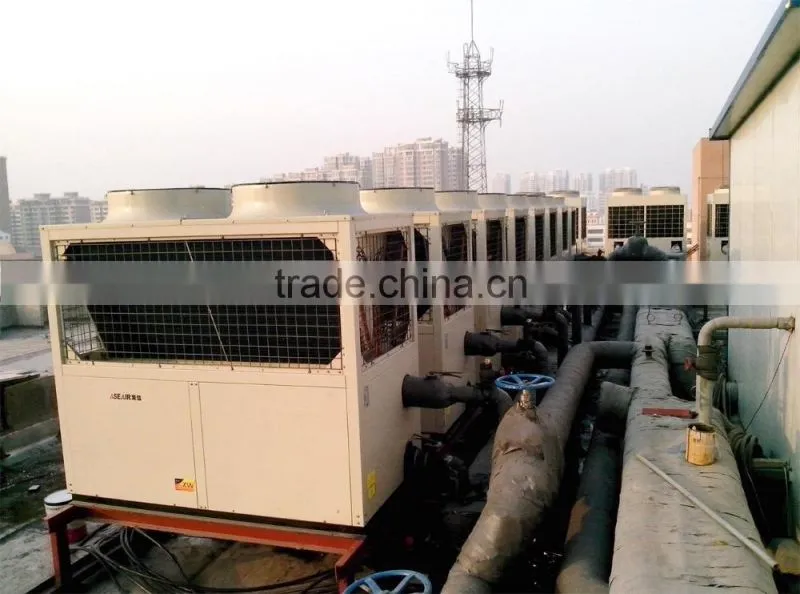

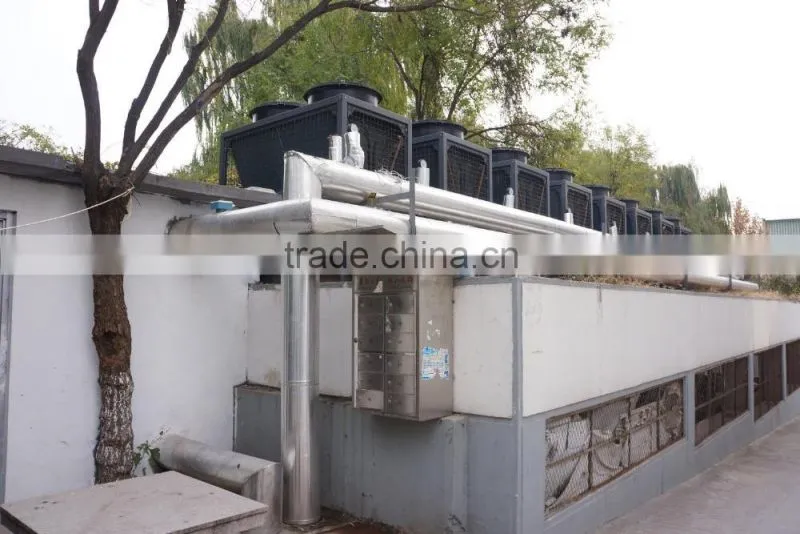

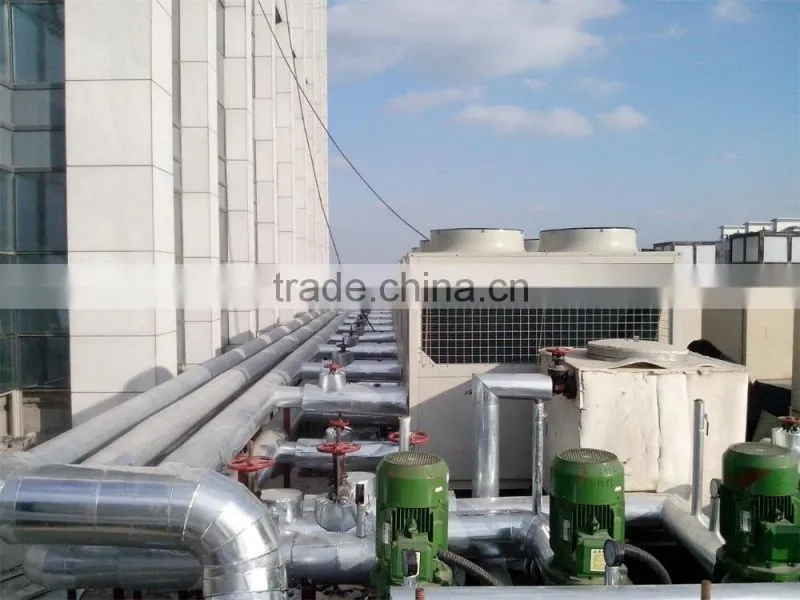

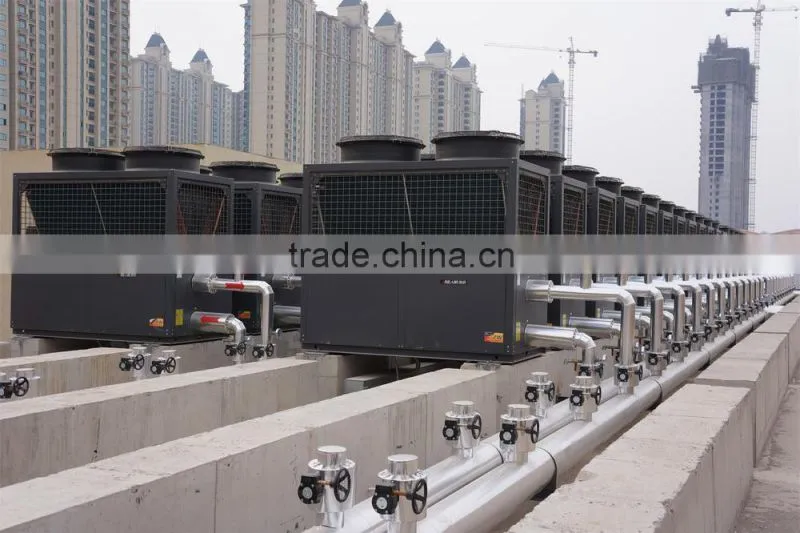

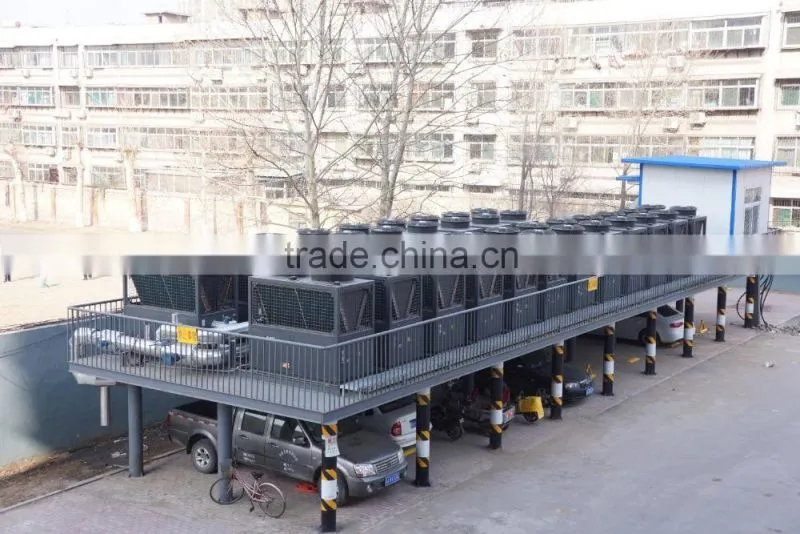

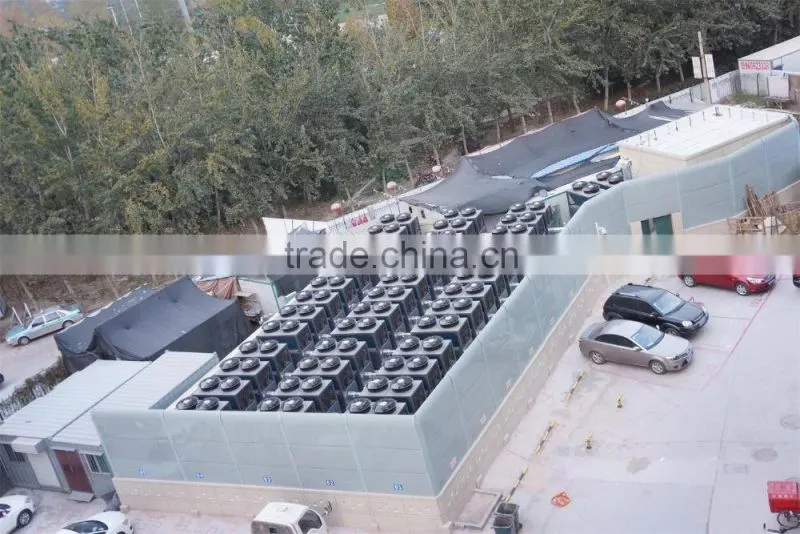

Engineering Cases Study
Why Aseair?
1.Over 18 years experience in heat pump system industry.
2.Customers favorite top 10 heat pump brand in China
3.The strategic partner of US Emerson and Denmark Grundfos.
4.Frequent exchange experience with European heat pump suppliers and distributors, constantly improve ourselves.
5.We choose the international famous heat pump components suppliers, to keep our heat pump high quality, high efficient and running stable all the years, all weather.
6.We are the reputable manufacturer, our products with reasonable factory price.
7.Provide not only products but also best solutions.
