No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line
Main technical parameters of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.
Type | PTL No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line |
Folding Machine for pocket tissue/paper handkerchief | |
| Output | 2lines output delivery. 1line delivery also available or customized. |
| Speed | 600-700 sheet/min/line x 2lines |
Raw material | 13-18g/m2 2-ply virgin tissue; 18-35g/m2 single ply tissue and others |
Jumbo roll size | ≤ 420mm x Φ 1200mm (Width x Diameter) Or to be customized. |
Unfolded size | 210x210mm±2mm or 200x200mm±2mm (please specify your size) |
Folded size | Long type: 105x52mm±2mm Short type: 75x52 mm±2mm |
Folding type | 1/16 fold, 1/12 fold etc. Vacuum folding; |
Control | Inverter control Emergency stop Automatic stop if paper breaks or used up. JOG Stepless adjusting speed |
Auto count | 1—999 sheets |
Embossing | steel to paper embossing. Any LOGO, words etc. steel to steel or rubber optional NEW Embossing Technology available, to be discussed further. |
Printing
| 2 colors printing units. (flexo printing and changeable printing pattern). More colors printing available. |
Cluster ink net grain roller | |
Printing roller can be adjusted | |
Printing contraposition setting | |
In-phase belt, gear drive | |
Stainless steel | |
Back stand | Strong steel configuration |
One back stand | |
Power | AC380V 50HZ or 220V 60HZ or customized. |
Air pressure | 0.5 Mpa(buyer supply) |
Fully Automatic Transfer and Counting System | |
| Transfer system | Fully Automatic transfer the pocket tissue/paper handkerchief from the folding machine to the packing machine. NO need worker. |
| Counting system | Auto counting and shifting to the conveyor. |
| Automatic Pocket Tissue/Paper Handkerchief Single Bag Packing Machine | |
| Pack speed | 60-90 bag/min |
| Control system | PLC Touch screen Inverter control |
| Pack format | 8,9,10,12 pc/pack etc. |
| Automation | Fully Automatic |
| Optional | Labeling system Coding system for production date etc. |
| Automatic Pocket Tissue/Paper Handkerchief Multi Bags Bundling Packing Machine | |
| Pack speed | 15-25 pack/min |
| Pack format | 6,8,10,12 bag/pack in 2 rows or customized. |
| Control system | PLC Touch screen Inverter control |
| Automation | Fully automatic |
| More details like photos and videos available. Please contact us. | |
Below are more details of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.

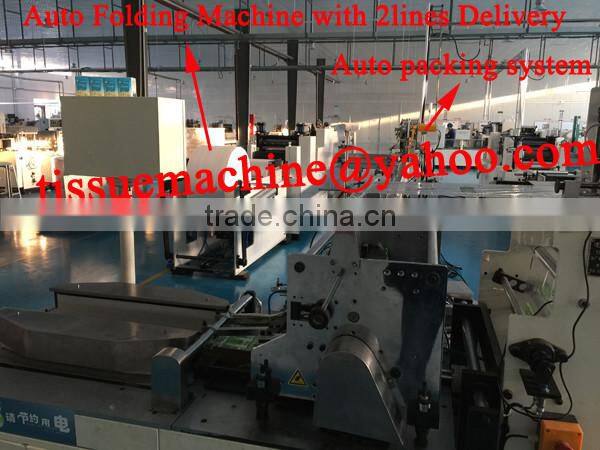

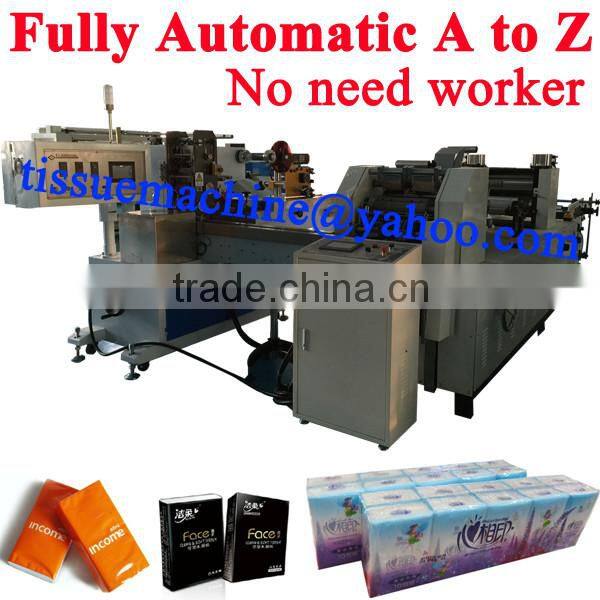

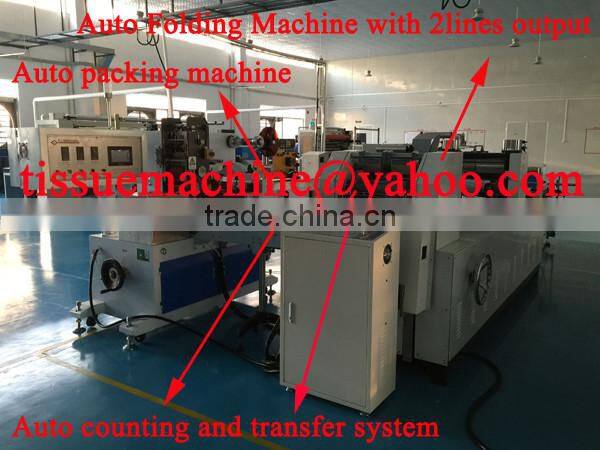

Actual photos of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line
Actual photos of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Lin
2Lanes Delivery of High Speed Automatic Handkerchief Making Machine.

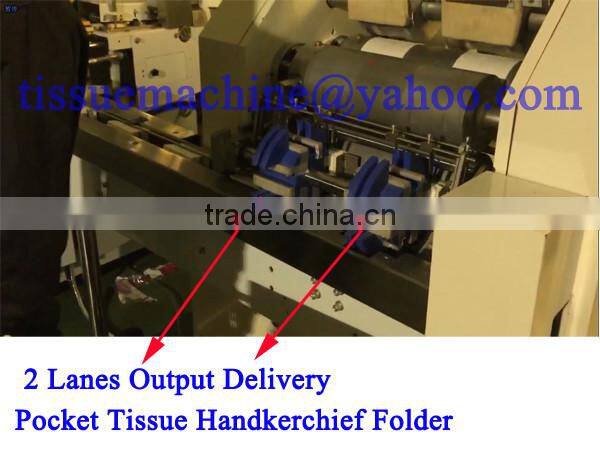

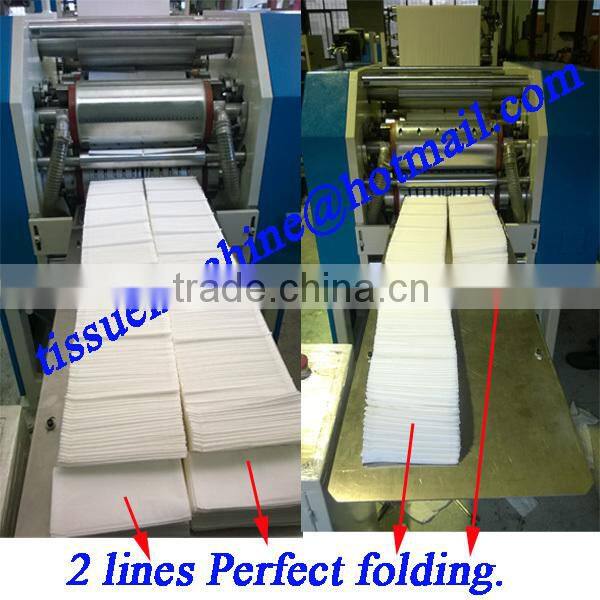

2 Lanes output delivery of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.

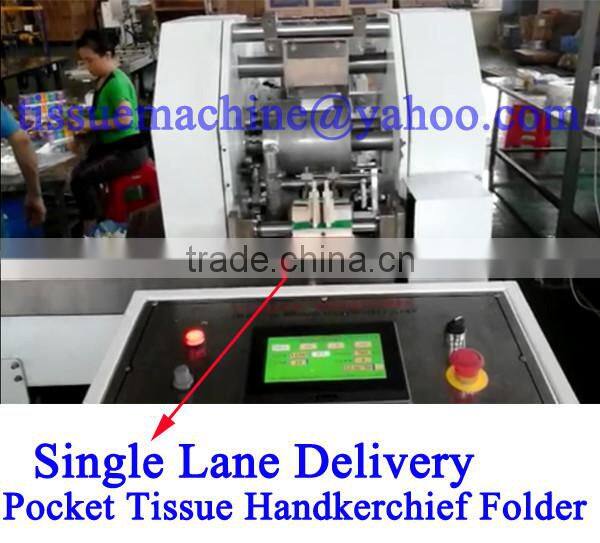

Single Lane output delivery of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.
Our No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line can be with 2 colors printing units. Each printing unit can be adjusted flexibly. Each printing unit is with Doctor Blade and covers to remove the surplus ink to ensure high speed running without ink spraying out of the ink tank.

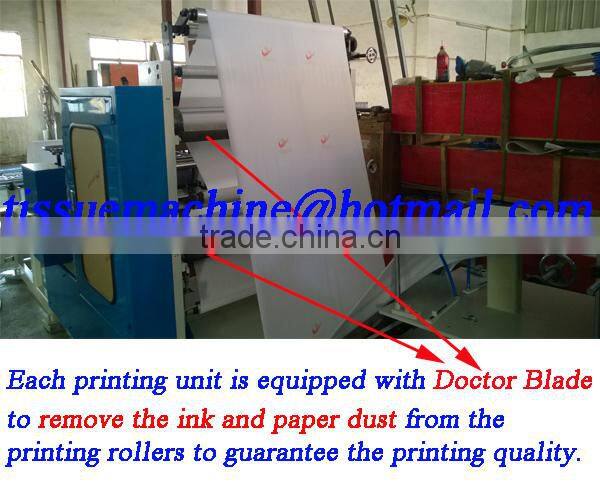

On the back side of the printing units of our No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line are also with Doctor Blades to remove the ink and paper dusts.

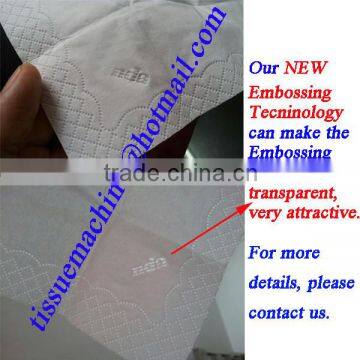

Below are embossing patterns made by the NEW Embossing Technology of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.
Embossing patterns of our No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line can be such LOGO, brand name etc. as shown below.

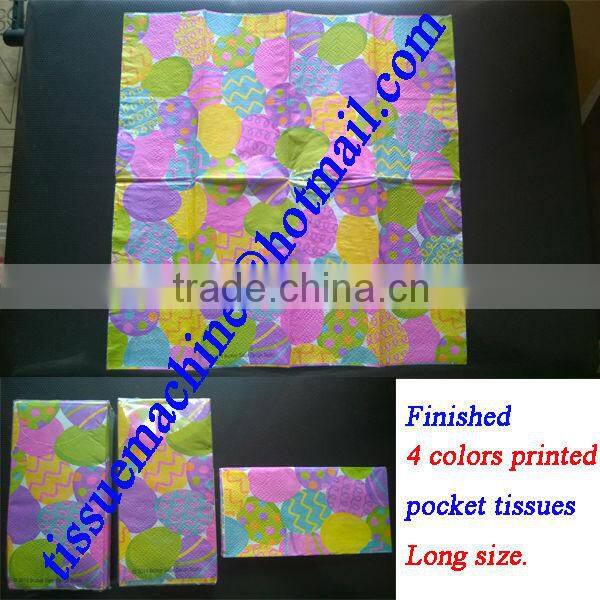

Final multi colors printed paper handkerchief / pocket tissue with longer size made by No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.

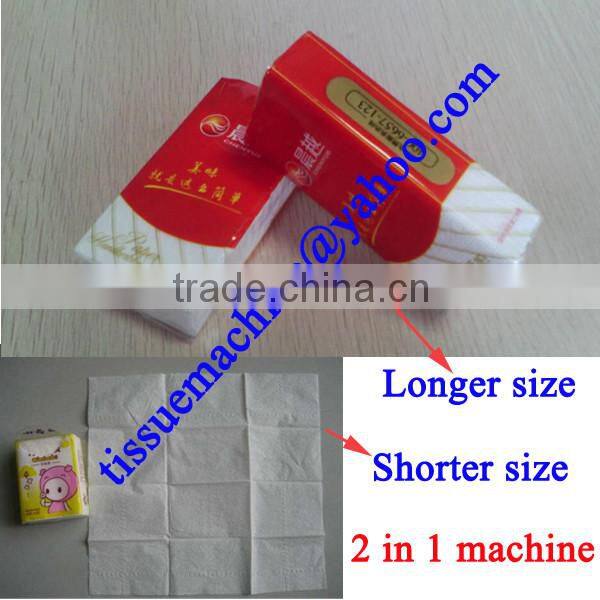

Final paper handkerchief/pocket tissue both long size and short size produced on one machine No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.

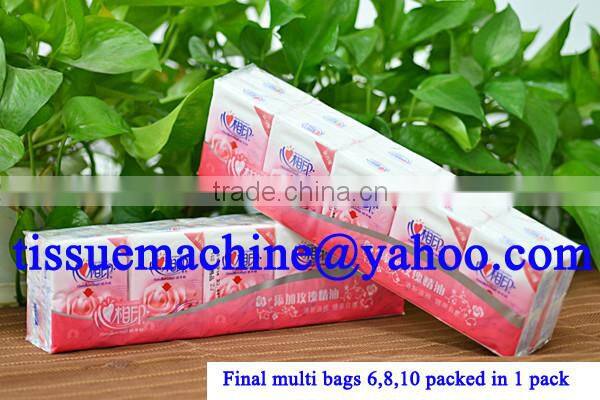

Final paper handkerchief/pocket tissue package made by our No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.

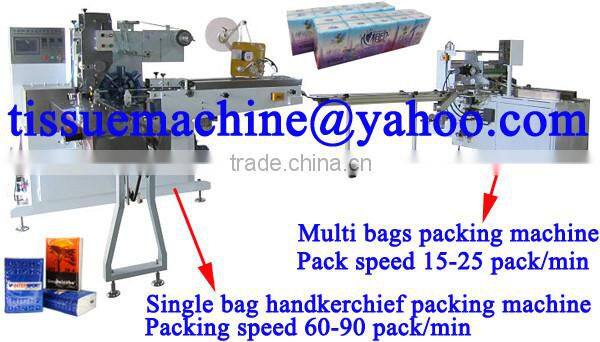

Sinle bag packing machine connecetd to multi bags bundle packing machine of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.

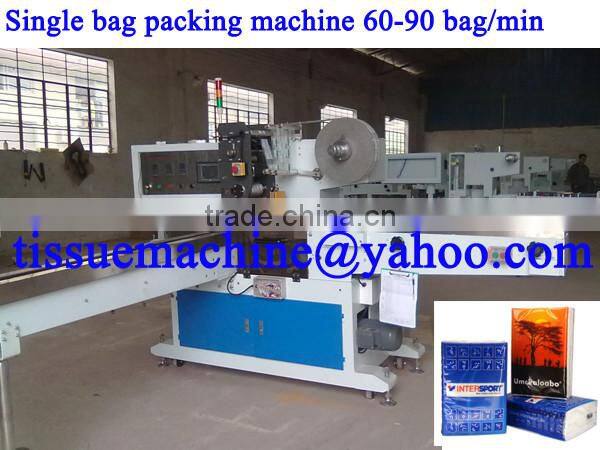

Sinle bag packing machine of No Need Worker A to Z Pocket Tissue Fully Automatic Handkerchief Machine Production Line.
