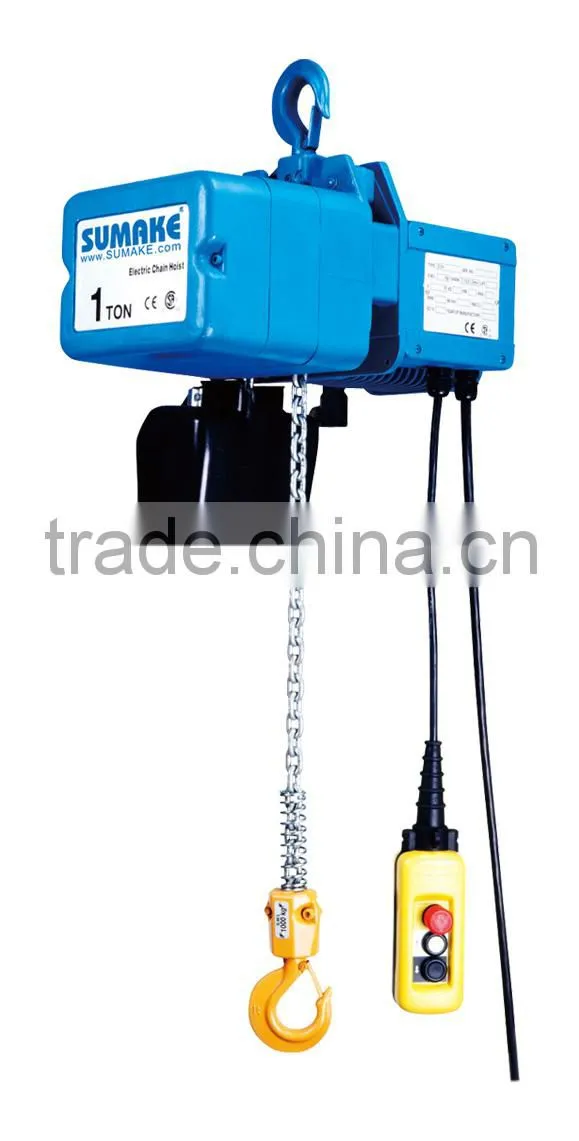

Heavy Duty Electric Hoists

Specifications

Heavy Duty Electric Hoists
* CE, CSA, UL approved
* Heavy duty class

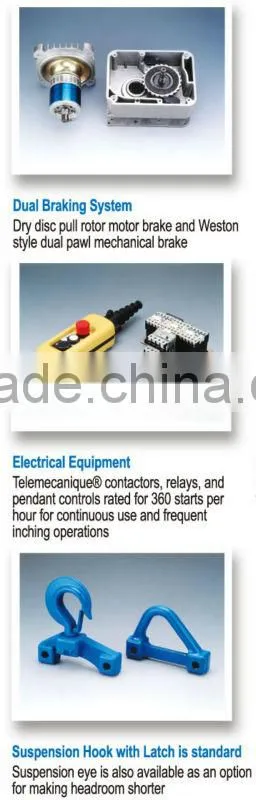

* Dual braking system



  Heavy Duty Electric Hoists



Features:

♦ Available in 3 phase/220v-660v/50Hz or 60 Hz, 1 phase/110v and 240v/50 Hz or 60 Hz.

♦ Low headroom design-optional load suspension eye reduces headroom even more.

♦ Sealed aluminum body is lightweight, compact and meets IP55 water/dust

  protection standard.

♦ Mechanical overload protection as option.

♦ German-made galvanized load chain for superior corrosion resistance.

♦ Pull-rotor motor brake provides reliable stopping even when power is disrupted.

♦ Secondary mechanical load brake engages instantly when operation is stopped

  and holds load safety.

♦ Dual braking systems allow use in the most demanding applications,

  including foundry work.

♦ Heavy duty class F thermal protection allows outstanding 60% Ed duty cycle.

♦ Short time continuous duty rating of 60 minutes.

♦ Contactors and pendant control rated at 360 starts per hour for the most

  demanding applications.

♦ Helical gears running in constant oil bath provide quiet operation, long duty cycle,

  and long life.

♦ Upper and lower limit switches protect hoist from damage.

♦ 48 volt pendant features up, down, and emergency stop buttons and is sealed

  for IP65 water/dust protection.

♦ Top and bottom hook safety latches standard.

♦ Bottom hook swivels 360 degree.

♦ Can be mounted along beam length or at right angle, allowing improved clearance

  near walls or ends of beams.

♦ Easy access to electrical components.

♦ Meets A.N.S.I B30.16 standards.

♦ Chain container standard.

♦ Custom lifts available.

♦ Easily converted for use with SUMAKE electric trolley.

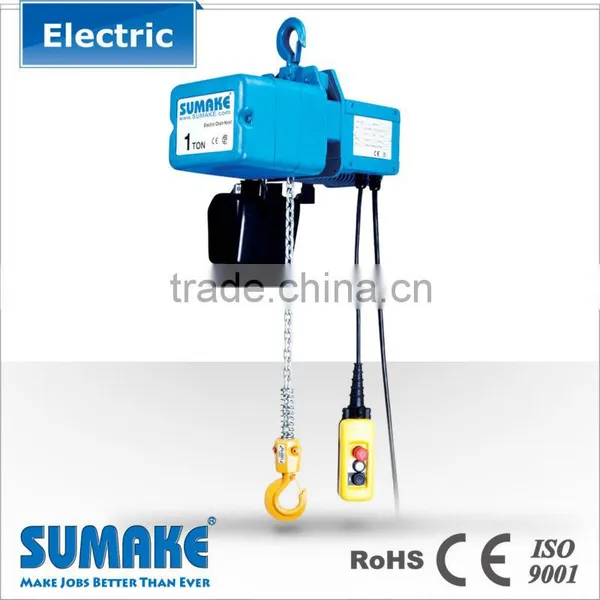

                               ECH-1000
                               ECH-2000

                                      -Heavy Duty Electric Hoists



Model No.	Rated Capacity (kg)	Standard Lift/Control Cable(M)	Operation Voltage (50/60Hz)	Motor Power (HP)	Lifting Speed (M/min)	Chain Dia./Falls No. (mm)	Duty-rate (ED%)	No. of starts per hour	International Protection (IP)	Insulation Class	Net Weight (kg)
ECH-1000	1,000	3/1.5	110V 1P	1.2	4.2	Ø 7.1/1	40%	240	55	F	68



 Packing: 10pcs/Ctn/16kg/1 cuft
