Specifications
Aluminum Body Trigger Start 7Nm Cushion Air Screwdriver- Easy to adjust torque
- Torque Range: 1~7Nm
- Noise Level: 76

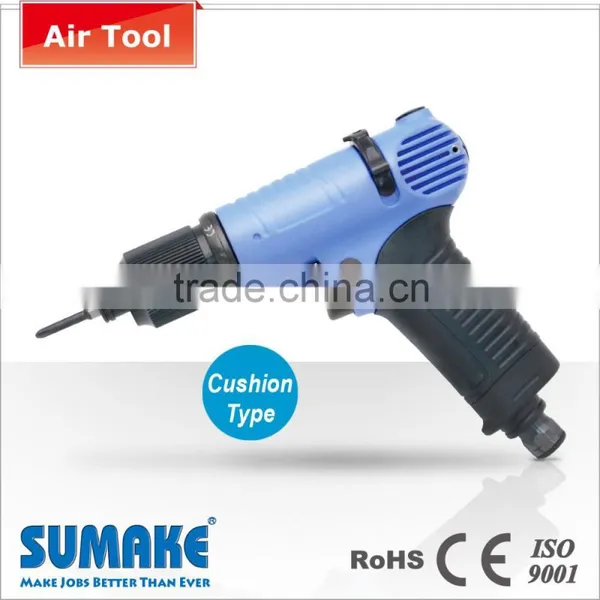

Aluminum Body Trigger Start 7Nm Cushion Air Screwdriver
SUMAKE engaging the design and manufacture of air screwdriver. From the user's point of view to plan the product map.
From the owner's point of view to calculate the efficiency of tool. Furthermore, base on accuracy, environment, technology and quality, SUMAKE owns several patents and awards. An excellent air screwdriver tool can increase not only efficiency but the quality.
SUMAKE air screwdriver has following 12 features:
1. Accuracy : SUMAKE provide patent clutch with 3% deviation of torque, assure the best quality.
2. Economic : Wide-ranging torque with many patent and longer life cycle of motor.
3. Delicacy : Combination of art, ergonomics and mechanical design.
4. Technology : Special mechanical structure and patent motor give you low noise, low vibration and high accuracy.
5. Honorary : Award "Excellent Tool" at Japan 2002 Osaka exhibition.
6. Soft resin ergonomic design with newest material : The weight is 25%~44% less than other brand.
7. Speediness 12. Friendly operation 11 . Flexible inlet design feature
Operator can change the bit Easy to switch the direction The air inlet direction can be option for
rapidly by push the bit head. by single hand. assembly line to get flexible space
(APP type only)
8. Trigger auto lock feature 9. Comfort 10. Vent in any direction
World first proprietary auto lock feature Pioneer for dual color grip with 360° vent available.
(APP type only) with the choice of PUSH anti-slide and visional external
or PUSH To Start (to avoid any damage to provide best balance and
on surface and more safety for operator) comfort in operation.
can increase the quality of screwing.
* Air Inlet could be 3 way option
ACPN39 ACPN48
<Small Body> <Standard Body>
-Light Weight
Model No. |
Drive |
Bolt Capacity (mm) |
Free Speed (r.p.m) |
Torque Range Soft Joint (N-m) |
Dimension (Ø xLxH) (mm) |
Air consumption |
Weight (g) |
Noise Level (±3dB) |
Min. Air Hose Bore (I.D.) |
|
cfm |
m³/min |
|||||||||
ACPN39 |
F1/4" |
2.5-5.0 |
1,600 |
0.5-5.0 |
36 x 140 x142 |
10 |
0.28 |
600 |
72 |
5 mm |
ACPN48 |
F1/4" |
3.0-6.0 |
1,700 |
1.0-7.0 |
43 x 165 x 154 |
19 |
0.55 |
870 |
76 |
8 mm |
ACPN is for trigger start only.
For More Air Screwdrivers, Please Click HERE!
Features:
♦ Guarantee the highest torque accuracy (±3% standard deviation).
♦ Easy to adjust torque.
♦ Air Motor System: alternation switch system.
♦ Greater Comfort for The Operator (Ergonomic and Soft Grip).
♦ Easy change of valve reverse (right/left) button turn direction can be done.
♦ Large Torque Range and Low Vibration Level: the new stagger rail motion
mechanism allows to obtain the low vibration level and large torque range.
♦ Air inlet could be Three way option.
