Specifications

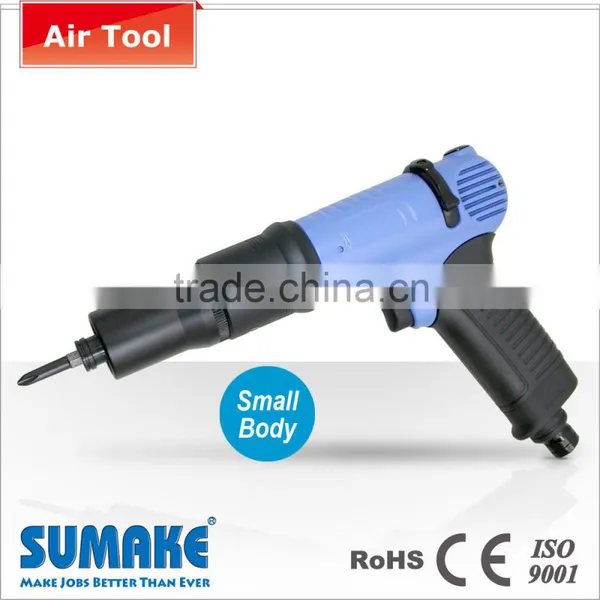

Industrial Production and Automotive Maintence tools Push or Push and Trigger Start shut off Industrial Screwdriver- Accurate
Industrial Production and Automotive Maintence tools Push or Push and Trigger Start shut off Industrial Screwdriver
Sumake is a global provider of air and pneumatic tools, assembly systems, ... Industry & Maintenance Tools · Workshop Equipment.
SUMAKE air screwdriver has following 12 features:
1. Accuracy : SUMAKE provide patent clutch with 3% deviation of torque, assure the best quality.
2. Economic : Wide-ranging torque with many patent and longer life cycle of motor.
3. Delicacy : Combination of art, ergonomics and mechanical design.
4. Technology : Special mechanical structure and patent motor give you low noise, low vibration and high accuracy.
5. Honorary : Award "Excellent Tool" at Japan 2002 Osaka exhibition.
6. Soft resin ergonomic design with newest material : The weight is 25%~44% less than other brand.
7. Speediness 12. Friendly operation 11 . Flexible inlet design feature
Operator can change the bit Easy to switch the direction The air inlet direction can be option for
rapidly by push the bit head. by single hand. assembly line to get flexible space
(APP type only)
8. Trigger auto lock feature 9. Comfort 10. Vent in any direction
World first proprietary auto lock feature Pioneer for dual color grip with 360° vent available.
(APP type only) with the choice of PUSH anti-slide and visional external
or PUSH To Start (to avoid any damage to provide best balance and
on surface and more safety for operator) comfort in operation.
can increase the quality of screwing.
* Air Inlet could be 3 way option
APP35 APP41 APP48 APP60
APP38 APP47 APP50 APP65
<Small Body> APP55 APP68
-Light Weight <Standard Body>
Model No. |
Drive |
Free Speed (r.p.m) |
Torque Range ±3% (Kgf-cm) |
Weight (g) |
Dimension Ø x L x H (mm) |
Air Pressure (Kg/cm²) |
Noise (±3dB) |
Min. Air Hose bore(mm) |
Air consumption (m³/min) |
Fastening Capacity |
|
Machine Screw Dia. |
Tapping Screw Dia. |
||||||||||
T |
2T |
||||||||||
APP35 |
F1/4” |
2200 |
3-20 |
690 |
33x195x150 |
6.0 |
72 |
5.0 |
0.28 |
M2.2-M4.5 |
M1.7-M3.5 |
APP41 |
F1/4” |
1000 |
5-35 |
690 |
33x195x150 |
6.0 |
72 |
5.0 |
0.28 |
M2.8-M5.2 |
M2.2-M4.2 |
APP48 |
F1/4” |
2200 |
10-60 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M2.9-M6.0 |
M2.6-M4.9 |
APP60 |
F1/4” |
550 |
30-110 |
1030 |
39x230x160 |
6.0 |
76 |
8.0 |
0.55 |
M5.0-M7.3 |
M4.0-M6.2 |
For More Air Screwdrivers, Please Click HERE!
Features:
♦ Patent motor: output power: 30% more than other brand.
♦ Low weight: All new patent mechanical design and grip material 25~44% lighter than other brand.
♦ New Aluminum alloy materials and the special rubber grip, the A-series tools possess better
lasting, wear-resisting and comfortable grasp properties.
♦ A-series have multi-start function: Push start / Push - Trigger start / Trigger start function.
♦ With three-direction air inlet: from Up / Bottom / Rear. User can change air-inlet direction per
demand and the tool is space flexible.
♦ Torque external adjustable best balance and easy operation.
♦ Low vibration,Low noise.
Application:
♦ Wood Screw
♦ Self-tapping Screw
♦ Soft Pull-up
Sales points/ Focus:
- Quality assurance
- Good after-sales service
- Favorable price
- Great variety of products
- OEM and ODM service provided
Contact
You can contact us at any time. Tel: 886-2-26593500
For further product info., welcome to visit our homepage:
