PP melt blown nonwoven fabric production line is an equipment that used to produce pp melt blown fabric which are widely used both in face mask and medical industry. And the principle of this equipment is as below:

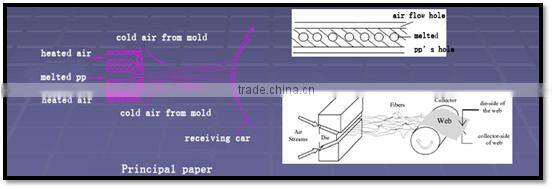

Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp materials are melt by heating through Extruder. Roots Blower blows the air into Air Heater and then the heated air will blow the liquid melted polypropylene materials through the Nozzle Heads (with hundreds of small holes in the mold), and finally threaded materials arrive at the Receiving car. Receiving car can be customized.
The micro-denier fiber (less than 0.1 denier per filament) is very fine, which only can be produced by melt blown process.It can not be used as nonwoven fibrous raw material alone but the appearance of nonwoven melt blown fabric solves this problem. Nonwoven melt blown fabric is anti-static, breathable, eco-friendly, soft, damp proof, recyclable, easy to shape, water and oil repellence, and antimicrobico.
Thchnique data
| Item | PP melt blown nonwoven fabric making machine |
| Mode | 1E1M |
| Electricity Consumption Total installed Power(kw) | |
| Roots Blower | 11 |
| Electricity Consumption Actual Running Power(kw) | |
| Roots Blower | 8 |
| Production Capacity | |
| Output | 300kg/24h |
|
Remark: 1.Room temperature affects the production capacity, 10~30℃ is highly recommended 2.But if temperature is around or little above 50degrees and we will have solution available | |
| Nonwoven Fabric Parameter | |
| Raw Material | 100% New Drawing-Class Polypropylene |
| Length | 500mm or 1000mm by default (free to customize) |
| Density | 15~30g/m2(free to customize) |
| Melting point | 160~165℃(free to customize) |
| Filtration | N95,N99,BFE99…(free to customize) |
| Strength | >=30Mpa |
| Other parameters | |
| Voltage | 380V/220V, charges applied if voltage changes |
| Frequency | 50HZ |
| Operation Area | 50m2(L*W)*3m (H) or above |
| Machine Weight | 2.6~3.5T |
| Container Size | 8~10 wooden boxes and use 20’’ container |
|
Remark 1.The property of the raw material refers to the MFI (melt flow index):230℃/2.16kg. 2.E=extruder; M=mold. | |
Spare Parts We Supply For Free:
| Heating loop inside of extruders | 4pcs | Sensor | 2sets |
| Heating pipe inside of air heater | 1pcs | Bearing | 1pcs |
| Temperature controller | 1pcs | Blade | 10pcs |
| Button | 2 each | Heating Gun | 1 set |
| Porcelain bead and line | some | Solid-state relay | 1pcs |
|
Water-oil separator for screw compressor |
1 set |
Machine-oil filter for screw compressor |
1 set |
| Air filter for screw compressor | 1 set | Insulated Pipe | 1pcs |
| Needles | 20pcs | Insulated asbestos | some |
| Filter Screen/Net | 1 set |
Main application of pp meltblown nonwoven fabric
(1) medical and health care cloth: gown, protective clothing, disinfectant fabric, face mask, diapers, women's sanitary napkin, etc;
(2) family decorative fabric: wall cloth, table cloth, bed sheet, bedspread, etc;
(3) industrial fabrics: filter materials, insulation materials, cement bags, nonwoven fabric and coated fabric, etc;
(4) the agricultural fabric: crop protection cloth, seedlings, irrigation cloth, insulation curtain, etc.;
(5) other: space cotton insulation, heat preservation material, linoleum, cigarette filter, bags, tea bag, etc.

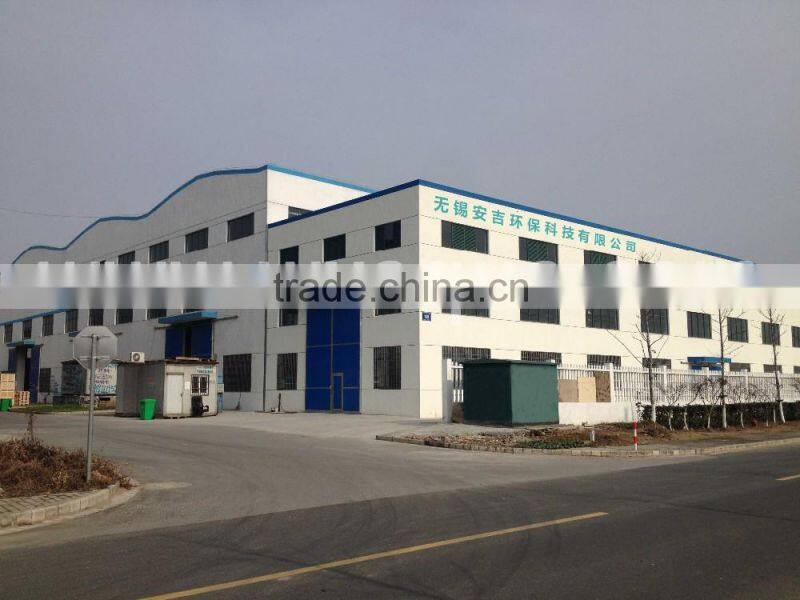

WUXI ANGE FACTORY:
Aquatech Shanghai:
CE certificate:

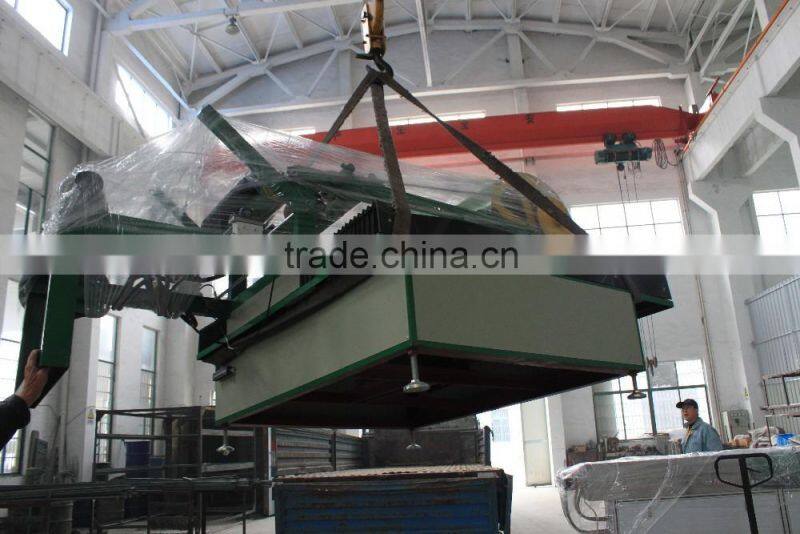

Packed by plastic film and wooden case.
After-sales service
We provide 1 year warranty; and our engineers will be available to overseas.
We also provide long-term technical guide by email or skype.
Training: 2 solutions.
1. Welcome to stay in our factory for a long-term training 7~14days until you master all the skills.
2. We provide an installing and training service to your factory in 7~14days until you master all the skills and you should take care of the plane ticket, hotel and living cost during this time.
Aquatech Sahnghai
Company profile
Wuxi ANGE Environmental Technology Company Limited is a professional manufacturer specializing in full automatic PP melt blown filter cartridge making machine. We excel at PP Melt Blown Filter Making Machine, PP string wound filter making machine, CTO active carbon block filter making machine and PP non woven fabric making machine with 20 years’ experience in machine design and filter making factory. We value the quality and the cost for clients very much, as well as providing unlimited long-term technical guide by email or Skype. It is our supreme honor to have clients in our factory for a visit. Customers around the world are always welcome with extreme hospitality.
Welcome to contact WUXI ANGE~!
