J23 Series Open-Type Tilting Power Press

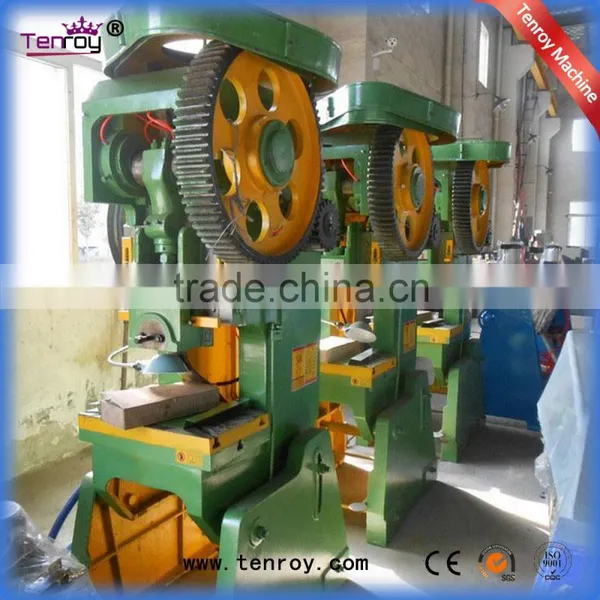

J23 Series Open-Type Tilting Power Press photo-1

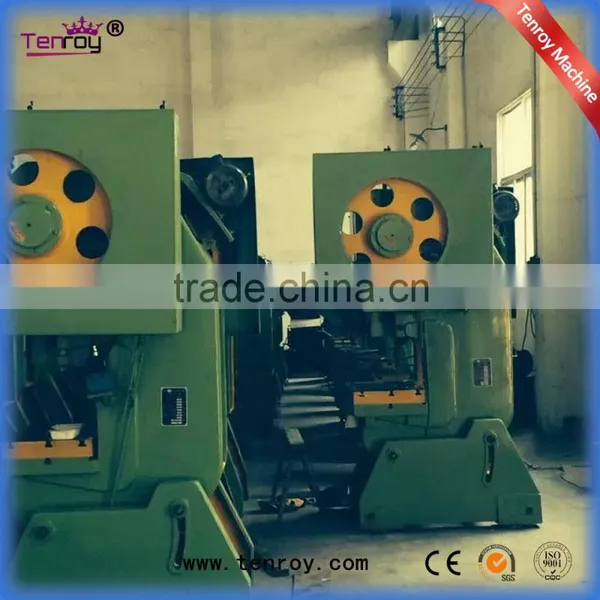

J23 Series Open-Type Tilting Power Press photo-2

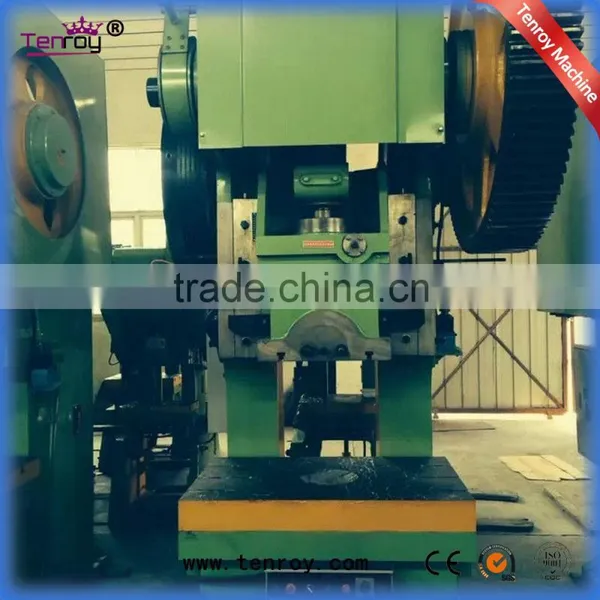

J23 Series Open-Type Tilting Power Press photo-3
US$ 100 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
TENROY
Model Number:
J23-10
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Anhui, China
Brand Name TENROY
Model Number J23-10
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Introduction

J23 series power presses are general open tilting style with simple structure, convenient operation and reliable performance. J23-25A, JG23-35A, JG23-40A, JC23-63A, J23-80A adopt the rigid turn key type clutch which is convenient to maintance. For the types that include “A” are safe stype power presses which are equipped with emergency braking device so as to make the slide scram in the range of 0-135 degree and to configure photoelectric protection device. J23-100B, J23-125 adopt cast iron body, the crankshaft set longitudinally and eccentric sleeve structure form adjustable pheumatic friction clutch which work stably, make little impact and can stop the slide at any position.

Specifications
Model
J23-10T
J23-16T
J23-25T
J23-40T
Nominal pressure (kn)
100
160
250
400
Slide stroke (mm)
50
65
70
100
Strokes (per min)
145
125
55
50
Max. blockade height (mm)
220
245
235
350
Blockade height adjustment (mm)
55
65
65
70
Distance from block center to frame (mm)
150
175
210
220
Thickness of underlaying plate (mm)
45
40
55
65
Distances between uprights (mm)
200
220
240
280

Worktable dimensions
Front to Back (mm)
280
330
350
405
Left to Right (mm)
420
495
550
670
Dimensions of ram bottom surface
Front to Back (mm)
135
170
200
190
Left to Right (mm)
160
195
230
290

Dimensions of die shank hole
Diameter (mm)
38
40
40
40
Depth (mm)
55
60
60
75
Max. inclination degree (°)
25
20
20
20
Motor power (kw)
1.5-4.0
1.5-6.0
2.2-4.0
4.0-6.0

Machine Dimension
L (mm)
895
1250
1345
1500
W (mm)
713
900
950
1150
H (mm)
1653
2000
2130
2470
Gross weight (kg)
705
1055
1380
2700

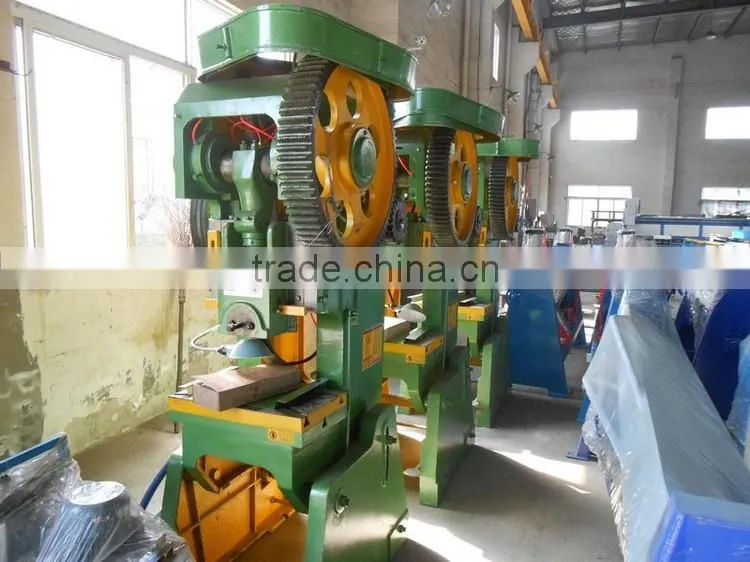

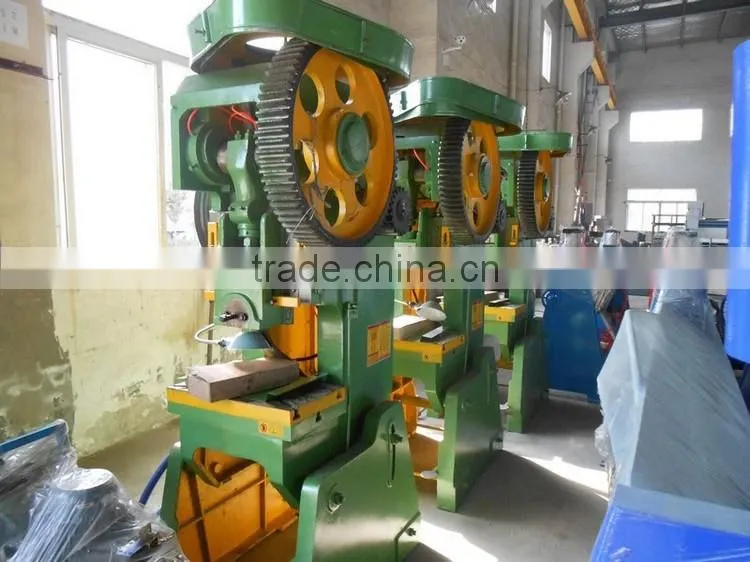

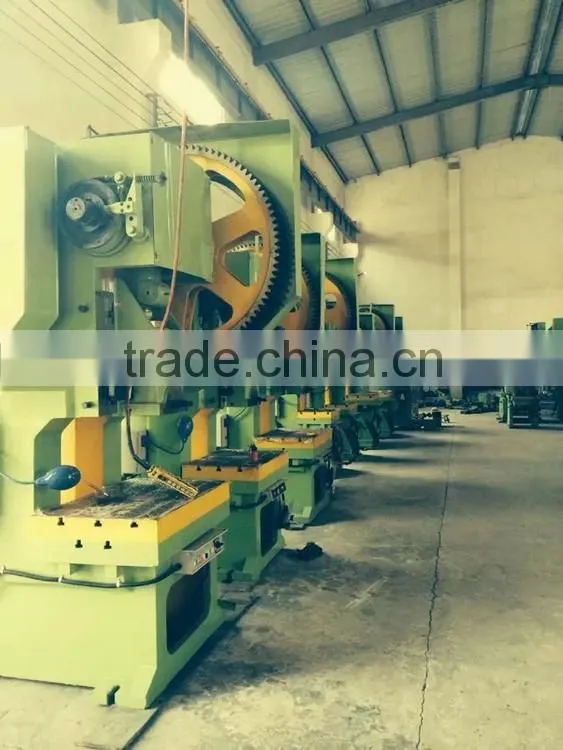

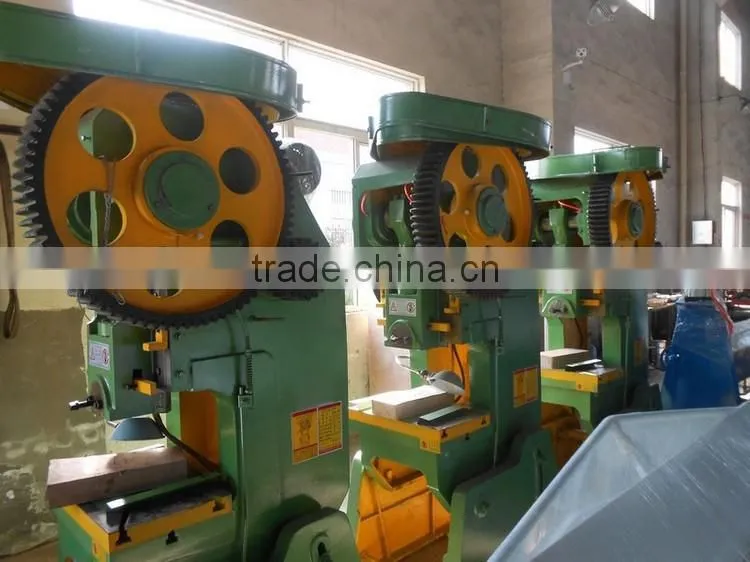

Factory View

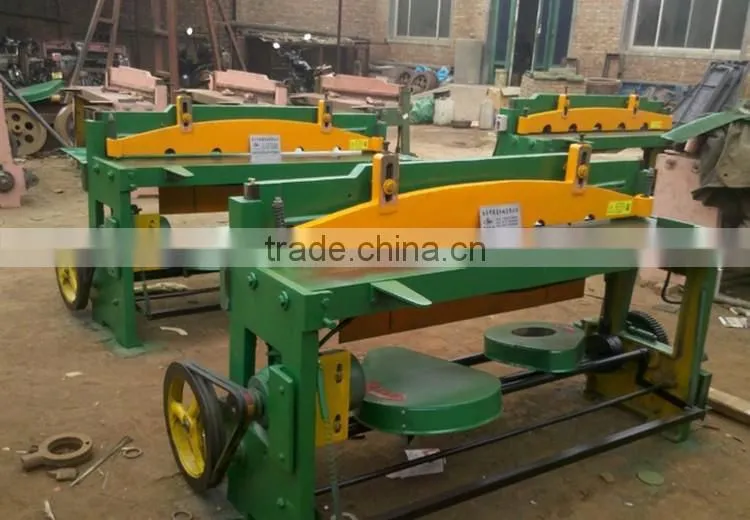

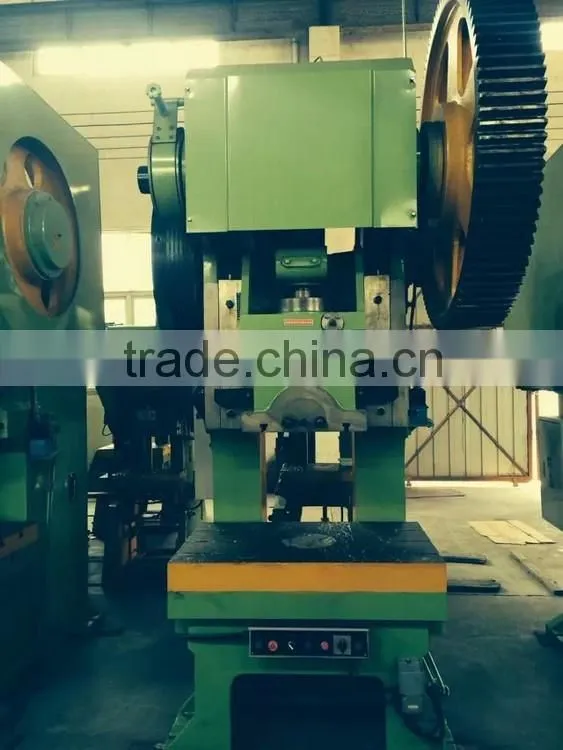

Other Images
Our Service

☆ Quantity
MOQ:Accept small order, big order and mix order.
More quantity, More discount.

☆ Price
Good quality, competitive price.
The more you order, the lower price you will get.

☆ Delivery
Fast delivery time: Prepare the goods within 20 working days.
Drop shipping: Door to door service are available.

☆ Shipment & Payment
Shipment: By sea,by air,by express, or we can delivery them as you required.
Payment: L/C, T/T, PayPal, Western Union are available.

☆ Competitive Advantages
Quality guaranteed and most reasonable price.
Small order is acceptable.
Prompt delivery.
Perfect after-sale service.
OEM is acceptable.

☆ After Sales Service
One year warranty for the whole machine!
Damaged parts can be replaced free of charge in the warranty period!
Accept the unconditional return for any quality problem that cause failure application of the machine!

Packing & Delivery
Packaging
Size
895*713*1653mm
Weight
705kgs



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
