Specifications
Advertising CNC router CC-1212 makes kinds of advertisement decoration products, characters of any language and graphics on gifAdvertising sign making CNC router CC-1212 with long time working and high precision
Model: 1212 MT (working area:1200*1200*200mm)
1. Applicable area:
This machine can be used for Stone, Brass and AL Processing, mold manufacturing, wood processing, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, as well as stamp and PCB drilling.
2. Main parameter
1) Machine body: welded seamless thick square tube
2) Working dimensions(X x Y x Z): 1200 x 1200 x 200mm
3) Body dimensions: 1400 x 14000
4) Max. Feeding height: 200mm
5) Cutting thickness of material: <20mm
6) Driver type: Stepper motor
7) Blade diameter: 3.175mm, 4mm, 6mm (optional)
8) Control system: DSP handle
9) Running circumstance temperature: 0 - 45
10) Relative humidity: 30% - 75%
11) Spindle Motor: 1.5kw water-cooled spindle motor
12) Stepper: Stepper motor
13) Drive mechanism :round orbit and ball screw
14) Resolution: 0.01mm
15) Motion Speed 4,200mm/min
16) Max engraving speed 3,000mm/min
17) Rotating Speed of Spindle: 0~2,4000rpm
18) Dictate Format :G code
19) Operating voltage: AC220/50Hz

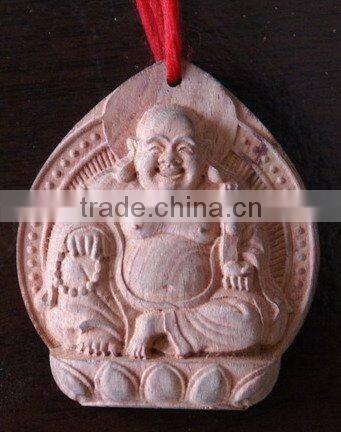

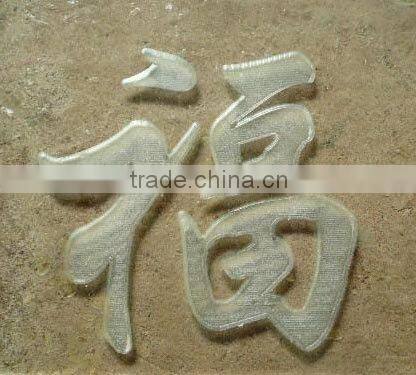

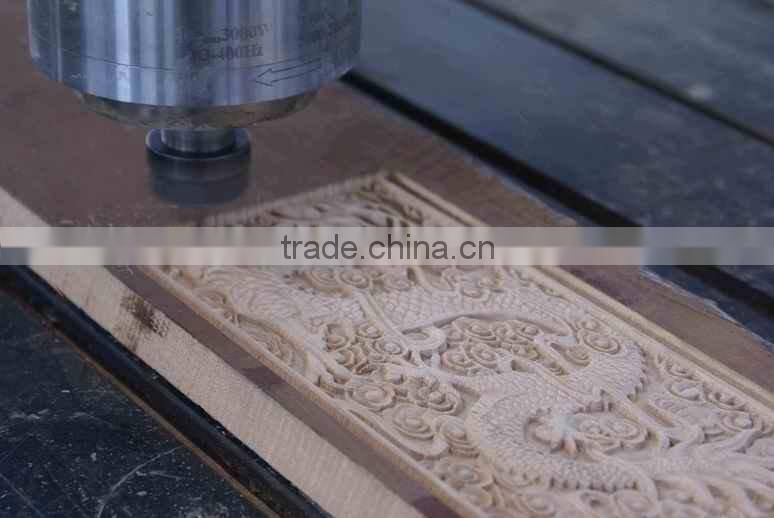

20) Soft ware Type3 original with dongle / Wentai software For more details. pls contact us without hesitation! products made by this machine:
PARAMETERS
|
NO. |
Functions |
. |
Parameter |
1 |
Traveling size |
X traveling size |
1200mm |
Y traveling size |
1200mm |
||
Z traveling size |
200mm |
||
2 |
Table size |
|
1400 x 1400 mm |
3 |
Accuracy |
Working accuracy |
±0.05mm |
Repositioning accuracy |
±0.05mm |
||
4 |
Structure |
Lathe body |
Thick square tube |
X,Y,Z structure |
X,Y Z German-made ball screw |
||
5 |
Speed |
Max. working speed |
14m/min |
6 |
Spindle |
Spindle power |
2.2KW |
Spindle speed |
24000r/min |
||
7 |
Working mode |
|
Stepper |
8 |
Working voltage |
|
AC220V/50Hz |
9 |
Working command |
|
G code, HPGL, UOO, MMG,PLT |
10 |
Operating system |
|
DSP handle |
11 |
Cooling mode |
|
water-cooling(optional: air-cooling) |
12 |
Dust-collect function |
|
Yes |
13 |
Diameter of cutters |
|
φ3.175-φ12.7mm |
14 |
working table |
|
T-slot |

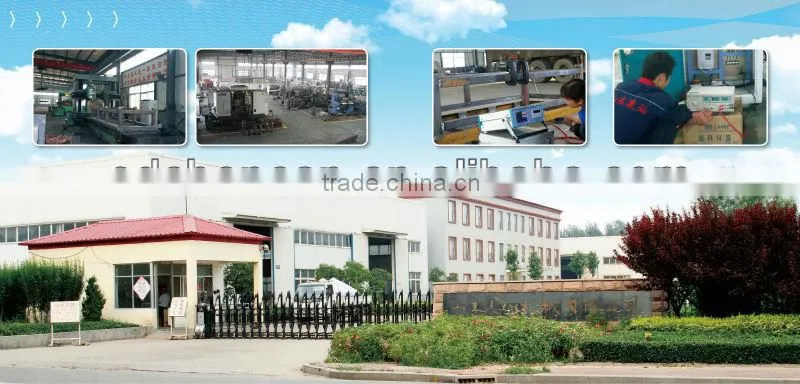

WELCOME TO VISIT OUR FACTORY
