Specifications
High Precision CNC router machineWe are capable of designing machine as particular specification.
3 axis engraving machine and cnc cutting router for number plate making
Features:
1. It has been set the function of plane carving and cylinder engraving, very practical and economic. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
2. Three axes adopt imported high precision Taiwan square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts
Germany-made ball screw,with high precision and long life time.
3. The rotary is used for engraving cylinder work piece. It adopts chuck and thimble structure, which can make sure that the working machine has a high precision.
4.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5. Has the function of re-carving after break point and power failure.
6. Has the function of forecasting process time.
7. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
9. Adopting high-torque servo motor and driver, with steady working capability and high positioning precision.
Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Used for processing cylinder, such as cylindrical furniture, armrest of stair, cylindrical musical instrument.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect:
Our router may carve various kinds of shade vulture, relief, craft and gift.
Technical Specifications
Description |
Parameter |
X,Y working area |
1200*1200mm |
Z working area |
200mm |
4th rotary axis diameter |
300mm |
Table size |
1320*1320mm |
Resolution |
0.01mm |
Lathe structure |
Seamless welded steel structure |
X,Y structure |
Rack and pinion transmission, Taiwan-made Linear orbit |
Z structure |
Germany-made ball screw |
Max. idling speed |
35m/min |
Spindle motor power |
3KW |
Spindle rotate speed |
0-24000r/min |
Working voltage |
AC380V/50Hz or AC220V/60Hz |
Working mode |
Servo |
Command |
G code,HPGL,U00,mmg,plt |
Operating system |
DSP(with separate operation cabinet) |
Interface |
USB |
Flash Memory |
128M |
Diameter of cutter |
φ3.175-φ12.7 |
Cooling mode |
Water-cooling |
Dust-collect function |
Yes |
Work-holding |
By clamp |
|

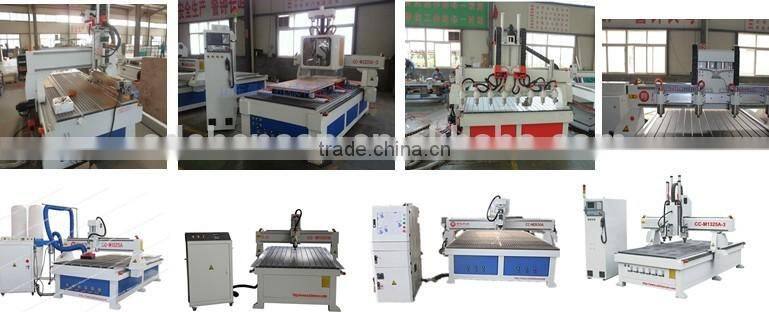

Welcome to visit our factory!
