Wood Working CNC Router machine with Rotary Aixs CC-M1212 G

Specifications

Wood Working CNC Router with Rotary Aixs CC-1212 k:
having two functions: planar process and processing cylindrical materi

 Wood Working CNC Router machine with Rotary Aixs

CC-M1212 G



The complete "turn key" wood working engraver on the market.  absolutely everything needed for operation:

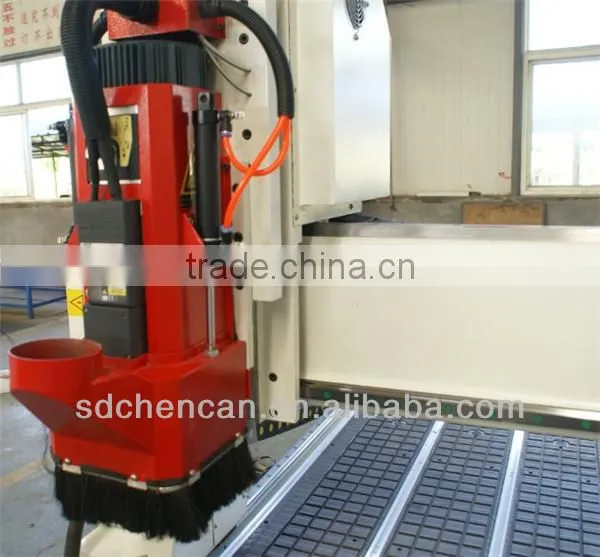

 1.Large power frequency water cooling spindle can cut into 20m to 30m organic glass once.

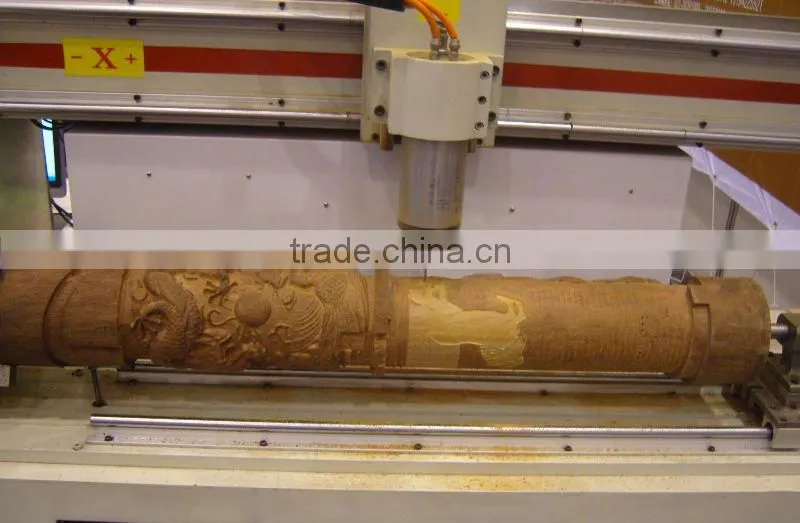

2.rotary is used for engraving cylinder work piece. It adopts chuck and thimble structure, which can make sure that the working machine has a high precision.

3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed. Lath body is fabticated by ourselves to make sure good quality and low price

4. Three axes adopt imported high precision circle orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw,with high precision and long life time.



5. Adopting high-torque stepper motor and driver, with steady working capability and high positioning precision.







6. Operation system adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.







7. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.







8. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.

sample:











NO.	Functions		Parameter
1	Traveling size	X traveling size	1300mm
		Y traveling size	2500mm
		Z traveling size	300mm
2	Table size		4600 x 2640 mm
3	Accuracy	Working accuracy	±0.05mm
		Repositioning accuracy	±0.05mm
4	Structure	Lathe body	Thick square tube
		X,Y,Z structure	X,Y rack and pinion ;Z ball screw
5	Speed	Max. working speed	35m/min
6	Spindle	Spindle power	3.0KW / 4.5kw
		Spindle speed	24000r/min
7	Working mode		Stepper
8	Working voltage		AC380V/50Hz
9	Working command		G code, HPGL, UOO, MMG,PLT
10	Operating system		DSP handle
11	Cooling mode		water-cooling(optional: air-cooling)
12	Dust-collect function		Yes
13	Diameter of cutters		φ3.175-φ12.7mm
14	Clamping mode		By suction(optional)



CERTIFICATION:





FACTORY











NOTES

1, Price changes according to the quantity and different spare parts. Packing, Payment and Delivery time also affected.

2, We provide software freely and the warranty time is one year.CE & ISO Certificate is available. And we can make CIQ and C.I. according to your import needs.

3,Trust us, we can provide cnc routers with the best quality and after-sale service and timely delivery.

4, Our engineer is online for 24-hours at your service.

5, If you are not sure which machine is more suitable for your work, please kindly tell us the details of your material and what you want to make, so we can recommend you a right machine.
