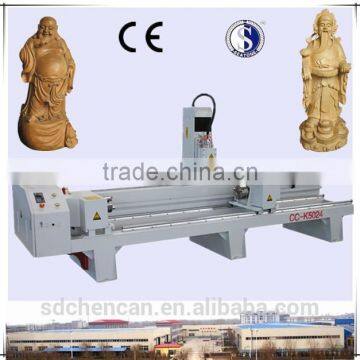

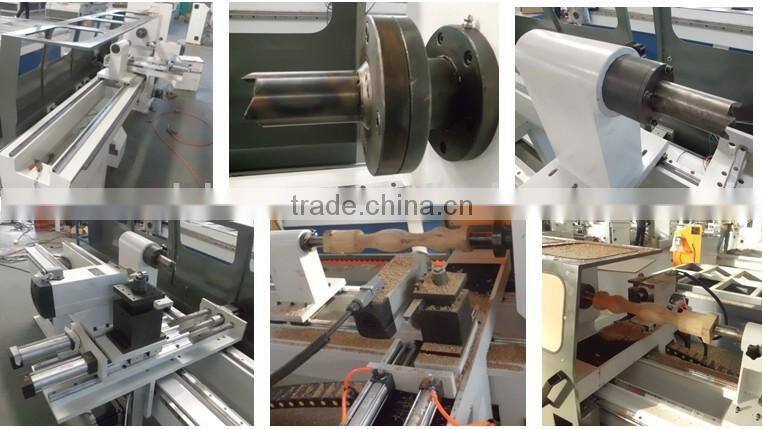

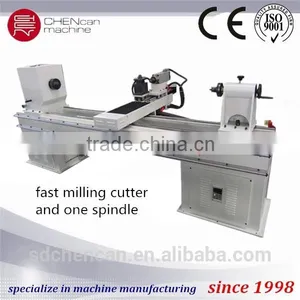

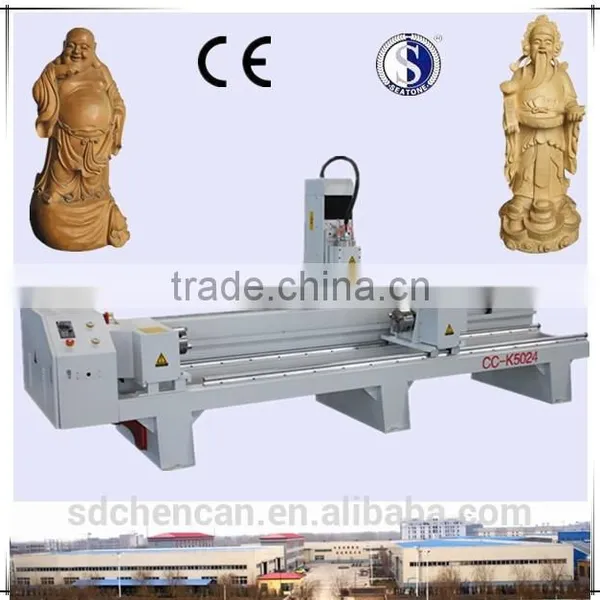

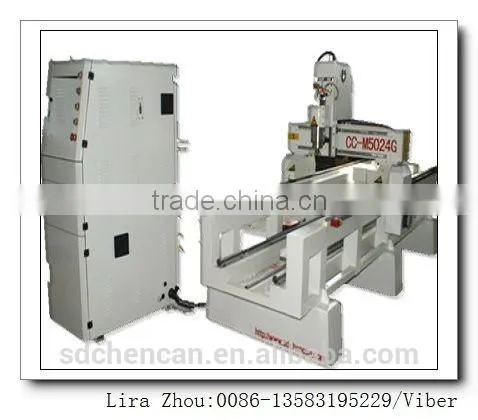

CNC mini lathe engraving/making machine professional to do wood cylinder work model CC-K3015
Wood cylinder diameter 300mm length 1500mm

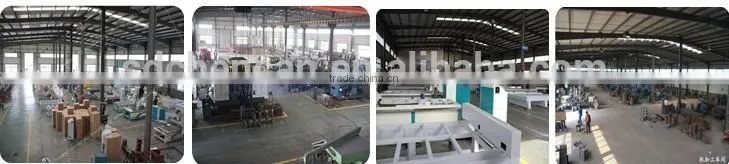

Our company has powerful strength in Machining. In order to make sure every detail's high quality level,
most of the machine's metal parts are made by our own Machining Center imported from American.
Detailed Features:
1. With which can do any cylinder's engraving and cutting, milling, the processed cylinder diameter can be up to 300mm, length can be 1500mm.
2. With Scanner or designed photo, it can do any 3D Engraving
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

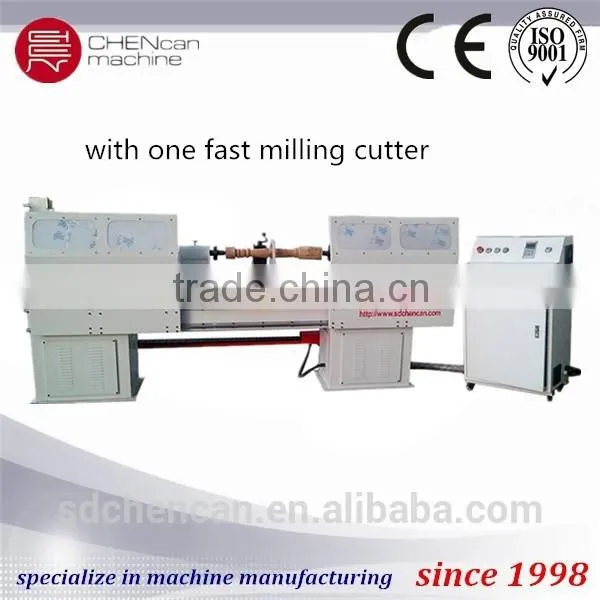

4.Cutter do fast milling first,and then with 3.5kw air-cooling spindle ,it can do careful engrave.
5.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure.
7. Adopting advanced DSP system with USB connection, operated with the handle
Technical Specifications
Description |
Parameter |
Optional parameter |
|
diameter
|
200mm |
150mm, 300mm |
Machine package |
900mm*1750*950mm |
|
Resolution |
0.01mm |
|
Lathe structure |
Seamless welded steel structure |
|
X,Y structure |
Rack and pinion transmission, Hiwin square guide rail |
|
Z structure |
Imported ball screw |
|
Max. idling speed |
35m/min |
|
Spindle motor power |
3.5 KW |
4.5kw |
Spindle rotate speed |
0-18000r/min |
|
Working voltage |
AC380V/50Hz |
220v |
Working mode |
Stepper |
|
Cooling mode |
Air-cooling |
|
Dust-collect function |
Yes |
|
|
|
Applicable industries:

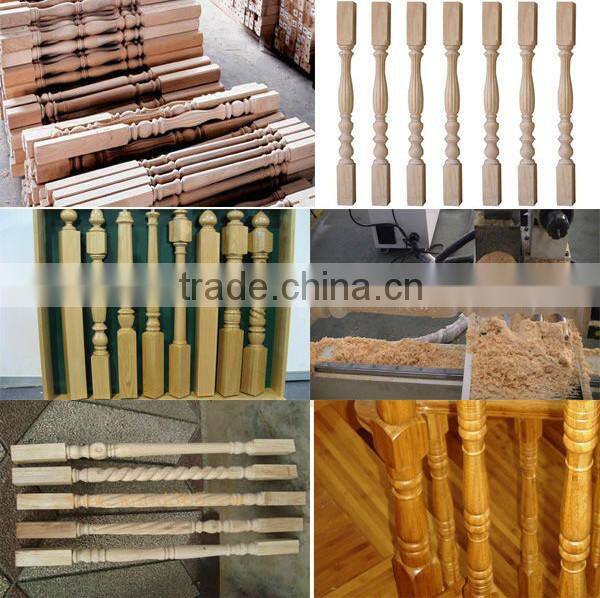

Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.

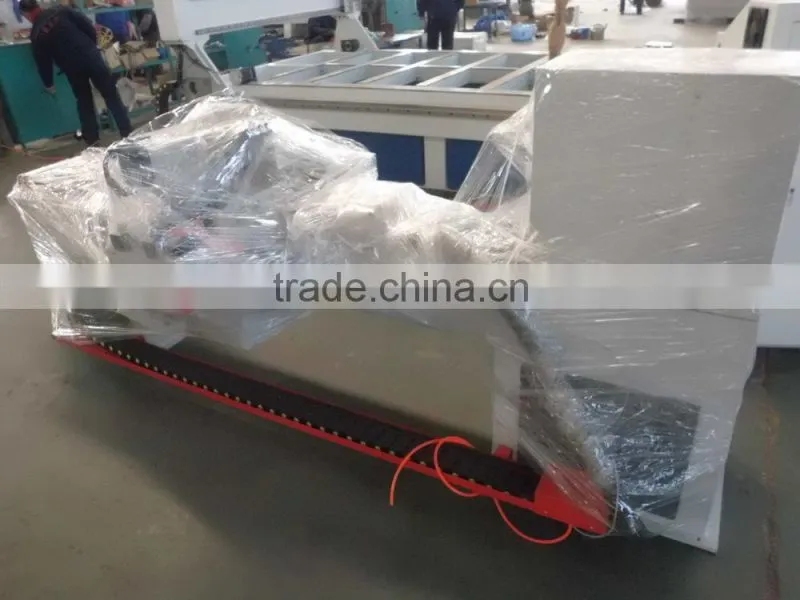

Standard exported Wooden case
Shandong Chencan Machinery Incorporated Company
ADD: West Mingjia Road, Qihe Economic Development Zone, Shandong Province, China
Tel: 0086-534-8997216 Fax: 0086-534-8997237
Website: www.
INDUSTRY PROFILE
Built 1998,16 years manufacturer and aboard after-sale service experience of CNC Machinery.
All products have obtained the Euro CE and ISO 9001:2008 Quality Certificate.
ANY QUESTIONS,Please contact:
Lira Zhou
Export manager
Skype:c
QQ:1028875298
TradeManager ID:cn220191925
Viber/WhatsApp ID:0086-13583195229/15066605986
Facebook/Linkin/Wechat ID:Lira Zhou.
Other machine details:
1325 wood working machine /4 axis Moulder /Plasma cut machine / Simple ATC / Stone engrave machine /
3D scanner / 3D 8 spindle machine/
For more videos,please contact us or check:
/channel/UCfmka-Peo9RQxG1PDkhrgxg/feed
If you interested in any model,please send us inquiry,Details info with machine picture will send to you sooner!
