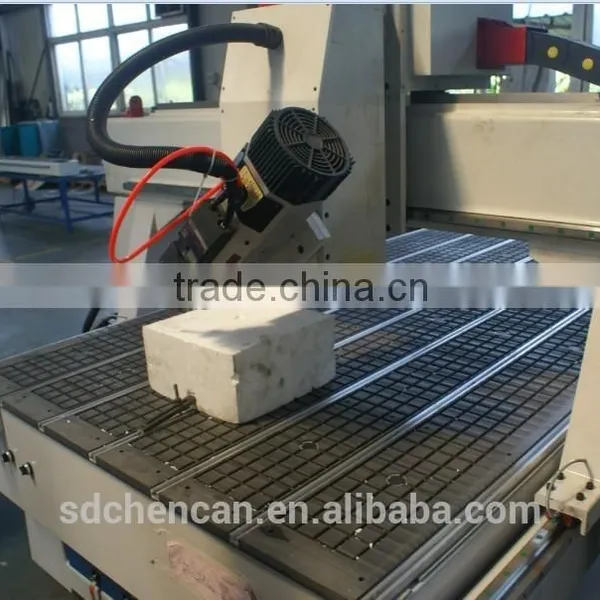

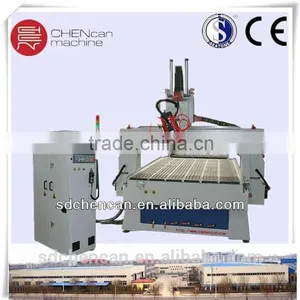

4 axis mdf machine with rotation spindle and 200mm diameter rotary axes
- 40 Set / Sets per Month
- qingdao port
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | CHENCAN | Model Number: | CC-MS135AC | Voltage: | AC380V/50Hz or AC220V/60Hz |
Power(W): | 17kw | Weight: | 2000KG | Certification: | CE,ISO |
Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Furniture making machineAuto-tool changer
Rotary device 200mm diameter
Japan Yaskawa servo mode
9kw HSD spindle
4 axis mdf machine with rotation spindle and 200mm diameter rotary axes
Model :CC-MS1325AC
Detailed Features:
1,Model:CC-MS1325AC, working area is 1300mm*2500mm*300mm.
2,Linear Auto Tool Changer function with 6/8 piece tool storage, it can change 1--8 piece different tools at the same time .
3,.Rotary axes 200mm diameter with 1500mm length,do wood cylinderical work.
4. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
5.Four sets servo motor and Taiwan Syntec control system.
6. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency. Z axis adopts ball-screw and Taiwan Hiwin H30square orbit, with high precision and longevity.
7. Vacuum System with :vacuum table with vacuum pump,
8.High soft, famous brand electric cables, with high Abrasion, fold, high temperature , acid and alkali resistant .
9.All workstage is strictly processed according to Euro CE Quality Standard and ISO Quality Standard.
10.All set CNC Router will be done at least 72 hours careful testing and checking, from small part to the whole machine .
We also provide 3D scanner if you need.

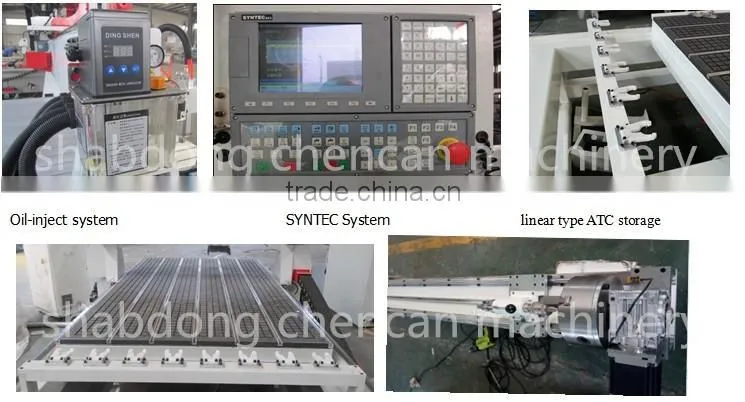

Machine Mainly parts:
Technical Parameter:
Lathe body | Seamless welded steel structure |
X Y Z effective working area | 1300*2500*300mm |
Working table | T-Shape Vacuum table with T-Slots for fixing clamps |
Spindle Rotate Speed | 0-24000r/min, variable speed |
Rotary axes | 200mm (diameter)*1500mm (length) |
Spindle power rate | 9 KW ATC Air-cooling Spindle |
Inverter | DELTA |
X,Y structure | Rack and pinion transmission, HIWIN 30mm square guide rail |
Driver | Japan YASKAWA Servo |
Vacuum pump | TONGYOU brand |
Operating system | Taiwan-made Syntec system |
Software | Type 3, ArtCam,UG |
Vacuum Pump | 5.5KW 3-phase |
Diameter of cutter | φ3.175-φ20 |
Cutter quantity | 6-8 pieces Linear style ATC system |
Applicable industries:
- Ø Wood processing: processing of various furniture such as door, window, cabinet, craft wooden door, screen and so on.
- Ø Advertisement: engraving and cutting various labels and number plate.
- Ø Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 7-22 days after receipt of advance payment.
Package:Export High-quality Standard Fumigation-free Wooden Case for wood cnc router
(As for the package,for 1300mm*2500mm working size,all the assembling and installation is finished in our factory ,we use High-quality Standard Fumigation-free Wooden Case,then a 20’container is OK,if pacakge width exceed 2.1m,gantry should be removed)
Shandong Chencan Machinery Co., Ltd
ADD: West Mingjia Road, Qihe Economic Development Zone, Shandong Province, China
Tel: 0086-531-88078568 Fax: 0086-531-88078968
Website: www.
INDUSTRY PROFILE
Built 1998,16 years manufacturer and aboard after-sale service experience of CNC Machinery.
All products have obtained the Euro CE and ISO 9001:2008 Quality Certificate.
Service and Guarantee |
Technical supports and suggestions before you order a machine according to your work piece. |
Professional instruction for the operation of the machine. |
One year warranty, we will provide the consumable parts at cost price after the warranty period. |
Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. |
24-hour technical support by email or calling. |
ANY QUESTIONS,Please contact:
Lira Zhou
Export manager
Skype:c
QQ:1028875298
TradeManager ID:cn220191925
Viber/WhatsApp ID:0086-13583195229
Facebook/Linkin/Wechat ID:Lira Zhou.
Working video link
1 1325 standard size with a big rotary device link: http://youtu.be/0VQObJnFVvU
2 8 spindle with 8 rotaries machine link: http://youtu.be/OE3T4iikzhk
3 4 axis three spindle machine link: http://youtu.be/8z5E3ruoRLs
4 Carousel ATC machine working link: http://youtu.be/FbJ1iHR-Uk4
5 Linear type ATC machine with rotary device working link: http://youtu.be/CI5JkWwk-Ww
6 Stadard 1325 plasma machine link: http://youtu.be/hVqR7dhjkiQ
7 Plasma machine with spindle rotary device working link: http://youtu.be/bwhyGW2jMbg
8 Multipefunction machine with driller and saw head link: http://youtu.be/l7kNnHQAmWY
9 2524 big Mould machine with big rotary device working link: http://youtu.be/fgfiJAVyI0Q
10 3D scanner working video link: http://youtu.be/rRxW3nT4C64
