China CNC Mini Lathe Engraving/making Machine and Distributors Wanted Model CC-K1520

China CNC Mini Lathe Engraving/making Machine and Distributors Wanted Model CC-K1520 thumbnail-1
China CNC Mini Lathe Engraving/making Machine and Distributors Wanted Model CC-K1520 photo-1
US$ 4,000 - 6,666 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Shandong Chencan Machinery Incorporated Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name CHENCAN
Model Number CC-K1520
Voltage AC380V-/220V-Three Phase (Optional)
Power(W) 5kw
Weight 500KG
Certification CE,ISO
Warranty 1YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

do fast cutting first then with 3.5kw spindle,do normal engraving.
DSP control system

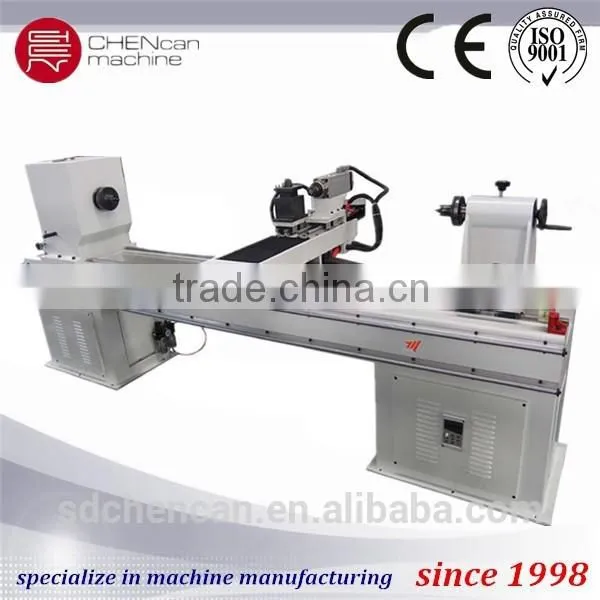

Professional cylinder working lathe

 Our company has powerful strength in Machining. In order to make sure every detail's high quality level,

most of the machine's metal parts are made by our own Machining Center imported from American.


Product Description



Detailed Features:

1. With which can do any cylinder's engraving and cutting, milling, the processed cylinder diameter can be up to 300mm, length can be 1500mm.



2. With Scanner or designed photo, it can do any 3D Engraving



3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.



4.Cutter do fast milling first,and then with spindle ,it can do careful engrave.



5.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.



6.Has the function of re-carving after break point and power failure.



7. Adopting advanced DSP system with USB connection, operated with the handle



  Technical Specifications



Description

Parameter

Optional parameter
diameter



200mm

150mm, 200mm

Machine package

600mm*1750*950mm



Resolution

0.01mm



Lathe structure

Seamless welded steel structure



X,Y structure

Rack and pinion transmission,

Hiwin square guide rail



Z structure

Imported ball screw



Max. idling speed

35m/min



Spindle motor power

3.5 KW

4.5kw

Spindle rotate speed

0-18000r/min



Working voltage

AC380V/50Hz

220v

Working mode

Stepper



Cooling mode

Air-cooling



Dust-collect function

Yes









 More same kind machine:

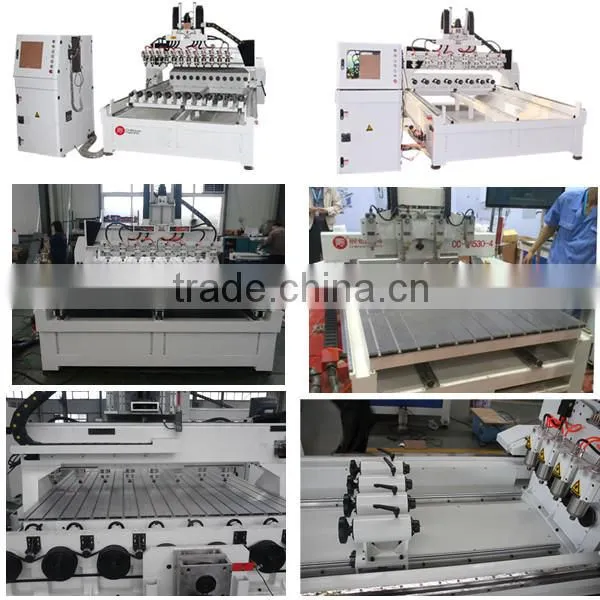

3D Multi Heads CNC Router Machine with 8 Rotaries:



this model has Two Functions,



one isPlane Table for Plane material Cutting and Engraving.

The second funtion is 8 Rotaries for do Cylinder / Round Material Engraving and Milling.

If you With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .



 China CNC mini lathe engraving/making machine and distributors wanted model CC-K1520

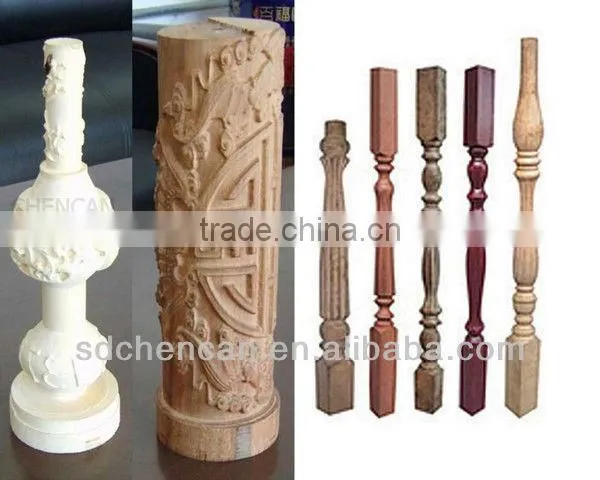

 Applicable industries:



Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.

Advertisement: engraving and cutting various labels and number plate.

Art craft: engraving characters of any languages and graphics on gifts and souvenirs.



 China CNC mini lathe engraving/making machine and distributors wanted model CC-K1520



Applicable materials:



Wood, aluminum board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.


Packaging & Shipping

Standard exported Wooden case



  China CNC mini lathe engraving/making machine and distributors wanted model CC-K1520







Company Information



Shandong Chencan Machinery Co.,Ltd. is a High-tech enterprise product and production.

Located in Qihe Economic Development Zone,Shangdong Province,with floor space of 20000square meters

and 13000square meters of modern workshops,160 employees and total assets nearly 60 million yuan.

All products have obtained the Euro CE and ISO9001Quality Management System Certificate and self-managed import and export right.



  China CNC mini lathe engraving/making machine and distributors wanted model CC-K1520




FAQ



As we are manufacture ,we are looking for distributors.China CNC mini lathe engraving/making machine and distributors wanted model CC-K1520

ANY QUESTIONS,PLEASE CONTACT US:

China CNC mini lathe engraving/making machine and distributors wanted model CC-K1520

Lira Zhou
Export manager
Viber/Whatsapp ID:0086-13583195229
Skype:c
TraneManager ID:cn220191925
Facebook/linkedin/Wechat ID:Lira Zhou
