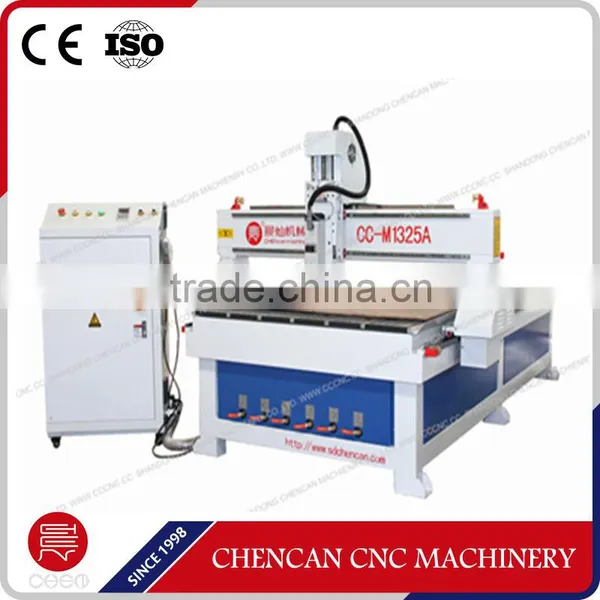

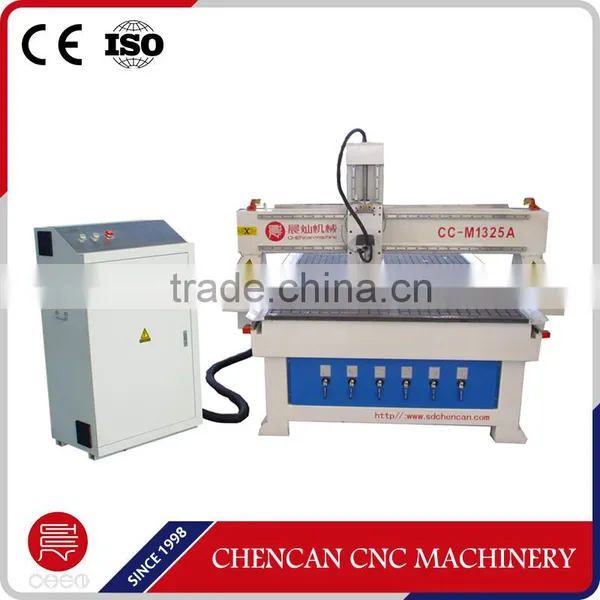

Heavy Duty 1325 CNC Carving Machine for Furniture CC-M1325A
Standard Features:
1. Whole machine is welded with thick seamless steel structure; Processed by high temperature tempering treatment and vibration stress relief (VSR) to reduce residual stress; Ensure that the stability is excellent, not easy to be deformed.
2.Vacuum table with T-slot, can fix the work piece by suction and clamps. Attractive and durable, easier to operation, also can save your time.
3. Three axes adopt Taiwan imported HIWIN 20 big square guiding rail; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts Germany imported ball screw,with high precision and long life time.
4. Big Stepper motors, YAKO 2811 drive Fulling 3.7Kw inverter and all other spare parts adopt the best brand in China to ensure the good quality and stability.
5. DSP control system which with USB connection operated with the handle, convenient operation.
6. Chencan air cooling 3.5Kw spindle, which with big power and high speed.
7. Vacuum system with 5.5kw water cooling vacuum pump, which with big sunction 250m³/h.
8. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
9. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
10. Perfect oil-injection system makes the maintenance more convenient.
Applicable industries
Processing various kinds of moulds and furniture such as door, window, cabinet, craft wooden door, screen and so on.
Applicable materials
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.

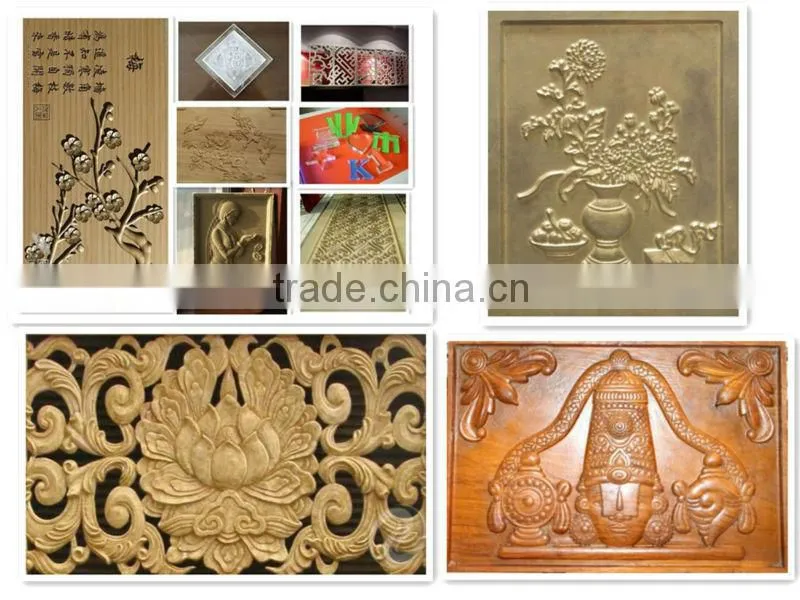

Processing effect
Our router is widely used for engraving, cutting various shade vulture, relief and ect.
Technical Parameter:
Model |
CC-M1325A |
|
X,Y Working Area |
1300*2500*200mm |
|
Table Size |
1440*3040mm |
|
XYZ positioning precision |
+/-0.005mm |
|
Table surface |
T-slot & Vacuum Table |
|
Frame |
Welded structure |
|
Max. Idling Speed |
35m/min |
|
Spindle Motor Power |
3.5KW China Chencan air cooling spindle |
|
Spindle speed |
0-18000RPM |
|
Working Mode |
Steeper |
|
Drive |
2811 big YAKO drive |
|
Inverter |
Fuling 3.7kw |
|
Operating System |
DSP control system |
|
Interface |
USB |
|
Vacuum system |
Yes, with 5.5kw pump |
|
Work-holding |
By Suction |
|
Lathe Structure |
Seamless welded steel structure |
|
X,Y Structure |
Rack and pinion transmission, |
|
HIWIN H20 guiding rail | ||
Z Structure |
High-precision φ25mm Rolling Ball screw |
|
Working Voltage |
AC380V/50Hz |
|
Command |
G code,HPGL,U00,mmg,plt |
|
Diameter of cutter |
φ3.175-φ12.7mm |
|
Package |
Fumigation-free wooden case |

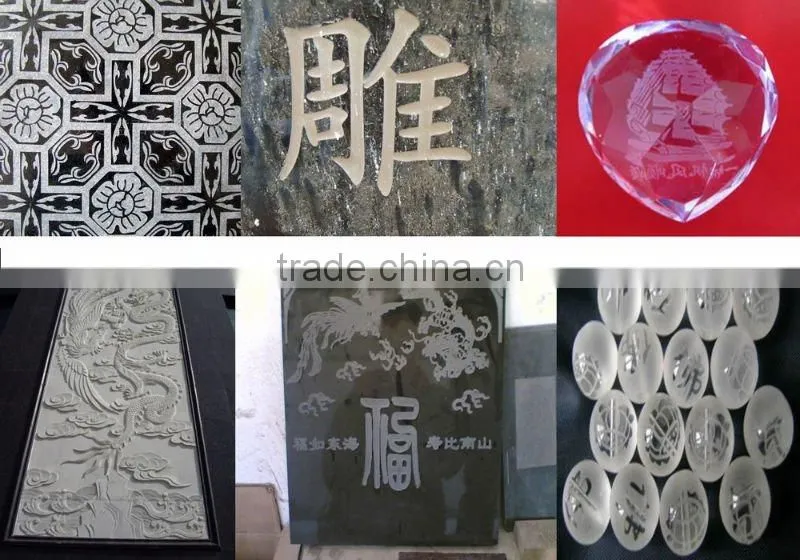

Samples:
