Professional Wood & Foam CNC Molding Machine: CC-BS2030B
Applicable materials:
Chencan Foam and Wood CNC Molding and Cutting machine can be used any kind of Wood,
EPS (Any kind of Foam) and non-metallic materials.
1. Molding cnc machine used for mould industries:
sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould,
wooden ship model,wooden model aviation and other wooden mould.
2.Molding cnc router also can be used for Musical instrument and advertisng, artist industry:
Can carve three dimension musical instrument, contour cutting, different shape foam cutting and engraving.
Processing effect:
Wood and EPS Molding CNC Machinery can manage the following effects: engraving, cutting, milling ,drilling,
relief, shadow, enchasement and so on.
Features:
1. CC-BS2030B Molding CNC Machine's effective working area is 2000mm*3000mm*1000mm(XYZ).
Use the world best Famous brand as our CNC Machinery main parts , to make sure our every set
cnc router's working perfectly, High speed and efficiency .
2. Heavy Hard Steel Lath Body, keep the CNC machine's working High stability.Whole machine is welded
with seamless steel structure, dealing with Time-treatment, the stability is excellent, never to be deformed.
3. Germany high-precision and bigger ball screw. Original Bigger Taiwan HIWIN Straight Square Guide Rail.
4. Taiwan Syntec control system
5. General Spindle with Atc machine tool holder function, can use the bigger size tools
6. Tools' Specification: You can choose different diameter and length tool according to your processing.
PARAMETERS
Model |
CC-BS2535B |
Precision Machining |
0.1mm/1000mm |
Max Traverse Speed |
30000mm/min |
Max processing speed |
20000mm/min |
Table size |
2600*4000mm |
Resolution |
0.01—0.03 mm |
Spindle power rate |
6KW Air/ Water-cooling spindle |
Guide Rail |
Hiwin—30mm |
Standard Power |
AC380V--Three Phase (Optional) |
Max. idling speed |
30000mm/min |
Diameter of cutter |
φ3.175-φ20 |
Working mode |
Servo |

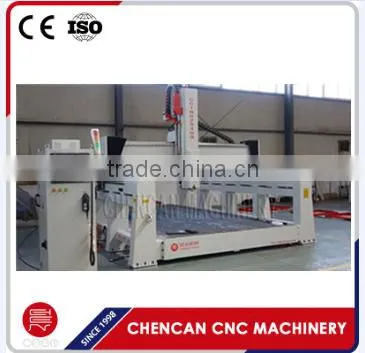

Side Picture of CC-BS2030B Model Foam CNC Machine

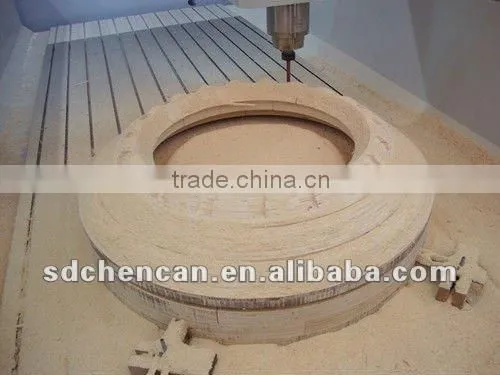

Wooden sample made by CC-BS2030B Model Foam CNC Machine
CC-BS2030B Model Foam CNC Machine with Samples
Perfect Gantry picture of CC-BS2030BG Model Foam CNC Machine
Samples:
