India Wood Door 1530 CNC Engraving/Milling Machine with High Quality
Features:
1. T-slot Vacuum table with 6 vacuum zones, which can adsorb different size materials. You can also fix the work piece by clamp.
2. Lathe bed welded with thick channel steels and square tubes; Processed by high temperature tempering treatment and vibrating stress relief (VSR) to reduce residual stress; Ensure excellent stability, not easy to be deformed.
3. Adopt Taiwan HIWIN high precision square rail; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw,with high precision and long life time.
4. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Wentai etc.
5. Has the function of re-carving after break point and power failure.
6. DSP system with USB interface, convenient operation. Off-line working, no need put a computer there.
7. Perfect lubricating system makes maintenance much easier.

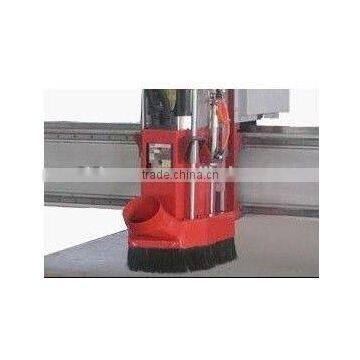

8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
9.Advanced design of the machine make sure strong cutting and guarantee the engraving accuracy.
Application:
Our cnc router is widely used for general woodworking like cutting, milling, boring and engraving on various wood materails.
Sample:
Door Engraving
3D relief engraving
Milling
Cutting
Packing: Strong Plywood box for Sea shipment
Parameter:
Description |
Parameter |
X,Y Working Area |
1500*3000mm |
Z Working Area |
200mm |
Table Size |
1440*3040mm |
Frame Structure |
Seamless welded steel, better than cast iron |
X,Y Drive |
Rack and pinion transmission, HIWIN square guide rail |
Z Drive |
Germany rolling ball screw, HIWIN square guide rail |
Drive Motor |
China Stepper |
Max. Running Speed |
35m/min |
Spindle |
3.5KW, air cooling, chencan brand |
Spindle Speed |
0-18000 rpm, variable speed |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
DSP with USB interface |
Resolution |
0.01mm |
Collet Size |
ER20 |
Diameter of cutter |
φ3.175-φ12.7mm |
Work-holding |
By clamp and suction |
Vaccum Pump |
5.5KW China water cooling, 250CBM flow |
Working Voltage |
AC380V/50Hz/3Ph |
Max. Power Consumption |
15KW |
Net Weight |
1300KG |
Software |
Type 3, ArtCAM, Ucancam |
Optional Device |
Dust collector |
Other Parts:
Samples:
Certificates:
