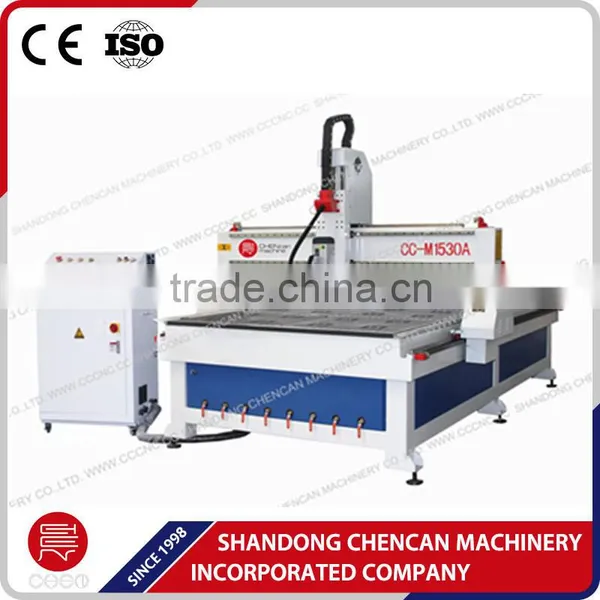

Help CenterWood Cnc Router Machine
Related Products
-
Professional Manufactuirer Panel Furniture Carving ATC Router Machine With HSD SpindleNegotiableMOQ: 1 Set -
Big Size/Two Rotary/Two Spindles CNC Wood Carving/Engraving MachineUS$ 1 - 20,000MOQ: 1 Set
-
Start/DSP Control 1325 CNC Router Plasma Cutting Machine for Metal CuttingUS$ 1 - 20,000MOQ: 1 Set
-
Jinan CNC 1325 Woodworking Machine CNC Router 1530 Machine Engraver Machine for SaleUS$ 6,600 - 7,350MOQ: 1 Set
-
China 1325 ATC Spindle Wood Engraving Machine CNC Furniture Making Router Machine/ Machinery for SaleUS$ 1 - 20,000MOQ: 1 Set
This machine is widely used in sign making,department nameplate,chest badge,architectural model,ABS plate, acrylic cutting,jade,glass marble and metal engraving.
Features:
1. One spindle is used for engraving, cutting, milling or for drilling side hole on door for lock.
2. X Y Z axes adopt Germany-made ball-screw
3. Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
4. DSP system with USB connection
Packing: Standard plywood box for export

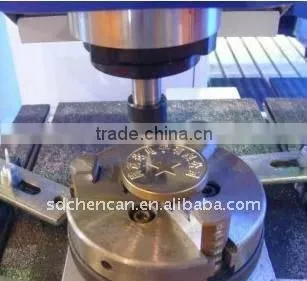

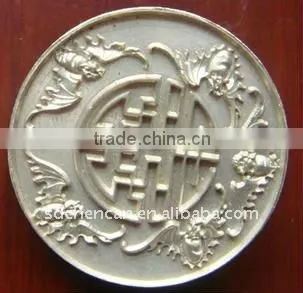

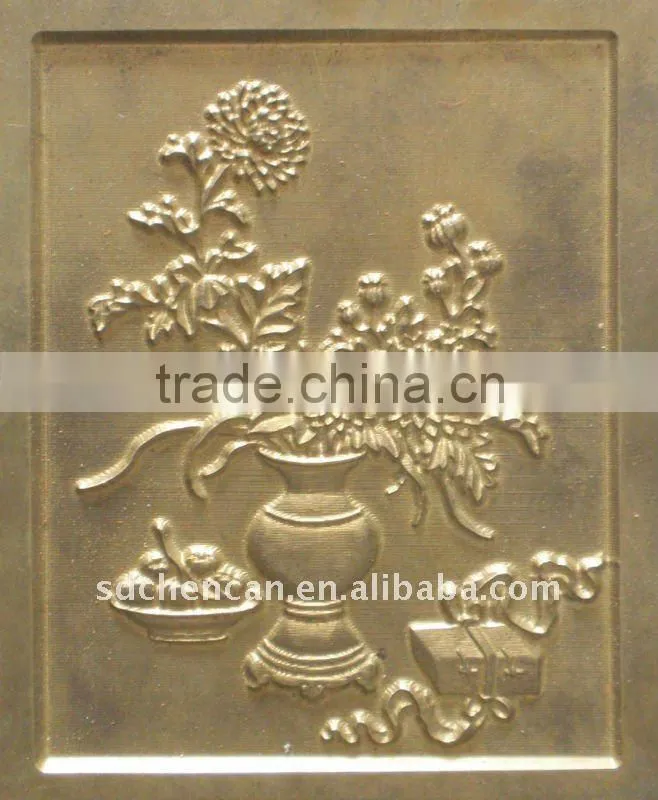

Samples
Parameter
Model |
CC-G6090B |
CC-G1323B |
CC-G1218B |
CC-G1224B |
|
Lathe bed |
Thick square steel |
||||
X Y working area |
600*900mm |
1300*2300mm |
1200*1800mm |
1200*2400mm |
|
Table size |
720*1050mm |
1400*2600mm |
1300*2100mm |
1300*2700mm |
|
Dimension |
1300*1000*1500mm |
2700*1600*1500mm |
2500*1500*1500mm |
3050*1500*1500mm |
|
Working accuracy |
0.2mm |
||||
Spindle power |
1.5kw |
1.5/2.2kw |
1.5/2.2kw |
1.5/2.2kw |
|
Max idling speed |
8 m/min |
14 m/min |
14 m/min |
14 m/min |
|
Max feeding height |
>80mm |
||||
Spindle speed |
24000 r/min |
||||
Control system |
DSP Handle control(NC Studio optional) |
||||
Command language |
G code, HPGL, U00, MMG,PLT |
||||
Diameter of collet |
3.175-12.7mm |
||||
Working mode |
stepper |
||||
Package |
Wooden case |
||||
Net weight |
250kg |
350kg |
400kg |
600kg |
|
