Big size/Two Rotary/Two Spindles CNC Wood Craving Router Machine with High Efficiency Model:CC-M1825BH2
Features:

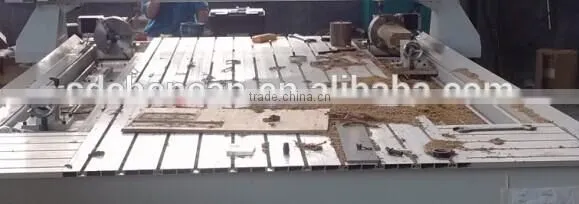

1.Two spindles can be working synchronously as well as separately. With two rotaries for cylinder.
2.Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
3.The machine adopts gantry movement, it can process any kinds of materials freely.
4.Adopts Germany-made ball-screw on Z axis, having the character of high precision and long life time. XY axes adopt rack and pinion transmission, having character of fast working, high efficiency and low cost.
5.Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure.

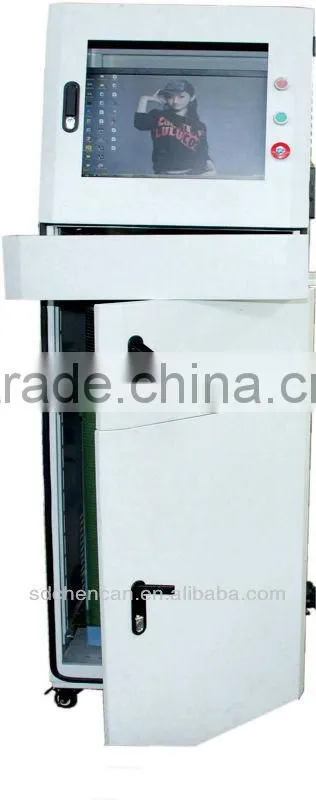

7.Adopting advanced Nc studio system with big control box , operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
Main parts:
Packing:Strong Plywood box for Sea shipment
Technical Parameter
Description |
Parameter |
X,Y working area |
1800*2500mm for single spindle working separately 900*1250mm for both spindle working synchronously |
Z working area |
300mm |
Table size |
1940*3040mm |
Resolution |
0.01mm |
Lathe structure |
Seamless welded steel structure |
X,Y structure |
Rack and pinion transmission and linear orbit |
Z structure |
Germany-made ball screw |
Max. idling speed |
35m/min |

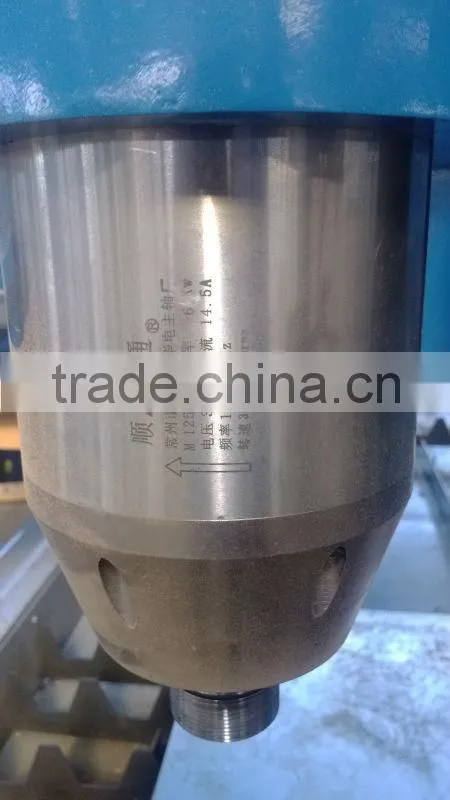

Spindle motor power |
6.0KW per spindle |
Spindle rotate speed |
0-24000r/min |
Working voltage |
AC380V/50Hz (optional:220V) |
Working mode |
Stepper |
Command |
G code,HPGL,U00,mmg,plt |
Operating system |
Nc studio control system |
Diameter of cutter |
φ3.175-φ12.7 |
Cooling mode |
Water-cooling |
Dust-collect function |
Yes |
Work-holding |
By clamp |

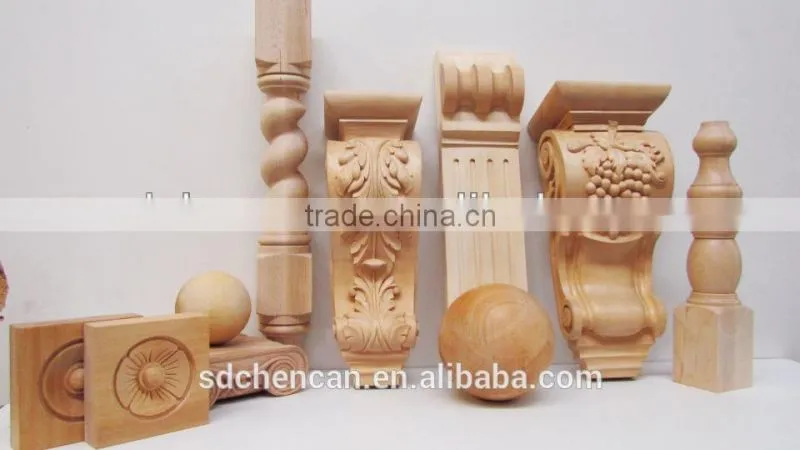

Samples:
Certificates and packages:
For any questions, please contact:
