Chencan -1325 High Precision Wood CNC Router with High Efficiencyrice CC-M1325A
Application of 1325 Wood CNC Router Machine
The machine is strong function,easy to use,durable performance.Applicable to process three-dimension wave board,computer table and chair,screen stencil,art windows,wood furniture,acrylic,PVC board,sign plate and plastic molding in high efficiency,and also can process many metal and non-metal materials such as iron,copper,aluminum,plastic plate,wood etc.
Standard Features of 1325 Wood CNC Router Machine

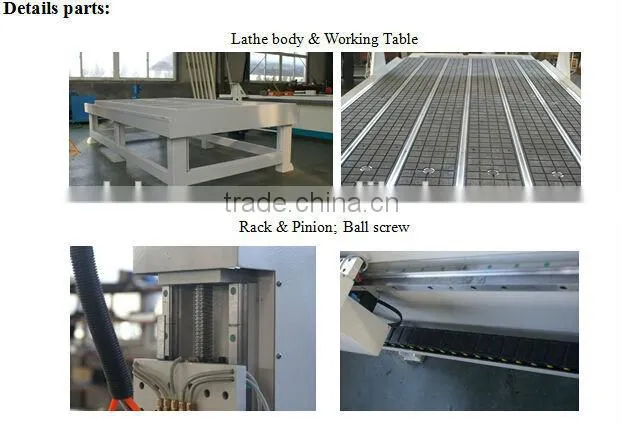

1. Whole machine is welded withthick seamless steel structure; Processed by high temperature tempering treatment and vibration stress relief (VSR) to reduce residual stress; Ensure that the stability is excellent, not easy to be deformed.
2.Vacuum table with T-slot, can fix the work piece by suction and clamps. Attractive and durable, easier to operation, also can save your time.

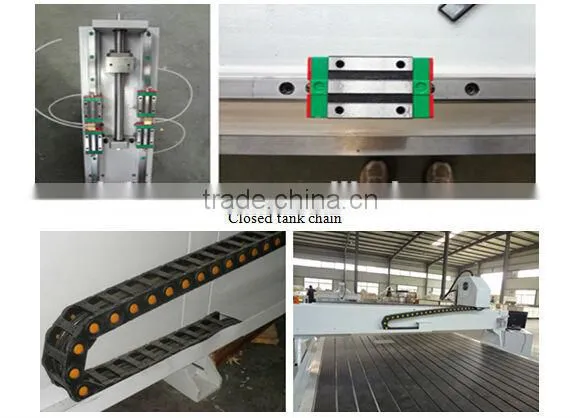

3. Three axes adopt Taiwan imported HIWIN 20 big square guiding rail; X and Y axes adoptrack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts Germany imported ball screw,with high precision and long life time.

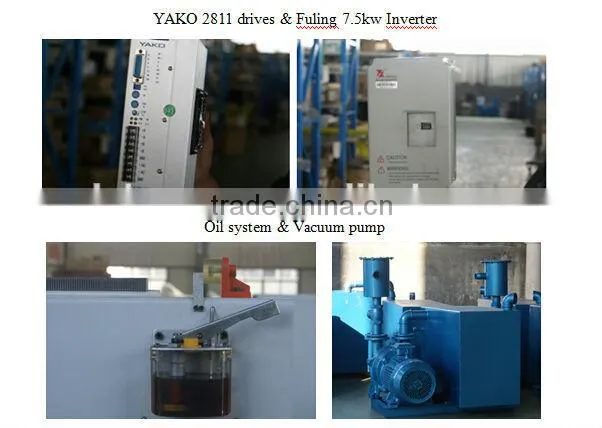

4.Big Stepper motors, YAKO 2811 drives, Fulling7.5Kw inverter and all other spare parts adopt the best brand in China to ensure the good quality and stability.

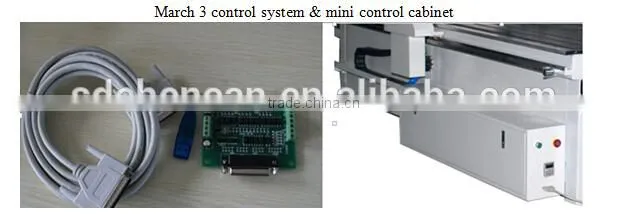

5.March 3 control systemwhich operated with the computer, convenient operation.
6. Chencan air cooling6.0Kw spindle, which with big power and high speed.
7.Vacuum system with 5.5kw water cooling vacuum pump, which with big sunction 250m³/h.
8. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
9. Has the function of recarving after break point and power failure. Has the function of forecasting process time.
10. Perfect oil-injection sys-tem makes the maintenance more convenient.

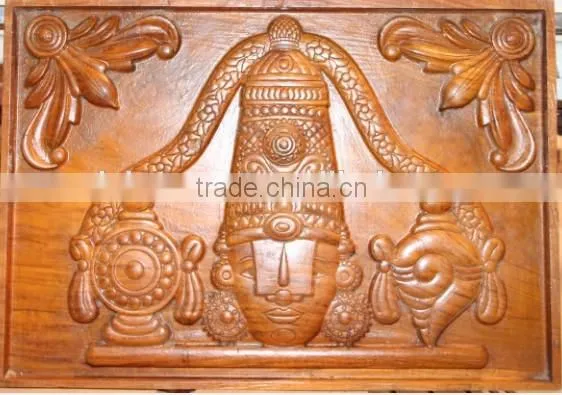

Samples of 1325 Wood CNC Router Machine
Parameter for 1325 Wood CNC Router Machine
Number |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x200mm |
2 |
Table Size |
1640×3050mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot working table (Option:T-slot Table) |
6 |
Frame |
Welded Structure |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 3.2Kw |
10 |
Max. Rapid Travel Rate |
33000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
3.5kw water cooling spindle |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
stepper |
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
16 |
Command Language |
G Code |
17 |
Operating System |
DSP System (Options: Ncstudio/Mach3 PC Software) |
18 |
Computer Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatibility |
Type3/Arcam Software |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3100X2100X1900mm |
26 |
N.W. |
1350KG |
27 |
G.W. |
1500KG |
28 |
Optional Parts |
Water Cooling Spindle |
Syntec Control System | ||
Dust Collector | ||
Rotary System | ||
Mist-cooling System | ||
Yaskawa DELTA Servo Motors |
Our factory
Certification:
After sales
1.One year for the machine
2. Replacing all parts for free during the warranty period (no human damage)
3. If necessary, we will provide professional service to the door
4. 24-hour service on-phone. NO:86-534-8997237
Why Chencan?
1. Chencan product is widely used in almost all the materials you can think of.
2. Chencan company is specialized in CNC Router machine manufacturing and selling .
3. Chencan machine with high precision and excellent reputation is the most reliable product you can choose.
4. Chencan company has all kinds of machines in store, the delivery time is much shorter than other companies.
5. Chencan company has international technical service office and provides 24 hours online services and technical supports for customers.
For more infromation,pls feel free to contact us.
