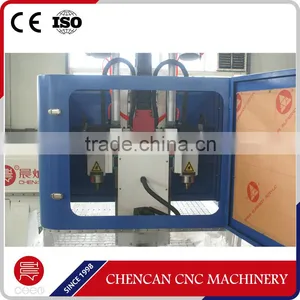

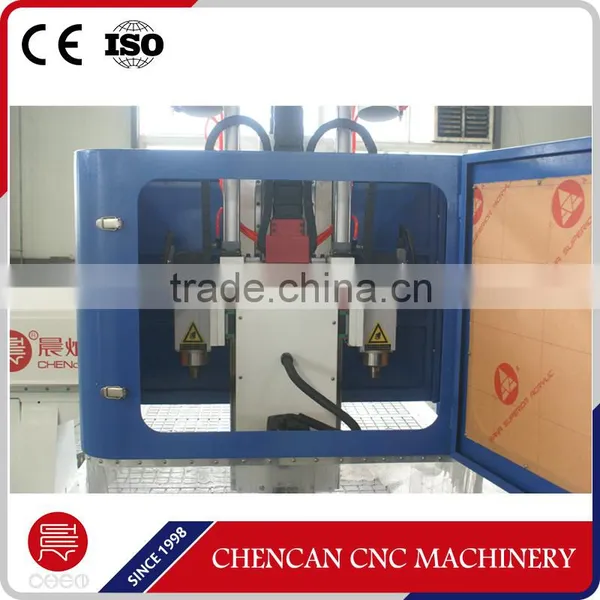

Three Head Woodworking ATC CNC Router CC-M1325AC3
Description:
1. Whole machine is welded with thick seamless steel structure; Processed by high temperature tempering treatment and vibration stress relief (VSR) to reduce residual stress; Ensure that the stability is excellent, not easy to be deformed.
2. Three or two spindles, which can change 2-3 different tools automatically. This type machine is new design economic atc cnc machine, save working time cost and investment for you and brings you with high efficiency.
3. Vacuum & T slot working table, can fix the work piece by suction and clamp together. Attractive and durable, easier to operation, aslo can save your time.
4. Three axes adopt Taiwan imported HIWIN big square guiding rail; X and Y axes adopt rack and pinion transmission,fast working, high efficiency and low cost. Z axis adopts Germany imported ball screw,with high precision and long life time.
5. Original Taiwan Syntec control system with color displary, with the handle, convenient operation.
6. Vacuum system with 5.5kw vacuum pump, which with big suction 250m3/h.
7. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
8. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
9. Perfect oil-injection system makes the maintenance more convenient.
Applicable Materials:
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
PRODUCT PARAMETER
| Model | CC-M1325AC3 | CC-M1530AC3 | CC-M2030AC3 |
| Working size | 1300*2500*200mm | 1500*3000*200mm | 2000*3000*200mm |
| Table Size | 1440*3040mm | 1640*3540mm | 2140*3540mm |
| Spindle Number | 3 pcs | 3 pcs | 3 pcs |
| Middle spindel rotate | Yes, rotating 180 degrees | Yes, rotating 180 degrees | Yes, rotating 180 degrees |
| XYZ positio precision | +/-0.005mm | +/-0.005mm | +/-0.005mm |
| Table surface | T-slot & Vacuum Table | T-slot & Vacuum Table | T-slot & Vacuum Table |
| Frame | Welded structure | Welded structure | Welded structure |
| Max. Idling Speed | 35m/min | 35m/min | 35m/min |
| Spindle Motor Power | 3.5kw air cooling spindle | 4.5kw air cooling spindle | 4.5kw air cooling spindle |
| Spindle speed | 0-18000RPM | 0-18000RPM | 0-18000RPM |
| Working Mode | Steeper | Steeper | Servo |
| Motor | Big stepper motor | Big stepper motor | YAKO servo motor |
| Drive | 2811 big YAKO drive | 2811 big YAKO drive | YAKO servo drives |
| Inverter | Fuling 5.5kw | Fuling 5.5kw | Fuling 5.5kw |
| Operating System | Taiwan Syntec system | Taiwan Syntec system | Taiwan Syntec system |
| Interface | USB | USB | USB |
| Vacuum system | Yes, with 5.5kw pump | Yes, with 5.5kw pump | Yes, with 5.5kw pump |
| Work-holding | By Suction | By Suction | By Sunction |
| Lathe Structure | Seamless welded steel structure | Seamless welded steel structure | Seamless welded steel structure |
| X,Y Structure | Rack and pinion transmission, | Rack and pinion transmission, | Rack and pinion transmission, |
| Z Structure | φ25mm Rolling Ball screw | φ25mm Rolling Ball screw | φ25mm Rolling Ball screw |
| Rails | Taiwn HIWIN 20 square rail | Taiwn HIWIN 20 square rail | Taiwn HIWIN 20 square rail |
| Working Voltage | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz |
| Command | G code,HPGL,U00,mmg,plt | Gcode,HPGL,U00,mmg,plt | G code,HPGL,U00,mmg,plt |

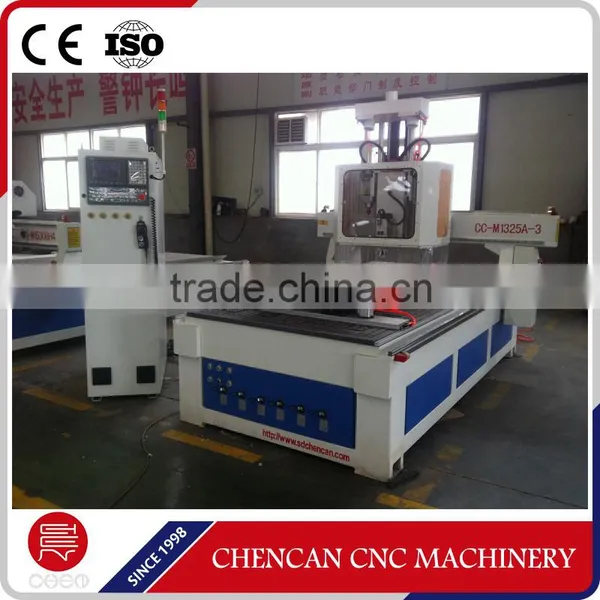

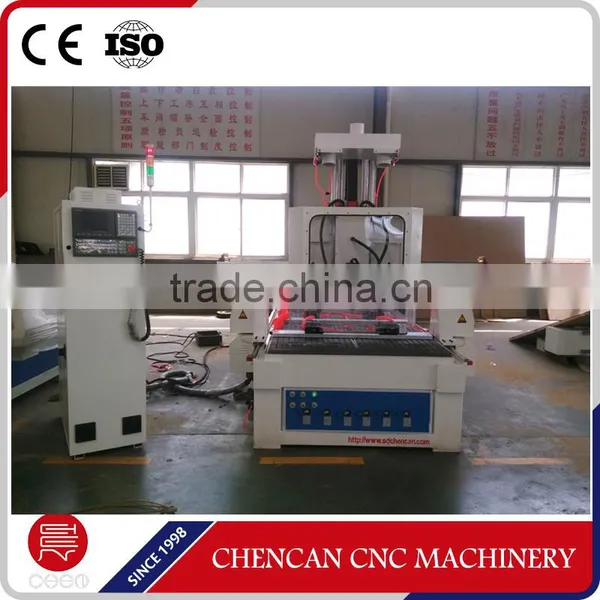

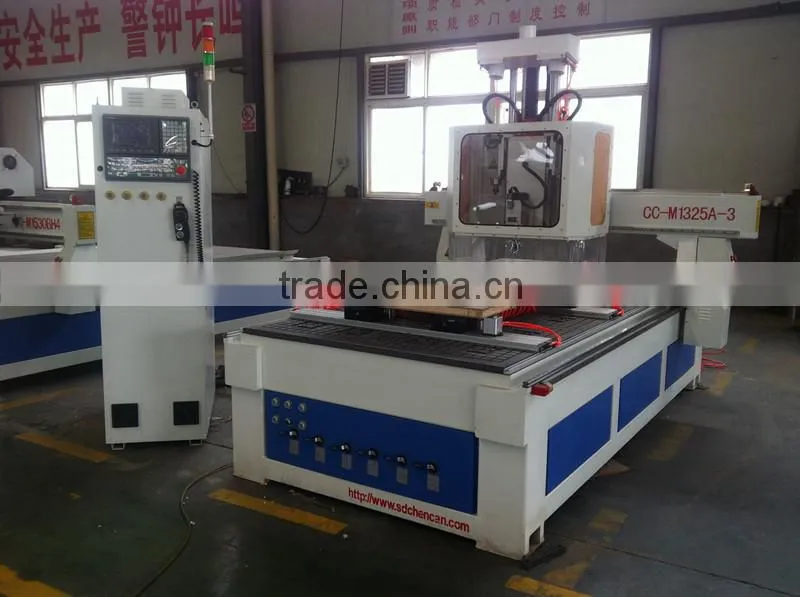

PRODUCT SHOW

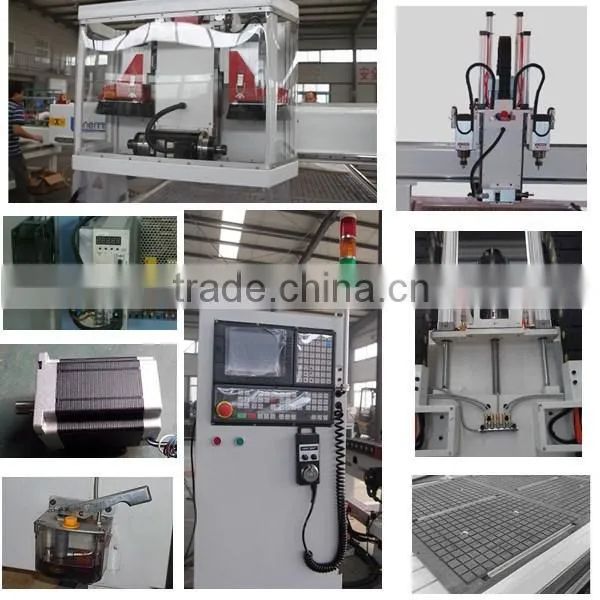

Main parts:
Lathe body & Working Table
Rack & Pinion; Ball screw
Oil system & Vacuum pump
Japan YASKAWA servo motors and drives

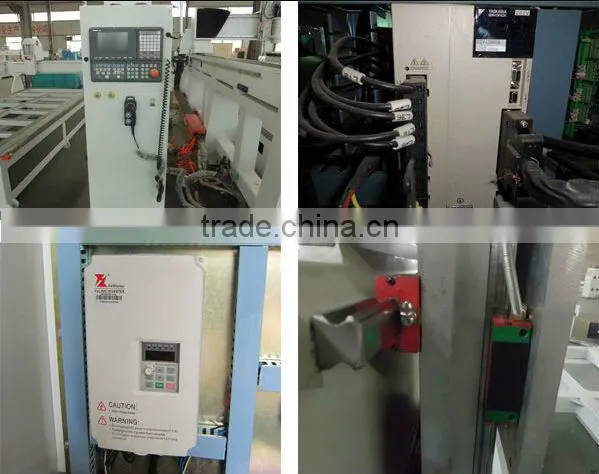

Other Detailed Parts
Samles made by atc cnc machine:
Package for atc cnc machine:
