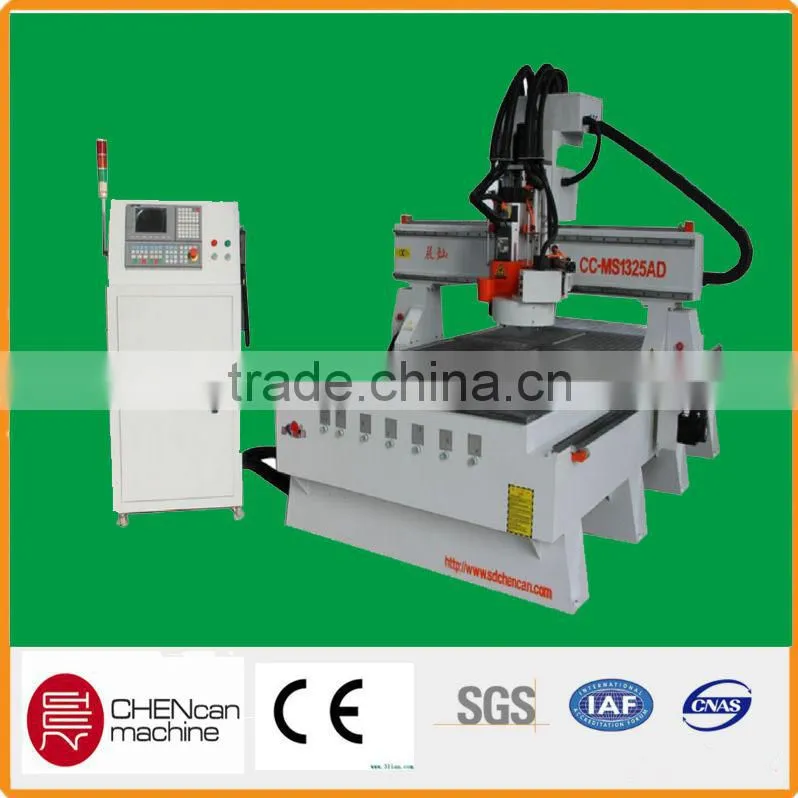

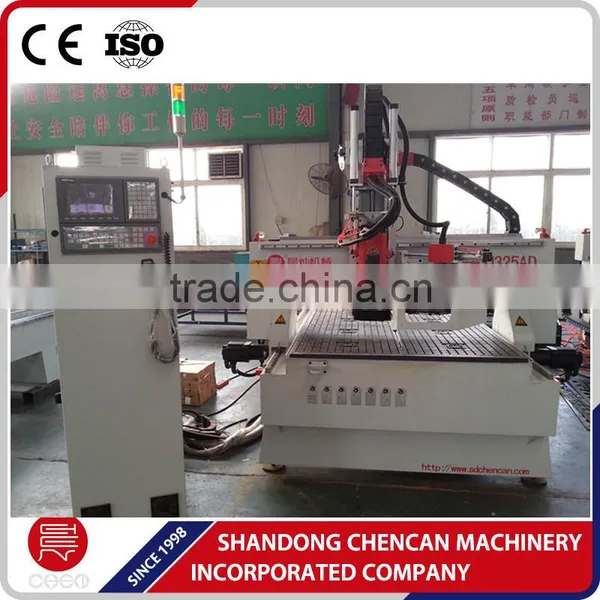

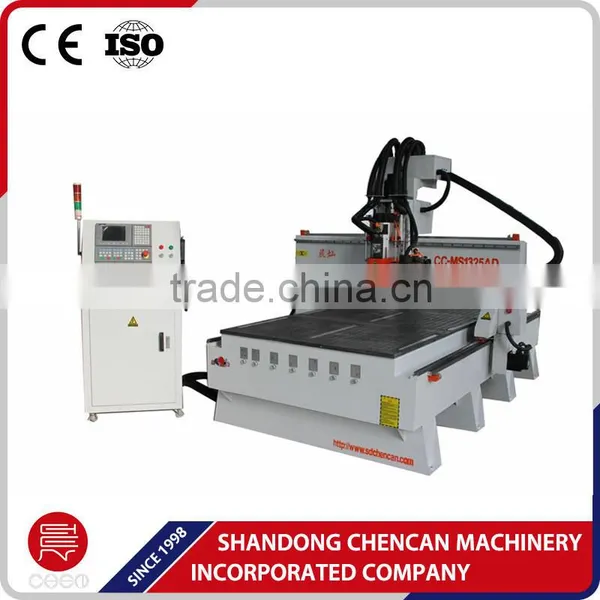

Chencan ATC Auto Tool Change Spindle Router Machine CC-MS1325AD
Model: CC-MS1325AD
Features for wooden door making machine

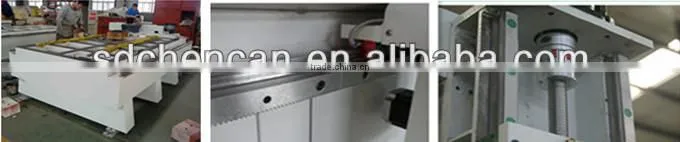

1.Whole machine is welded with seamless steel structure; the stability is excellent, not easy to be deformed.

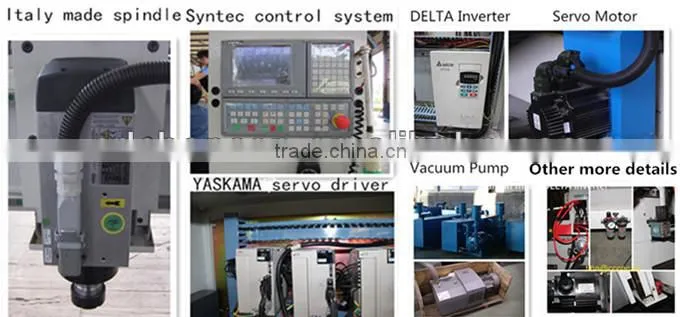

2.Z axis adopts Germany-made ball-screw and Taiwan made H30 linear orbit, with high precision and long lifetime. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost.
3. Excellent compatibility: CAD/DAM designing software e.g.
4. Adopting Taiwan-made control system, separate keyboard control system and color LCD screen makes the machine have perfect performance.
5. Adopting high-torque Japan-made YASKAMA servo motor and driver, with steady working capability and high positioning precision.
6. Adopting Italy-made HSD air-cooling spindle make the machine have high precision, long life-time and steady working capacity. Auto-tool changer system makes the machine safer and save time.
Technical Parameter for wooden door making machine
Model |
CC-MS1325-AD |
Note |
Lathe body |
Thick and Hard Steel structure |
sand blast & seasoning |
X Y effective working area |
1300*2500*300mm |
|
Table size |
1400*3040mm |
|
Resolution |
0.001—0.003 mm |
|
Spindle power rate |
Italy made HSD 9.0KW |
Made In Italy |
Inverter |
Delta |
Taiwan |
X,Y structure |
Rack and pinion transmission, Taiwan-made Linear Bigger orbit, 30mm |
Taiwan |
Z structure |
Germany-made ball screw |
Germany |
Motor of X , Y, Z axis |
850W/piece (Four Pieces) Servo |
Japan Yaskawa |
Driver |
Servo |
Japan Yaskawa |
Guide Rail |
Hiwin—30mm |
Taiwan |
Spindle rotating speed |
0-24000r/min |
|
Standard Power |
AC380V-/220V-Three Phase (Optional) |
|
Max. idling speed |
40m/min |
|
Max. feeding height |
300mm |
|

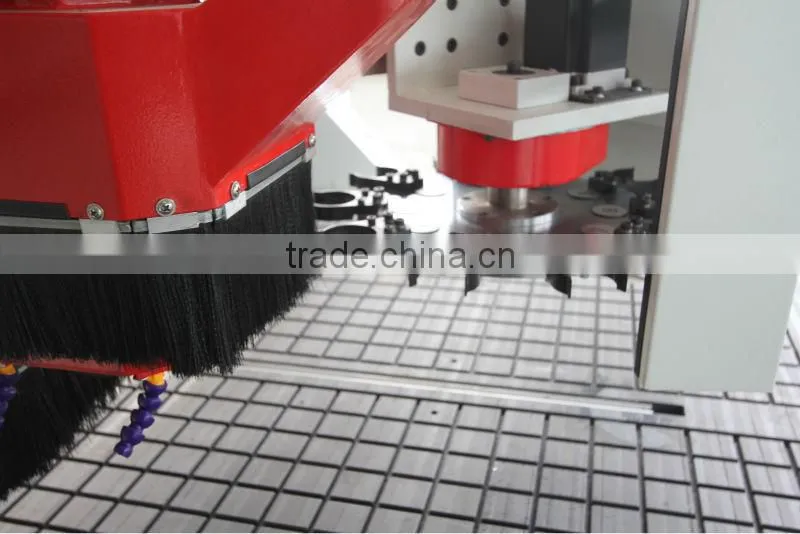

Disk Auto-tool changer wooden door making machine
Applicable industries wooden door making machine
Wood processing: processing of various furniture such as door, window, cabinet, craft wooden door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Engraving samples for wooden door making machine
