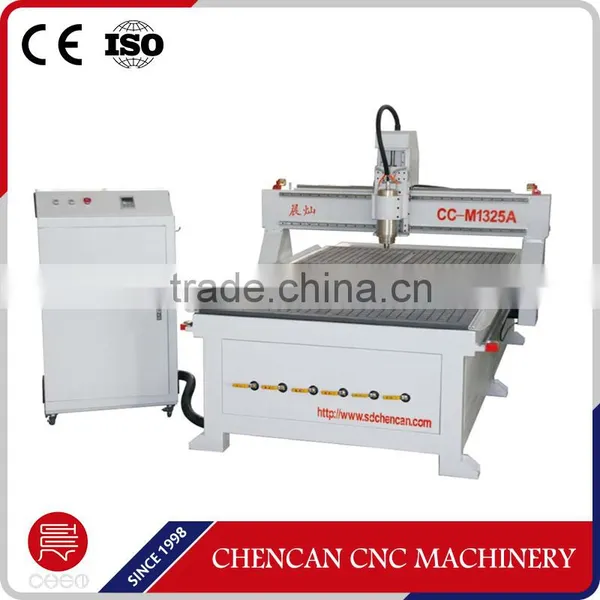

CC-M1325A 3D Wood Plate CNC Router Machiner
Suitable Industry
Billboard industry, large word cutting, plate processing, LED / neon light trough, literal hole-shaped cutting, blister lamp mold making and so on.
Performance Characteristics
1.Imported Linear square Guideway, Double-line Four-row Slider, Undertake Heavy-duty, Stable operation, High precision, Long lifetime, cutting with high precision
2.DSP control system, give full play electric potential to achieve high-speed machining, curves linear synchronous, curves more perfect, do not take up computer memory and can realize the automatic start-stop cutting spindle.
3.High-speed drive a stepper motor and driver, Y axis using a dual-motor drive, to make high-speed operation up to 20 meters above the blank line speed, with the cutting spindle can greatly enhance the carving is even more.
4.Software:compatible with Type3/Artcam/Castmate /Ucancam a variety of CAD / CAM Design Software
5. With the vacuum table service,it will save the workers time to fix the sheet on the table surface ,and increase the work efficiency.
Guarantee & aftersale service
Guarantee for one year,24-hour technical support by email or calling
User-friendly English manual and Video CD for machine using and maintaining.
Parameter of cnc router
NO. |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
1300x2500x200mm |
|
2 |
Table Size |
1440X3040mm |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
|
5 |
Lathe Structure |
Welded structure |
|
6 |
X, Y Structure |
Rack and pinion transmissio |
|
7 |
Z Structure |
Ball Screw |
|
8 |
Max. Consume power |
6.5Kw |
|
9 |
Max. Speed |
0-32000mm/min |
|
10 |
Max. Working Speed |
0-20000mm/min |
|
11 |
Spindle Power Motor |
3.5kw air-coolant spindle (option HSD spindle) |
|
12 |
Spindle Speed |
0-18000RPM |
|
13 |
Drive Mode |
Stepper Motor(optional servo motor) |
|
14 |
Working Voltage |
AC220V/380V, 50/60Hz |
|
15 |
Command |
G code, *uoo, *mmg, *plt |
|
16 |
Operating System |
DSP Control System(optional NCSTUDIO,March 3 system) |
|
17 |
Interface |
USB |
|
18 |
Flash Memory |
128M |
|
19 |
Collet |
ER25 |
|
20 |
X,Y Working Delicacy |
<0.01mm |
|
21 |
Software |
Type3, Ucancam, Artcam |
|
22 |
Running circumstance |
Relative humidity: 30%~75% |
|
23 |
Packing Size |
3100X2000X1800mm |
|
24 |
Net Weight |
1250KG |
|
25 |
Gross Weight |
1500KG |
|
Machine Parts of china cnc routers:
Lathe body & Working Table
Rack & Pinion; Ball screw
Closed tank chain
YAKO 2811 drives & Fuling 3.7kw Inverter
Oil system & Vacuum pump
DSP Handle control system
Package:
Samples :
Other CNC Router Model :
FAQS:
1,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3,Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading
If you inquiry now, we will give you 5% distount for the cnc router machine !
