Cheap 4 Axis Cnc Carving Machine With 8 Spindle

Optional:

1. 2/4/6/8/10 spindles

2. 3D scanner

3. Air spindle

Standard Feature:

1. Whole machine is welded with thick seamless steel structure and heavy loadiing lathe body. Processed by high temperatue tempering treatmen and vibratin stress relief (VSR) to reduce residual stress; Ensure that the stability is excellent, not easy to be deformed.

2. Two function,one is plane table for plane materials cutting and engraving. Another is rotaries for do cylinder/round materials engraving and milling. If you with scanner or designed photo, it ca do any 3d & 2d engraving.

3. Three axes adopt Taiwan imported HIWIN 25 big square guiding rail; XY axes adopt rack and pinion transmission (incline), fast working, hig efficiency and low cost; Z axis adopts Germany imported ball screw, with high precision and long life time.

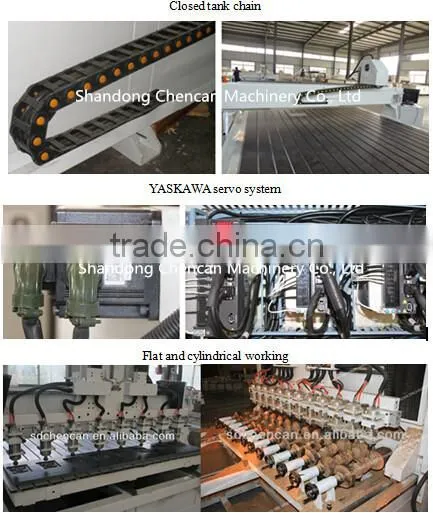

4, Adopt high-torque YASKAWA servo motors and drives, having steady workiing capability and high positioning precision, with a higher working speed.

5. T-slot working table, fix the work piece by clamps easy to operation.

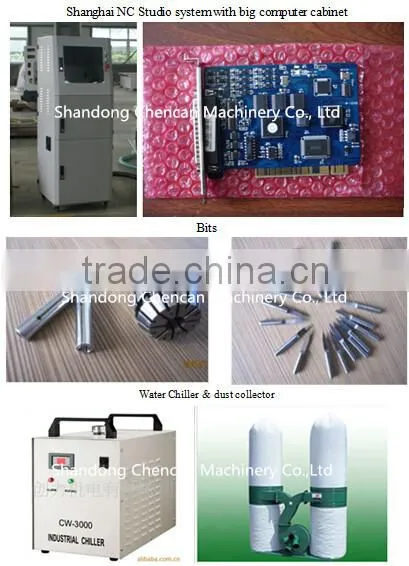

6. Shanghai Real 4 axis NC Studio system, operated with the computer, convenient operation.

7. 8 pcs China water cooling 2.2kw spindle, which with big power and high speed 24000rmp.

8. Well compatibility: CAD/CAM designing software e.g Type3/Artcam/Castmate/Wentai etc.

9. Has the function of re-carving after break point and power failure and forecasting process time.

10. Perfect oil-inject system makes maintenance much easier.

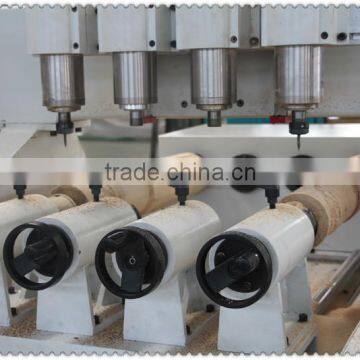

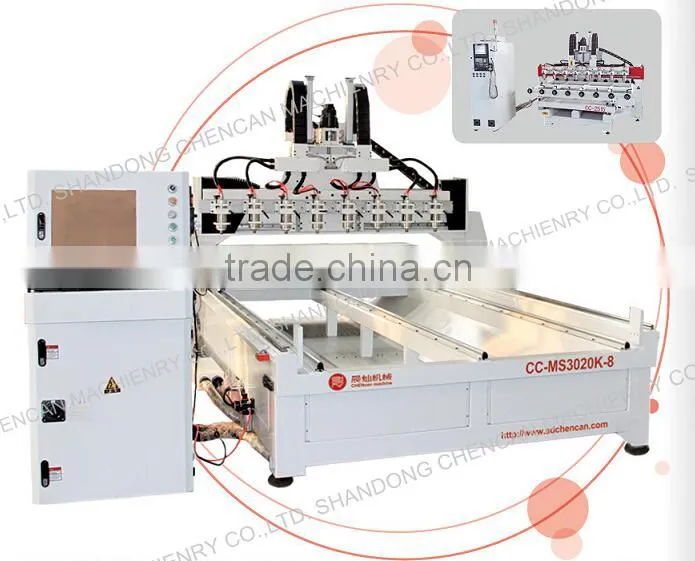

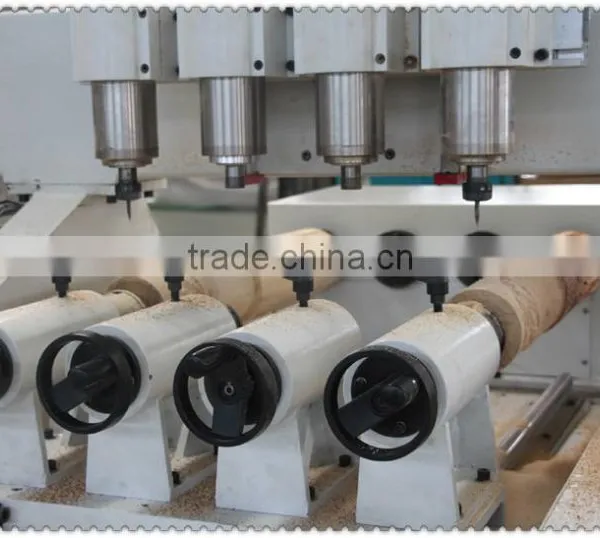

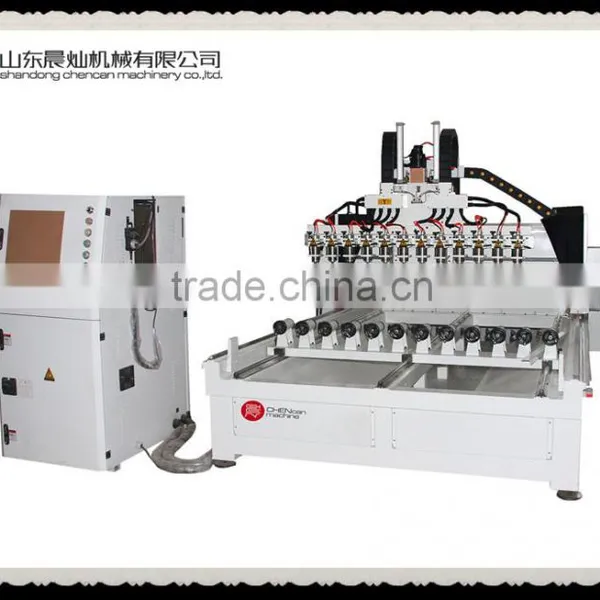

11. CC-MS2030K8 model machine is the 3D, 4 axises cnc router machine, with 8 rotaries and 8 spindles, which can work at the same time or independently and every one's max effective working area is 225mm (diameter) by 3000mm (length)

Applicable industries:

Processing various kinds of moulds /furniture / advertising letter and so on.

Applicable materials:

Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.

Processig effect:

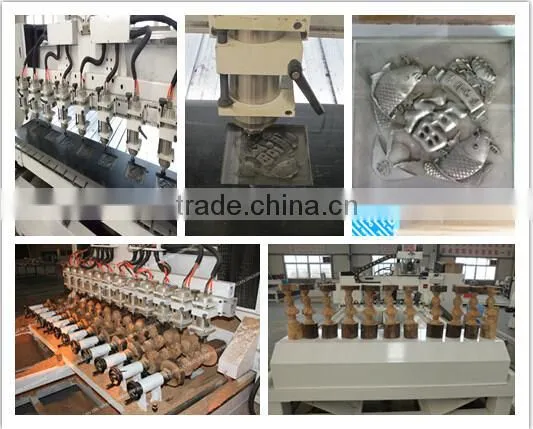

Our router is widely used for engraving, cutting various shade vulture, relief and ect.

Basc advantage:

A. High soft, famous brand electric cables, with high abrasion, fold, high temperature, acid and alkali resistant.

B. Any work stage is strictly processed according to Euro CE quality standard and ISO quality standard. Any set CNC Router will be done at least 72 hours careful testing and checking, from small part to the whole machine. After any part’s quality inspection, finishing basic maintenance measures, the machine can be packaged by the specialized workers for transport.

C. Our company has powerful strength in metal machines, In order to make sure every detail’s high quality level; most of the machine’s metal parts are made by our own machining center imported from American.

Japan YASKAWA servo motors

1300*2500mm 1500*3000mm 2000*3000mm 3000*4000mm

1. 2/4/6/10/12 spindle & rotaries

2. Automatic oil-injection system

3. Higher gantry .

4. Air-cooled spindles

5. 3D scanner

1. Wood processing: process of various chair,roman column continental furniture, wooden hangers, cylinderials, circular retire vases and so on.

2. Advertisement: engraving nd cutting various labels and number plate.

3. Art craft: engraving characters of any languages and graphics on gifts and souvenirs.

Engraving, cutting, milling, drilling, relief, shadow, enchasement and so on.
