Specifications
CNC Double-head precision Cutting Saw for Aluminum Door and WindowServo motor; high efficiency; large scale production
CNC Double-head precision Cutting Saw for Aluminum Door and Window CNC-500*4200A
Applications and Characters:
1.Used for cutting not only aluminium profile, pvc, upvc and curtain wall profile,but also corner connector
2.45°and 90°cutting are available
Configuration:
1.Mitsubishi control system
2.YASKAWA servo pack
3.DAHE saw blade
4.TAIJING solid 40mm linear bearing motion pair
5.Taiwan ABBA 50mm screw rod
6.SIEMENS low-voltage circuit breaker
7.Alternating current contactor
8.Airdraulic damping cylinder
9.Electromagnetic valve
10.20mm square lead rail
11.slide block
Technical Parameter:
Rotate speed of the saw:3850r/min
Cutting length:Min. 400mm, Max. 4200mm
Cutting width:Max.135mm
Cutting height:Max.300mm
Saw blade dimension:Θ500mm×4.4mm×Θ30mm
Motor power:2×2.2KW+1.5KW
Lathe thickness: about 5.0mm
Cutting angle: 90°45°
Power supply: 380V /50 HZ(three phase four wire)
Air pressure: 0.5Mpa-0.8Mpa
Air consumption: 200L/Min
Feeding speed: 0-3M/Min stepless speed regulation
Overall Dimension:5500mm×1750mm×1990mm
Weight: about 2000KG
Processing Accuracy:
Repeat location length ≤ 0.2mm
Cutting angle allowance ±5’
Cutting profile surface planeness ≤ 0.10mm
Cutting profile surface roughness Ra 12.5μm
Features:
1.It features large cutting range, high efficiency and perfect safe guards
2.Suitable for large scale production.3.
3.CNC technology can cut different specifications of the profiles automatically.
4.The structure is strong and of excellent rigidity. So it is impossible to be out of shape.
5.The main shaft with high precision makes the saw operate stably and cut surface smoothly.
6.The imported guide rails and the linear bearing motion pair can realize high precision and accurate location.
7.The heads return automatically
8.The two-way location and clamping features guarantee high precision and steadiness
9.The well-sealed safeguard of saw blade prevents the cutting bits from flowing everywhere.

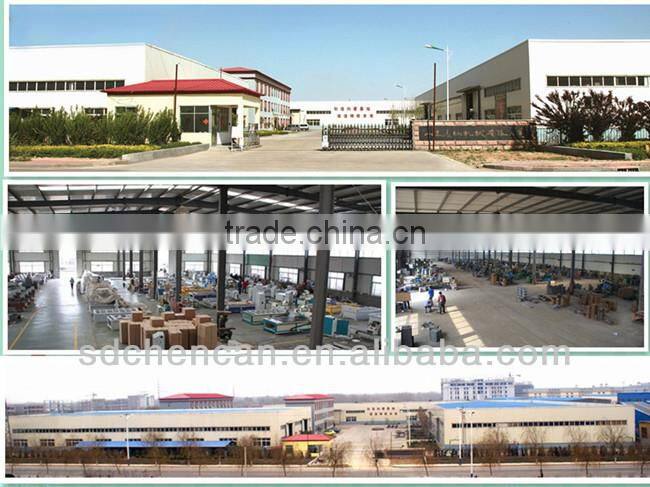

WELCOME TO OUR FACTORY
