Specifications
CNC Router with Plasma Metal Cutting Head Machine1. Spindle can do any engrave and Cutting
2. Plasma can do thick metal cut

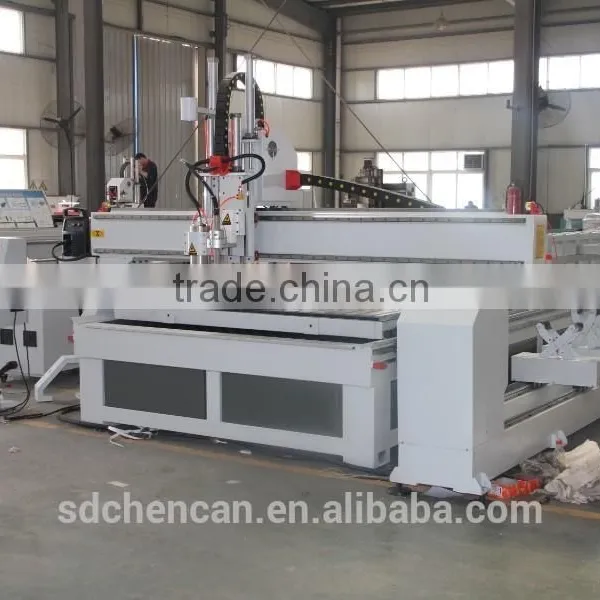

CNC Router Machine with Plasma Metal Cutting Head
Model: CC-MS2060BD
Brief Introduction:
1. This model is custom-made for metal processing, as achieves dual-function of both metal engraving and metal cutting. It is convenient, practical and saves cost of purchase.
2. Plasma Cutting for low carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet and other metal sheet .
3. CNC Router engraving and Cutting for wood,plastic,density board,wave board, PVC, acrylic, crystal , aluminum board ect .
Product Features
- Ø Machine frame adopts the seamless steel structure that is firmer and more endurable than other materials, and the machine is operated simply.
- Ø Working area:2000mm*6000mm.For router gantry height 200mm.
- Ø Rotary device length 6000mm.
- Ø Spindle motor: Domestic 4.5KW water-cooled spindle
- Ø Plasma torch power:Hypertherm 65A
- Ø The cutting mouth is small, tidy and without residue phenomenon.
- Ø Operating system: DSP system for cnc router, Start system for plasma.
- Ø Electrical components: Schneider and Siemens/Limit switch:Omron.
- Ø Has the function of re-carving after break point and power failure,Has the function of forecasting process time .
- Ø This type of machine is mainly used for steel plate, aluminum plate, copper plate, iron plate, galvanized plate, titanium plate and other metal plates.
- Ø It supports Artcam, Type3 software such paths generated standard G code files can also be converted by software to read AUTOCAD and other software to generate DXF format files. Control system uses the U disk swap processing files, easy to operate.
Technical parameters
Machine Model |
CC-MS2060BD |
Working area (X,Y,Z mm) |
2000x6000x200 |
Machine structure |
Seamless steel structure lathe bed sawtooth working table and movable flat working table |
Working holding |
By clamps |
Rotary device |
Length 6000mm,special design |
Overall Dimensions (mm) |
2340*6540*1900mm |
Precision (mm) |
0.07 |
Positioning accuracy(mm) |
±0.05 |
Repeatability(mm) |
±0.05 |
Idling Speed(mm/min) |
12,000 |
Working Speed (mm/min) |
8,000 |
Spindle |
4.5 kw water cooling (0~24000rpm) |
Available Tools (mm) |
Diameter 3.175-12.7mm |
Drive system |
SERVO motor(Japan YASKAWA servo motor and driver) |
Plasma Supply |
Hypertherm 65A |
Working Voltage |
AC380V/220v |
Command code |
G code (*.NC, mmg,*.u00,etc)*.eng |
Control System |
Start and DSP two control systems |
Compatible Software |
Compatible with any software generating G code file in Microstep |
Performance
v Imported main parts for the machine, famous brand, stable personality.
v DSP control system, very easy to learn and use
v high speed and efficiency, the engraving speed can reach to 20m/min, Large cutting power not only to elaboratory carved a jagged, also smooth clear bottom.
v CNC Router and the Plasma machine ,is new design machine ,one lathe bed but have two functions it an do the cnc router jobs ,and also can do the plasma jobs .
v Unique structure: Gantry structure, high accuracy,stable transmission
v Untouched plasma head, small cutting edge, no cutting residue
Package: water-proof paper and plywood box
Shandong Chencan Machinery Co.,Ltd. is a High-tech enterprise ingrating product and production.
Located in Qihe Economic Development Zone,Shangdong Province,with floor space of 20000square meters
and 13000square meters of modern workshops,160 employees and total assets nearly 60 million yuan.
FAQ:
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 7-22 days after receipt of advance payment.
Package:Export High-quality Standard Fumigation-free Wooden Case for wood cnc router
(As for the package,for 1300mm*2500mm working size,all the assembling and installation is finished in our factory ,we use High-quality Standard Fumigation-free Wooden Case,then a 20’container is OK,if pacakge width exceed 2.1m,
gantry should be removed)
