Home > Products > Stainless Steel Pipes > 300 serial welded stainless steel pipe 316l

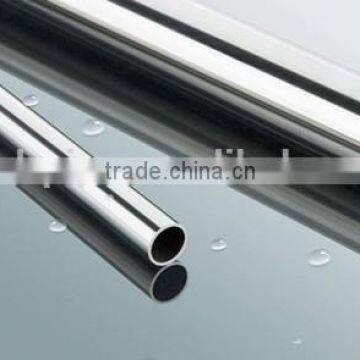

300 serial welded stainless steel pipe 316l
- 60000 Ton / Tons per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Standard: | ASTM, AISI, DIN, EN, GB, JIS | Place of Origin: | Shanxi, China | Brand Name: | DMD |
Model Number: | dmd0500130 | Type: | Welded | Steel Grade: | 300 Series |
Application: | oil conveying, nuclear power, shipping | Certification: | ISO | Welding Line Type: | EFW |
Thickness: | 3mm-39mm | Outer Diameter: | 219mm-3048mm |
Product Description
welded stainless steel pipe 316l
Company Image
Our workshop
Specification
Commodity Name | welded stainless steel pipe 316l | ||||
Material Grade | 304/304l/316/316l/430 | ||||
Nominal Diameter | DN:200-900 | ||||
NB:200-900 | |||||
NPS:8''-36'' | |||||
Outside Diameter | 219.1mm-3048mm | ||||
Nominal Wall Thickness | 3mm-39mm | ||||
Length | as customers' request | ||||
Tolerance | a) Outer Diameter: +/- 0.5%D | ||||
b) Thickness: +/- 0.3mm | |||||
Standard | ASTM A312/ ASTM A358/ ASTM A554 /ASTM A778 | ||||
Application | petrochemical, nuclear power, shipping etc. | ||||
Payment terms | L/C,T/T,D/A,D/P etc. | ||||
Grade | Mechanical properities | ||||
Tensile strength | Yield strength | Elongation | Hardness | ||
KSi(MPa) | KSi(MPa) | % | HRB | ||
ASTM | 304 | ≥75(515) | ≥25(170) | ≥35 | ≤90 |
304L | ≥70(483) | ≥30(205) | ≥35 | ≤90 | |
316 | ≥75(515) | ≥30(205) | ≥35 | ≤90 | |
316L | ≥70(483) | ≥25(170) | ≥35 | ≤90 |
Application
Strict Detection
Payment & Delivery
Advanced Production Technology
Our Power
DMD FAQ
Contact information
Know more details about our products, please contact me soon !
Our Service
Customers’ business is our business!
We regard customers as our most intimate partners.
Trust, responsibility and thoughtful care are the base for maintaining each other.
We pay close attentions to customers’ needs and the development of industry all the time,
provide the products and service which exceed customer expectations with continual innovation ,
Produce the cost and promote the efficacy to achieve the satisfied investment return.
company: Shanxi Diamond Stainless Steel Technology Co.,Ltd.
Add: South No. 1,No. 7 Road,Kou Village Section,108 National Road,Yuci industrial Zone,
Jinzhong City, Shanxi Prov., China
E-mail:sxdemd# #=@
Tel: +86-0354-8593144
P.C.:030600
web:
Contact Us
- Shanxi Diamond Stainless Steel Technology Co., Ltd.
- Contact nameJane Guo
- Phone86-354-8593140
- AddressYuci industrial zone,Shanxi Prv.,China Jinzhong,Shanxi
