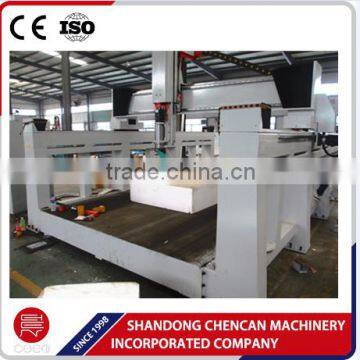

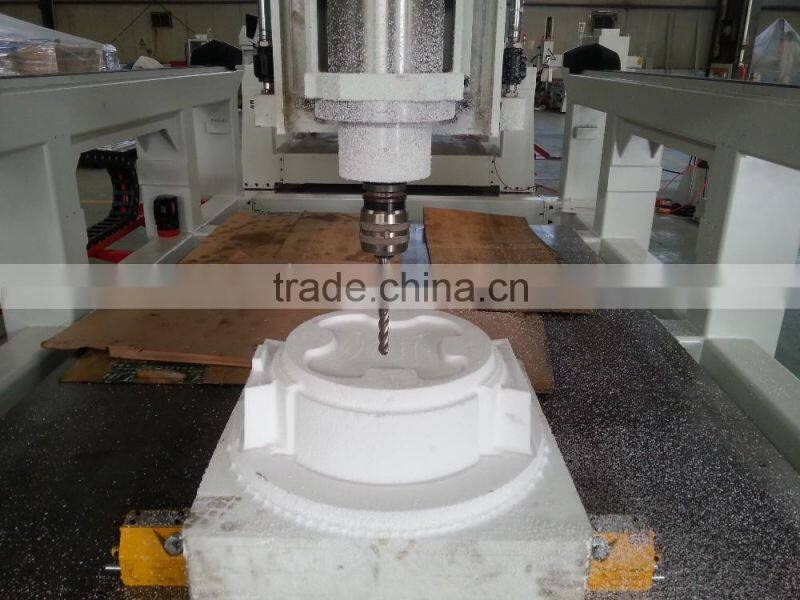

cnc foam thermocol pattern making router machine for casting
Model: CC-SF2040B-3S
Features:
1. Lathe bed is welded with thicker square tube and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed. It has the property of good rigidity and heavy loading.
2. Four-row imported ball bearing, widening linear guide rail, self-lubricating sliding block. When engraving, equal force in all directions, to ensure the accuracy and strength.
3.Three axes of the mould cnc router adopt Hiwin high precision square guide rail; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw, with high precision and longevity.
4. Z axis can be heightened to 1,000 mm, suitable for large-scale material 3D curve working.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
6. Has the function of re-carving after break point and power failure.
7. Has the function of forecasting process time.
8. Intelligent processing cross-border protection function can prevent mechanical impact caused by the improper design documents.
9. Diversified control system of the mould cnc router can control processing speed, idling speed and tool falling speed respectively, greatly improved the quality of processed products and processing efficiency.
pattern making CNC Router Applicable industries:

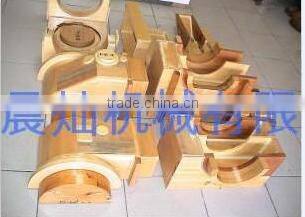

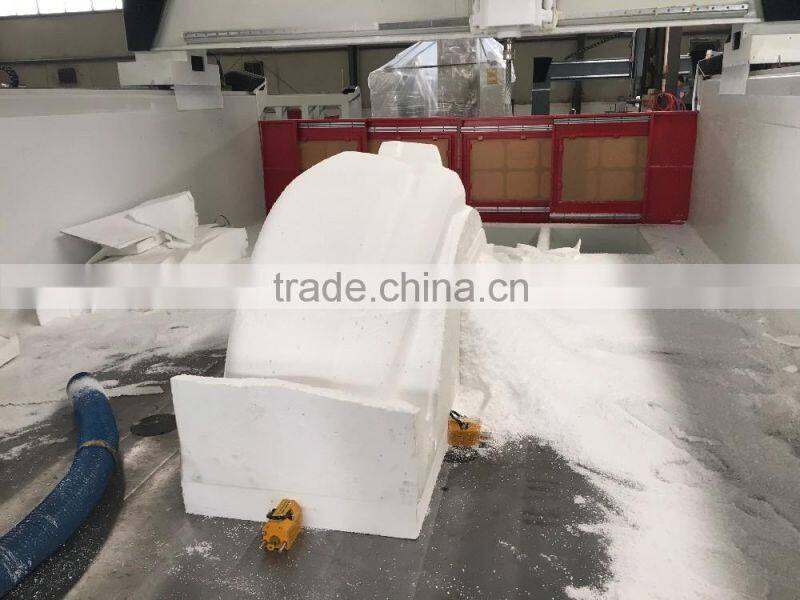

Mould industry: It engraves all kinds of large nonmetallic moulds; especially automotive foam mould, wooden ships mould, aviation and train wood moulds. And wood mould casting, food mould (such as moon cake mold) and other precision mould making.
Mould CNC RouterTechnical Parameter :
Description |
Parameter |
X,Y Working Area |
2000×4000mm |
Z Working Area |
1000mm |
Resolution |
0.15mm |
Machine Dimension |
L×W×H 3560×2600×2110mm |
Repositioning Accuracy |
0.1mm |
Lathe Structure |
Seamless welded steel structure, cast iron table |
X,Y Structure |
Rack and pinion transmission, Hiwin square guide rail |
Z Structure |
Germany-made rolling ball screw, Hiwin square guide rail |
Max. Idling Speed |
30m/min |
Spindle motor |
7.5 KW spindle motor ,machining spindle |
Spindle Rotate Speed |
0-10000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Working Mode |
Servo motor and driver |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
taiwan syntec |
Diameter of cutter |
φ3.175-φ30mm |
Cooling Mode |
Water-cooling |
Work-holding |
By clamp |
Weight |
6000KGS |
Software |
Type 3, ArtCam, Ucancam |
Q1: Installation and Debugging
Customers can get detailed operation manual and instruction video. We will make sure that customers can operate machines skillfully.
Q2: Training
Customers can get free technical training. Mainly training are as follow:
- software operation
- machine operation and maintenance
- Instruction of technical parameters, as well as their setting ranges
- solutions for common problems
Q3: Equipment Maintenance
One year free maintenance, lifelong caring
Free technical consultant and software updating
Customer Service responding in 2 hours
Continuous support with software and hardware after free maintenance
Q4: Guarantee
The guarantee period shall be 12 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
we transport the cnc router machine to you by sea or other way we negociate .
1. Payment: T/T,L/C; at least50% deposits, 50% balance before delivery
2. MOQ: 1 set
3. Warranty : 1 year
4. Package: wooden case/iron tray ,according to the size of the machine package.
duct time : 50workdays
Certificates:

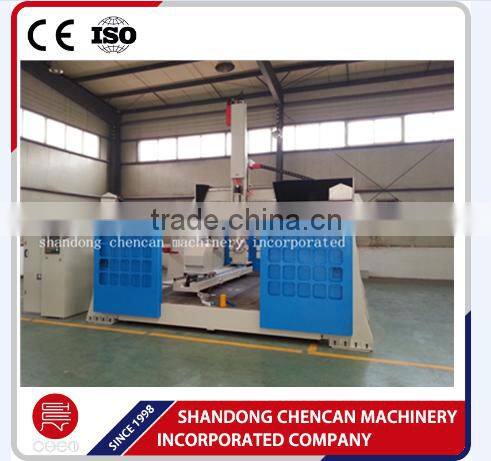

Other similar machines:

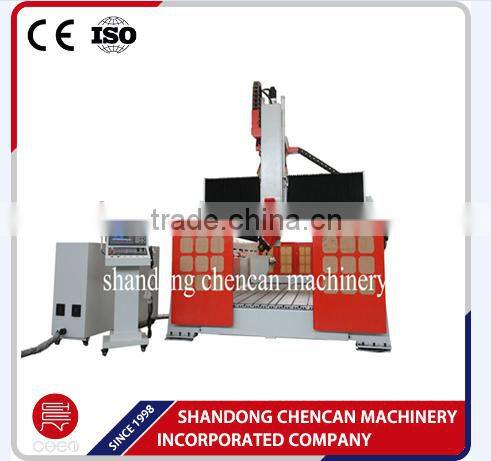

with 4th rotary spindle can rotate
Contact person: grace chen
Skype:graceqiqi3
Whatsapp/viber:+86 15166985775
Company name : Shandong Chencan Machinery Incorporated Company
Add :west mingjia road ,qihe economy development zone,shandong province
(Near jinan city ,from the factory to jinan airport ,30 minutes driving)
