HOT SALE !! 5 axis cnc machine / 5 axis cnc router for large 3d mould sculptures making
Main components of the machine
1The European CE standard production
2 Spindle motor: Italy HSD 6 KW ISO40 water cooling spindle

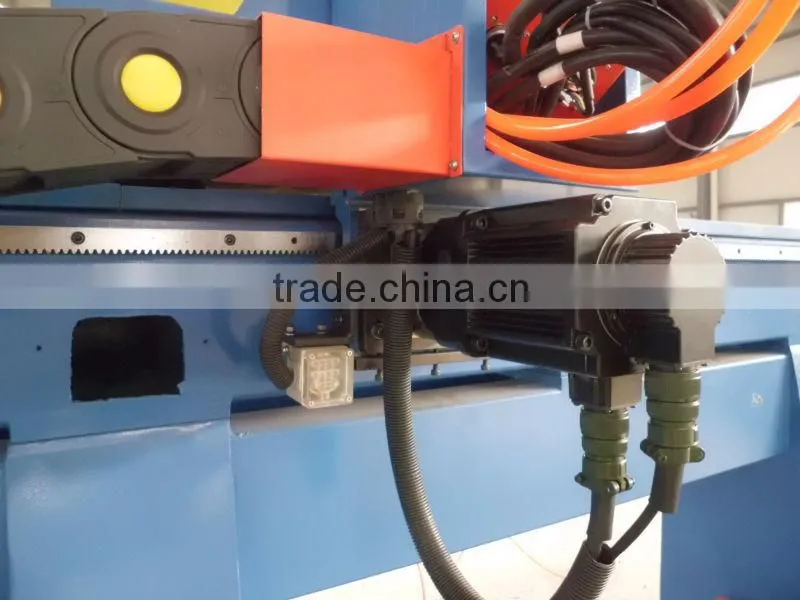

3 Drive system: Japan YASKAWA

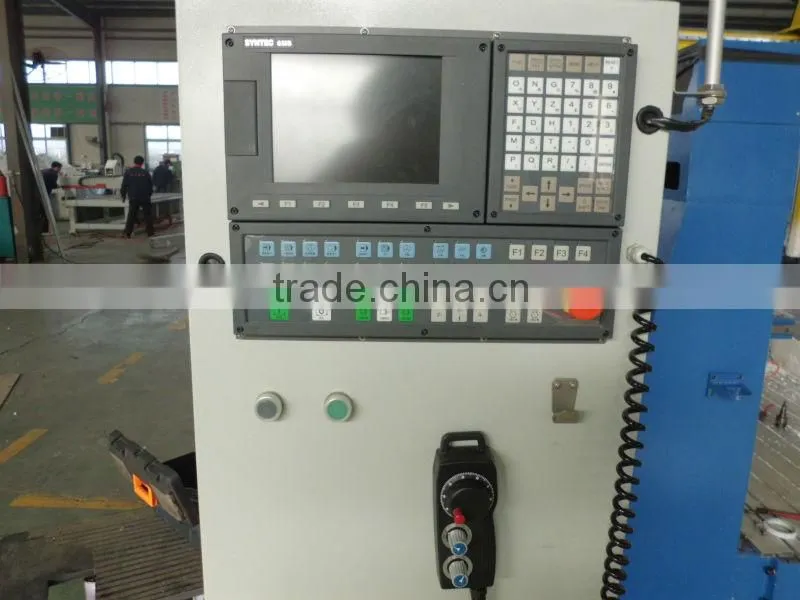

4 Control system: Syntec system
5 Inverter: Taiwan Delta
6Three-axis drive type: X axis high-precision rack, Y, Z axis ball screw, Original nut
7 Rail: Taiwan HIWIN 35MM square rails, lubrication-free lifelong
8 Cable: drag chain specific Cable, anti-jamming, anti-static; with high flexibility, long-term use will not break
9 Limit switch: Japan OMRON
10 Electrical components: France Schneider and Germany Siemens
11 Beam: steel beam stiffeners
12 Table: vacuum suction
Features:
1. This machine adopts the European Syntec numerical control system, high powerful, high processing density, and high speed.
2. All components are imported from international top brand.
3. Z axis height can be increased to 1.5 meters, large surface processing, suitable for large and mediumsized threedimensional surface processing.
4. Intelligent processing crossborder protection, to prevent the mechanical impact due to excessive design documents processing.
5. Diversity control can separately control the processing speed, idling speed, cutting speed, greatly improving the quality of processed product and processing efficiency
Applicable industry and material:
1. The mold industry: casting, automotive, wind power, ships, boats, aerospace industry, rail transport
2. The instrument industry: threedimensional surface of large musical instruments, cutting and shaping
3. Applicable materials: polystyrene foam (EPS), and wood, timber and nonmetallic carbon hybrid materials
Parameters
No |
parameter |
|
parameter |
1 |
working area |
X |
2500mm |
Y |
6000mm |
||
Z |
2000mm |
||
C |
±213° |
||
A |
±120° |
||
2 |
accuracy |
processing accuracy |
±0.04mm |
repositioning accuracy |
±0.05mm |
||
3 |
structure |
table |
cast steel |
|
|
XYZ structure |
XY rack, Z ball screw |
4 |
speed |
max speed |
≥40000mm/min |
working speed |
≥30000mm/min |
||
5 |
spindle |
power |
HSD 6 kw ISO40 |
speed |
24000rpm |
||
6 |
work mode |
|
YASKAWA servo |
7 |
work voltage |
|
AC380/50Hz |
8 |
command |
|
G code,F/S |
9 |
control system |
|
Syntec |
10 |
NET weight |
|
12000kg |
Parts
Sample
Certificates
