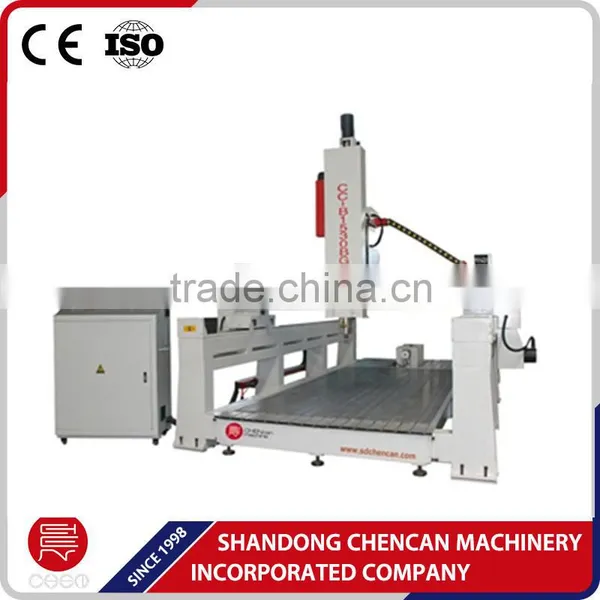

CHENCAN EPS Plywood CNC Engraving Machine/Machinery CNC Router for Sale
We pay attention to any detail of our Every set CNC Router Machine,
we provide the best Abroad Service for Every Customer
Main components of the machine
1 Spindle motor: 6kw air-cooled spindle
2 Motor: stepper motor system
3 Operating system: Original NC studio control system
4 Inverter: Fuling
5 Rail: Taiwan HIWIN square rails, lubrication-free lifelong
6 Beam: steel beam stiffeners
7 Cable: drag chain specific Cable, anti jamming, anti static; with high flexibility, long term use will not break
8 Limit switch: Japan OMRON
9 Electrical components: Schneider and Siemens
10Table: Overall welding tempered aging treatment, strong and does not distort
Part
Performance
1. Large-scale three dimensional surface modeling.
2. Z axis height can be increased the 1 meter, processing large sized, suitable for large three dimensional surface machining.
3. Intelligent processing cross border protection, to prevent the mechanical impact due to excessive design documents processing.
4. Diversity control can control the processing speed, idling speed, the cutting speed, greatly improving the quality of processed product and processing efficiency.
5. Many kinds of sizes are optional according to your request.
Applicable Industry and materials:
1. The mold industry: casting, automotive, wind power, ships, boats, aerospace industry, rail transport
2. The instrument industry: threedimensional surface of large musical instruments, cutting and shaping
3. Applicable materials: polystyrene foam (EPS), and wood, timber and non-metallic carbon hybrid materials
Service
1 Equipment installation
after the Equipment reached the user, the user must read the manual first and carry out installation,
Any need or questions, we will give you best service
2 Train
When we send the machine .we also send a CD for our customer that show them how to operate the machine and how to use the software .
If you still don’t know how to use this machine or the software . we can send our engineer to your country or you can send your engineers to our company and we train them .
the user can by call or email us any problems at any time.
3 After-sales service
One year warranty for machine maintenance,
manual to show customer how to maintain this machine
Forever service for problem-solving .
Parameters:
Model |
CC-B1325B |
Lathe body |
Thick and Hard Steel structure (sand blast & seasoning) |
X Y effective working area |
1300*2500*500mm |
Precision Machining |
0.1mm/1000mm |
Max Traverse Speed |
30000mm/min |
Max processing speed |
20000mm/min |
Table size |
1400*2700mm |
Resolution |
0.01—0.03 mm |
Spindle power rate |
6kw air cooling spindle |
Inverter |
FULING |
X,Y structure |
Rack and pinion transmission, Taiwan-made Linear Bigger orbit |
Z structure |
Germany-made ball screw |
Motor of X , Y ,Z axis |
Stepper Motor |
Guide Rail |
Hiwin—30mm |
Small Electronic parts |
Schneider |
Spindle rotating speed |
0-24000r/min |
Standard Power |
AC380V-/220V-Three Phase (Optional) |
Max. idling speed |
30000mm/min |
Cooling mode |
Water-cooling |
Command |
G code,HPGL,U00,mmg,plt |
Dust-collect function |
Yes |
Clamping mode |
By Slots |

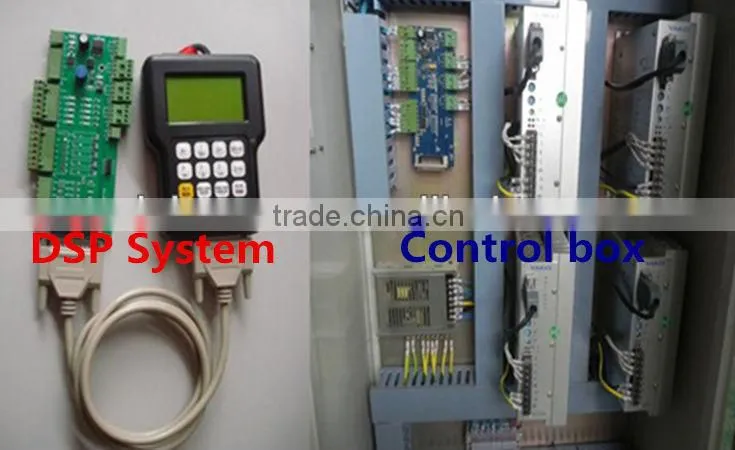

Operating system |
DSP system |
Diameter of cutter |
φ3.175-φ20 |
Working mode |
STEPPER |
