Specifications

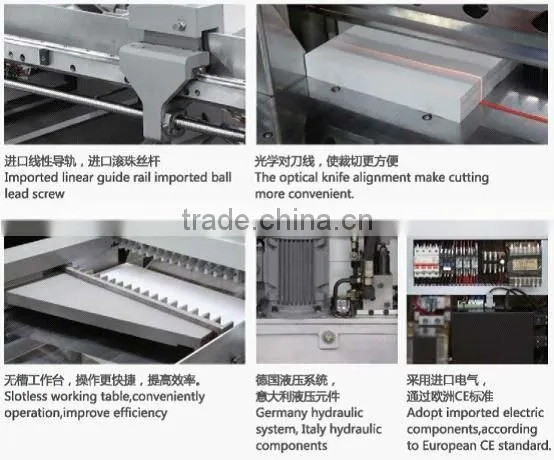

Paper Cutter1.IR Sensor protection device
2.German hydraulic system
3.Slotleless table
4.Imported components
67EF Full Hydraulic Program Control Paper Cutter
1.67EF Full Hydraulic Program Control Paper Cutter has the benchmark setting, save and self-diagnostic function. It adopt IR photoelectric protection, button by two hands safety devices; precise guide of paper impeller, aiming at back paper stopper with high angle precision.
2.The knife and clamp bar is controlled by hydraulic cylinder, the fully hydraulic transmission makes machine more safe and the imported hydraulic ensure the system stability.
3.It has the benchmark setting, save and self-diagnostic function. It adopt IR photoelectric protection, button by two hands safety devices; precise guide of paper impeller, aiming at back paper stopper with high angle precision
4.7 inches colorful display screen,the resolution rate is 0.01mm, it has self-diagnostic function of troubles and display the operating pattern, 100 program units, over than 10000 different cutting position, dynamic follow-up.
5.The max paper-pushing is 5-10m/min. It adopt imported hydraulic components, Japan, Korea electric components, imported bearing of low maintenance. It is used to cut all kinds od printing paper, kraft paper, books, leaflets, cards etc, also can be used to cut all kind of leather, artificial plastic film and foils etc.

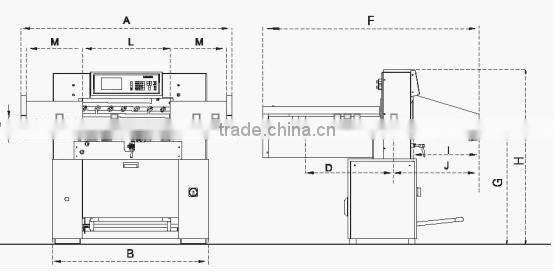

Specification |
|||
Cutting width |
L |
cm/inch |
67/26.4" |
Max.cutting height without assistance pressing plate |
K |
cm/inch |
8/3.15" |
Max. Cutting depth |
D |
cm/inch |
67/26.4" |
Min. cutting depth without assistance pressing plate |
cm/inch |
2/0.8" |
|
Extended length of working table |
J |
cm/inch |
65/25.6" |
Height of working table |
G |
cm/inch |
88.2/23.7" |
Machine width including side working table |
A |
cm/inch |
153/60.3" |
Total length of working table |
F |
cm/inch |
162/63.9" |
Cutting speed |
r/min |
20 |
|
Max. Paper pressure |
N |
20000 |
|
Power of main motor |
Kw |
1.5 |
|
Motor for paper feeding |
Kw |
0.37 |
|
Air pump |
Kw |
0.25 |
|
Machine weight |
Kg |
720 |
|
Overall dimension(LxWxH) |
cm |
185x173x165 |
|
Inch |
72.8" x68.1" x65" |
||
Blade specifications(LxWxH) |
cm |
78 x 10.3 x 1.0 |
|
inch |
30.7" x4" x0.39" |
||

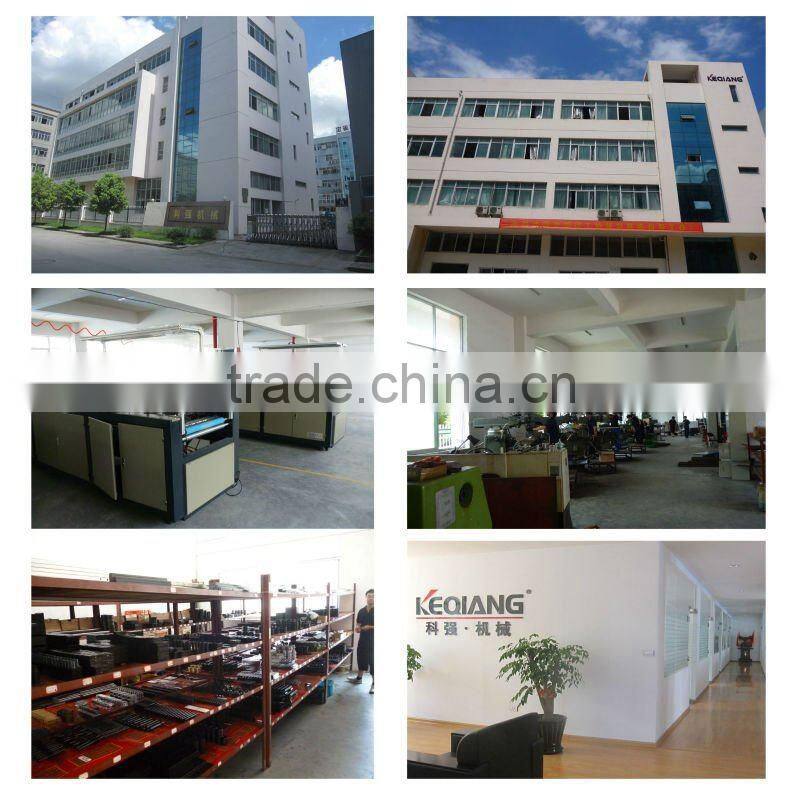

Our company
