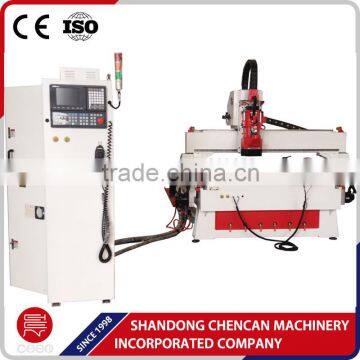

1325 ATC Woodworking Machine CNC Router/CNC Engraving/Door Making Machine
1 This is an economical processing center with linear type knife library.The main accessories of our machine are exported from world top brand.
2.It adopts Italian air-cooled spindle, drive system adopts imported servo motor.
3 Vacuum adsorption table, high adsorption power can adsorb different sizes material.
4.Intelligent protection table: to prevent misoperation or damage to the table caused by software errors. Intelligent processing crossborder protection is to prevent the mechanical impact phenomenon caused by the excessive design layout then processing format.
5.The Syntec control systems can do multi-level 3D processing automatically. It can do three-dimensional processing fast, smoothly, engraving or cutting. And can be realized off-line operation.
6.Moving gantry , machine body is whole cast, durable, prolonged use with no deformation.
1 Spindle motor: Italy HSD 9KW air-cooled spindle
2 Servo system:Japanese YASKAWA servo system
3 Operating system: SYNTEC
4 Inverter: Fuling
5 Rail: Taiwan HIWIN square rails, lubrication-free lifelong
6 Beam: steel beam stiffeners
7 Cable: drag chain specific Cable, anti-jamming, anti-static; with high flexibility, long-term use will not break
8 Limit switch: Japan OMRON
9 Electrical components: Schneider and Siemens
10 Table:Overall welding tempered aging treatment, strong and does not distort
1.Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and window
2.The wood products: voice box, game cabinets, computer tables, sewing machines table, instrument
3.plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, antiBate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4.Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper
1 |
Stroke range |
X axis |
1300mm |
|
|
Y axis |
2500mm |
|
|
Z axis |
300mm |
2 |
Process precision |
±0.05mm |
|
3 |
Reposition precision |
±0.01mm |
|
4 |
Structure |
Seamless steel structure |
|
5 |
X,y,z structure |
X, Y Helical rack and pinion, Z TBI ball screw |
|
6 |
Max Idle speed |
60000mm/min |
|
7 |
Max working speed |
30000mm/min |
|
8 |
Spindle rate |
HSD 9kw ATC spindle |
|
9 |
Spindle speed |
0-24000rpm/min |
|
10 |
Motor type |
Schneider servo motor |
|
11 |
Command code |
G code, HPGL, U00, mmg, plt |
|
12 |
Working voltage |
AC220V/380V 3phase 50-60HZ |
|
13 |
Operating system |
Syntec control system |
|
14 |
Inverter |
INVT |
|
15 |
Driver |
Schneider |
|
16 |
Collect |
ER32 |
|
17 |
Diameter of cutter |
3.175-18mm |
|
18 |
Table |
Vacuum table with T-slot, 6 vacuum zones |
|
19 |
Guide rail |
HIWIN 25mm guide rail |
|
20 |
Tool magazine |
6 |
|
1 Equipment installation
after the Equipment reached the user, the user must read the manual first and carry out installation,
Any need or questions. we will give you best service
2 Train
When we send the machine .we also send a CD for our customer that show them how to operate the machine and how to use the software .
If you still don’t know how to use this machine or the software . we can send our engineer to your country or you can send your engineers to our company and we train them .
the user can by call or email us any problems at any time.
3 After-sales service
One year warranty for machine maintenance,
manual to show customer how to maintain this machine
Forever service for problem-solving .
One set per fumigation-free wooden case
