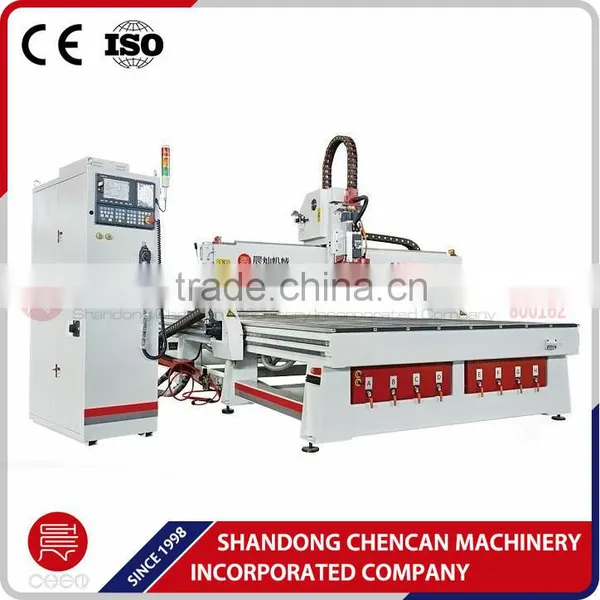

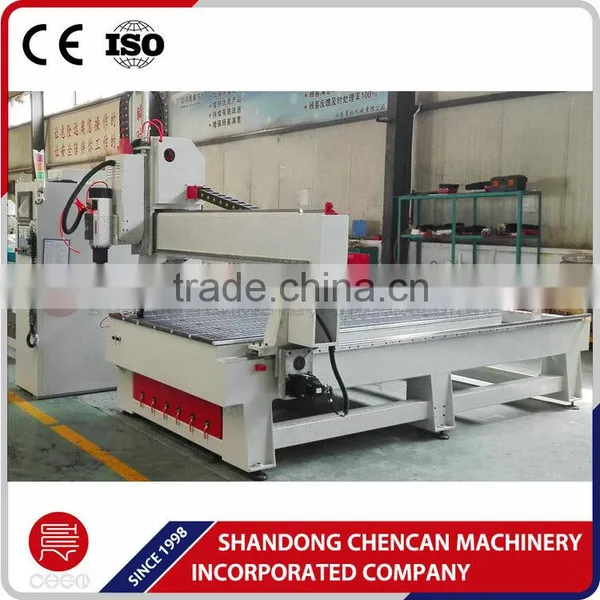

CNC Machine ATC CNC Router 1325 carousel/linear tool magzine
- 200 Set / Sets per Month
- Qingdao/Tianjin
- T/T
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | CHENCAN | Model Number: | CC-MS1325AD | Voltage: | 220V/380V |
Power(W): | varied | Dimension(L*W*H): | 1325 | Weight: | 3000kg |
Certification: | CE, ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot sale!! CNC Machine ATC CNC Router 1325 carousel/linear tool magzine
Machine Working Video: http://youtu.be/mM01LWgRBAA |
---|
Statement |
---|
This machine offers the best mix of power and speed to cut high volumes of board on a daily basis and produces outstanding cut quality on both large and small components. |
CC-MS1325AD comes standard with all the features you will need for high production CNC routing. Both the steel table frame and colossal gantry are manufactured to the highest standard. All 3 axes are powered by lightning fast, reliable and quiet Yaskawa AC Servo motors which provide the ultimate mix of torque and power. The X and Y axes run on 30mm Hiwin linear rails to ensure smooth and accurate travel. These bearings are factory-sealed and provide maintenance-free reliability. |
Cutting on the CC-MS1325AD is performed by a 9kw HSD Auto Tool Change spindle. Coupled with CNC 8-tool gantry-mounted carousel it makes multiple-tool jobs a breeze and tool-changing is exceptionally fast. |
Materials are held down with a powerful air-cooled vacuum pump and dust is efficiently removed with the CNC dust extraction system. All these components are driven by the industry renowned Syntec CNC controller. |
Technical Paramters | |
---|---|
X Y working area | 1300*2500mm |
Z working area | 300mm |
Precision | 0.01mm |
Cutter diameter | 3.175-20mm |
Spindle | Air cooled ATC HSD 9kw |
Max idling speed | 50m/min |
Power supply | 380V/220V, 50HZ-60HZ,3ph |
Motor&driver | Japanese Yaskawa |
Operating System | Taiwan Syntec |
Command | G code (HPGL, U00, mmg, plt) |
Fixing | By suction or clamps |
Tool Magazine | Circle Tool gantry-mounted type 6-10 tool positions |
X,Y Transmission | Diagonal rack and pinion, gear drive Taiwan Hiwin 30mm square guide rails |
Z Transmission | Germany made rolling ball screw Taiwan Hiwin 30mm square guide rails |
Inverter | Delta |
Optional | Alignment pop-up pins/stoppers Gang drill blocks |
Main Parts |
---|
Company promotion video: http://youtu.be/OjzH7NMGbH4 |
Application | |
---|---|
Wood processing | Processing of various furniture such as door, window, cabinet, screen and so on |
Advertisement | Engraving and cutting various labels and number plate. |
Art craft | Engraving characters of any languages and graphics on gifts and souvenirs. |
Applicable materials | |
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials. | |
Processing effect | |
Engraving, cutting, drilling, milling, enchase, relief, etc. | |
Samples | |
Service and Guarantee |
---|
1. Technical supports and suggestions before you order a machine according to your work piece. |
Part Replacement |
Customers have to send the broken parts to us within one week to our factory address: |
FAQ |
---|
1. I never use this kind of machine before, is it easy to learn? |
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. |
2. If the machine has problems, what can you do to help? |
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. |
3. How does it work? |
Under CNC Machining, machine tools function through numerical control. A computer program is customized for an object and the machines are programmed with CNC machining language (called G-code) that essentially controls all features like feed rate, coordination, location and speeds. With CNC machining, the computer can control exact positioning and velocity. |
4. How could I know if this machine is suitable for me? |
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. |
