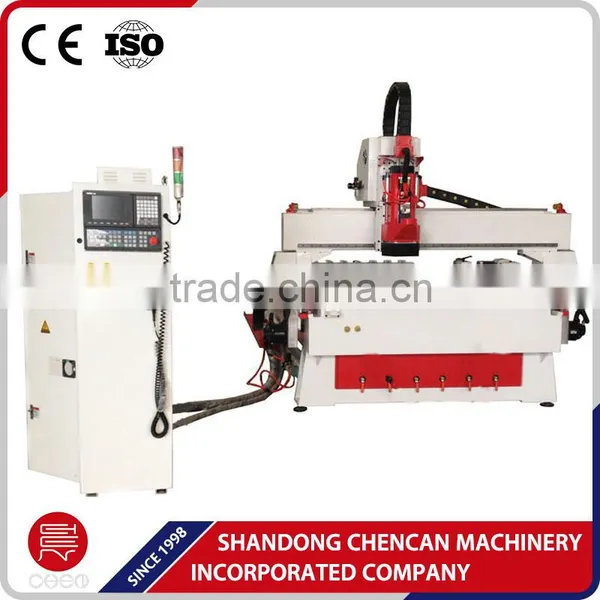

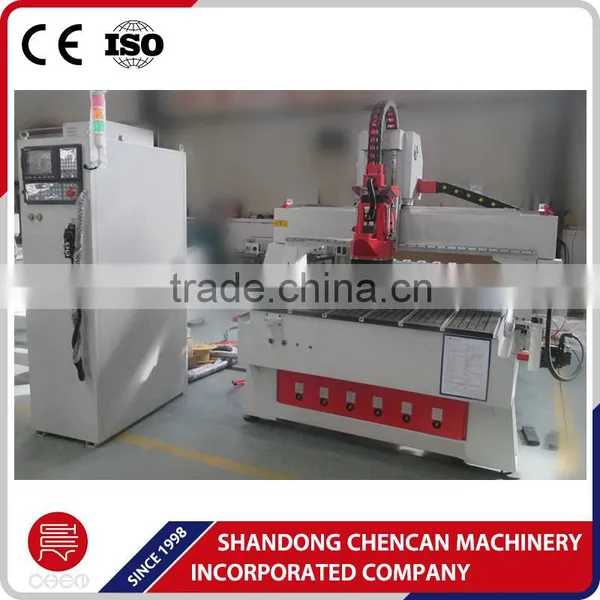

ATC cnc router 1325 in wood router
Model: CC-MS1325AC

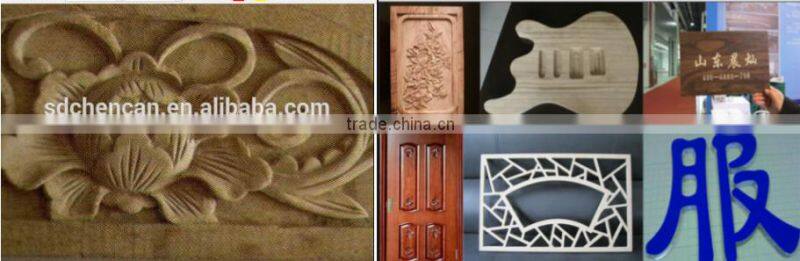

Wood processing: Processing of various furniture such as door, window, cabinet, screen and so on.
Advertisement: Engraving and cutting various labels and number plate.
Art craft: Engraving characters of any languages and graphics on gifts and souvenirs.
Materials :Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Features of Automatic tool change spindle cnc router

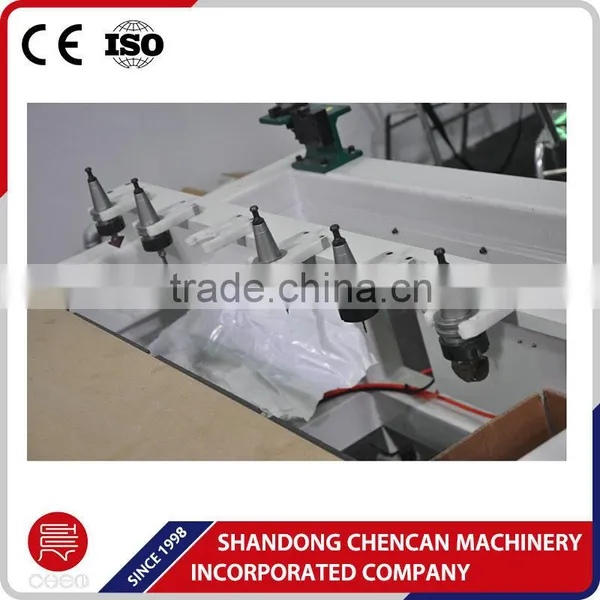

1. Circle style ATC cnc router with 8 pieces of tools in total. It takes only 8 seconds to change the tool.
2. Adopt Italy-made air-cooled spindle with strong power of 9.0KW, so the machine can keep working for long-time without fault.
3. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost. Z axis adoptsGermany-made ball-screw and Taiwan Hiwin H30 square orbit, with high precision and longevity.
4. Excellent compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5. The gantry of the CNC Wood Process Center is made of steel, unlike others who adopt aluminum materials. Steel gantry has better stability than aluminum ones.
6. Advanced Taiwan SYNTEC control system with separate keyboard and color LCD screen makes the operation easier, and the auto tool change system makes the operation safer and convenient.
7. Adopting high-torque Japan YASKAWA servo motor and driver, greater accuracy and stability.
8. Manual oil-injection system makes the maintenance more convenient.
9. ATC cnc router adopts vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23 cube meters /hour.
10. ATC cnc router has the function of re-carving after break point and power failure.
11. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Mastercam, Type3,Arecam) .
thank you for your interest in our CNC routers, please contact me directly as following:
Andong Liu
Sales Manager
Shandong Chencan Machinery Incorporated Company
Address: West Mingjia Road, Qihe Economic Development Zone, Shandong, P.R.C.
Skype:pei.liu93
Whatsapp/Wechat::008615053485799
Tel:0534 8997233
Fax:0534 8997237
Mob:0086 15053485799
QQ:1326820689
