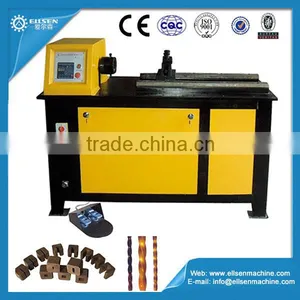

Blacksmith Twisting Machine Flat Steel Square Steel
US$ 1,700 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
ELLSEN
Model Number:
EL-DN25C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EL-DW16D Wrought Iron Scroll Bending MachineUS$ 1,600 - 2,500MOQ: 1 Set -
EL-DW16C Metal Craft Pattern Bending MachineUS$ 1,500 - 2,000MOQ: 1 Set
-
EL-DN25D Wrought Iron Twisting MachineUS$ 1,800 - 2,200MOQ: 1 Set
-
EL-DN25C Metal Craft Torsion And Twist MachineUS$ 1,500 - 1,900MOQ: 1 Set
-
EL-DL60A Wrought Iron Embossing MachineUS$ 5,000 - 6,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
ELLSEN
Model Number
EL-DN25C
After-sales Service Provided
Engineers available to service machinery overseas
Blacksmith twisting machine flat steel square steel
| Model | EL-DN25C | EL-DN25D | |
| Enclosed Dies | 6 kinds for square steel, 3 kinds for flat iron | 6 kinds for square steel, 3 kinds for flat iron, 4 kinds for basket making | |
| Max Working Ability | Length | ≤200-800mm | ≤200-800mm |
| Specification | ≤25mm×25mm | ≤25mm×25mm | |
| Motor Performance | Power: 4KW Voltage: 220V/380V/415V/440V | ||
| Packing Dimension | 1400*620*1100mm | 1420*640*1130mm | |
| N.W. (kg) | 550 | 600 | |
| G.W. (kg) | 600 | 650 | |
1. Manual setting and automatic repetition, guaranteeing the product processing homogeneity and reducing labor time and intensity.
2. Spindle Speed uniform, bending coarse and ensure that the smaller profile, the machine can play the most effective role in its function
3. It is easy to change the dies, only need several seconds.
4. The max working ability is 25*25 square steel. And it can twist 4pcs together of φ12mm round steel or 12*12mm square steel together.
5. It can twist 200-800mm pretzel. If the length exceeds 800mm, we can twist the part by segmentation method. With high production efficiency,
it can twist 600pcs of 12*12mm square steel per hour.
