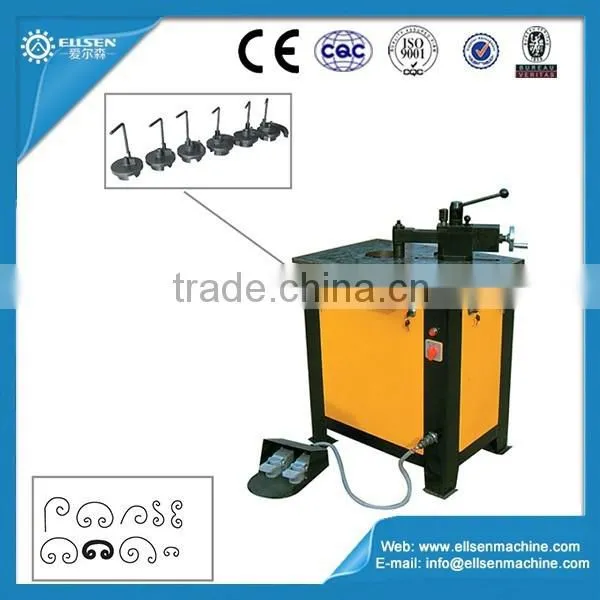

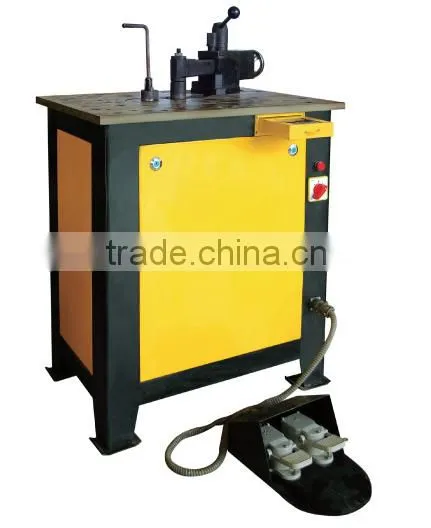

EL-DW16C Metal Craft Pattern Bender Machine
EL-DW16C Metal Craft Pattern Bender Machine is improved from EL-DW16A electronic pattern bender. it based on EL-DW16A to improve the program controlled as PC , The machine is making as automatic design, program controlled orienting. Automatic withdraw material and program controlled brake, that keep the samples are all the same. stop shoving ensures keep the machine never crashes. the high working ability can bend 16x16mm square steel. the speed is 1.5 times than before. It is greatly reducing the labor intensity and improve work efficiency.
| Technical parameter of EL-DW16C Program Controlled Pattern Bender | |||||
| Model | EL-DW16C | ||||
|
Max Work Ability |
Flat iron | ≤8x50mm | |||
| Square steel | ≤16mm | ||||
| Square tube | ≤16x16mm | ||||

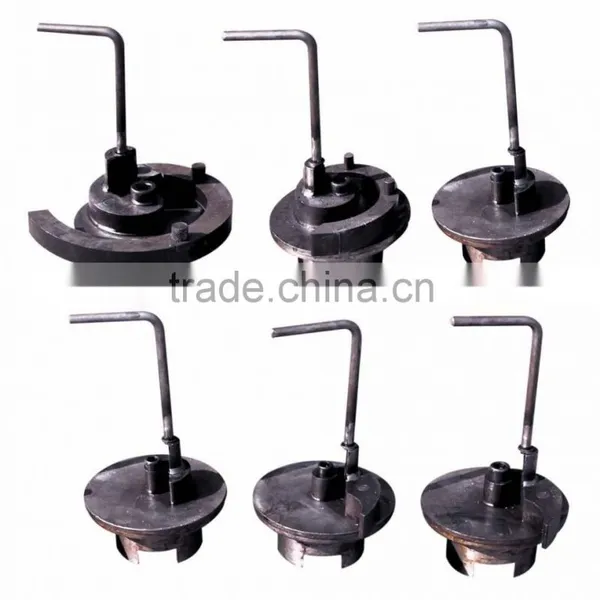

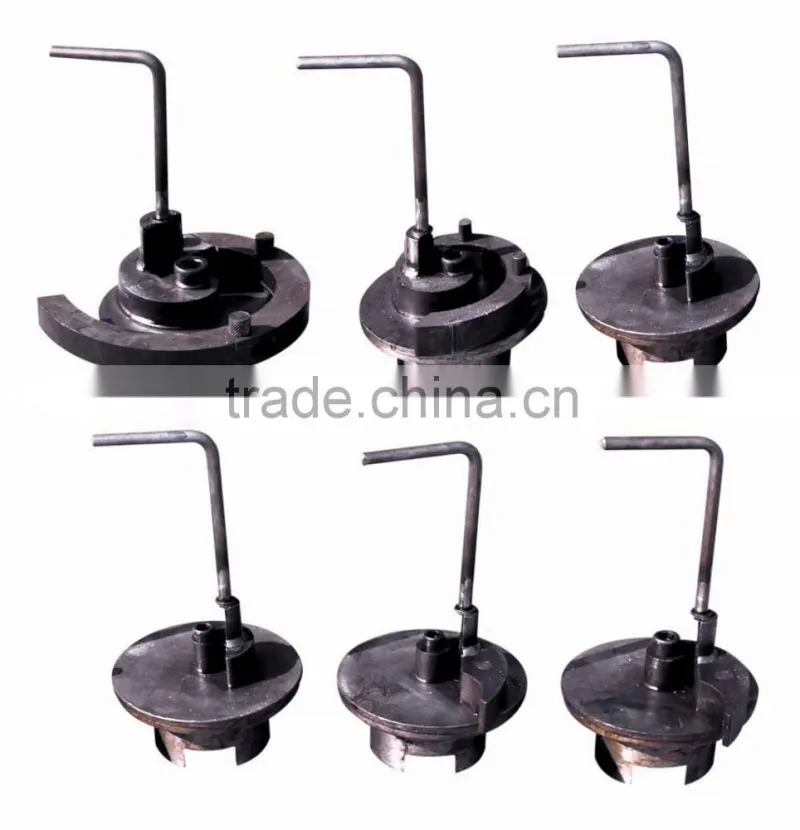

| Enclosed Dies |
6 sets bending dies |
||||
| Motor Performance | Power: 2.2KW Voltage: 220V / 380V / 415V / 440V | ||||
| Main features |

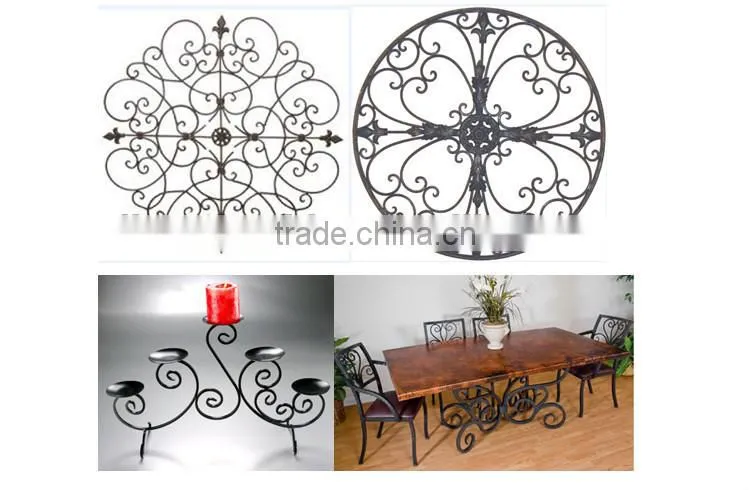

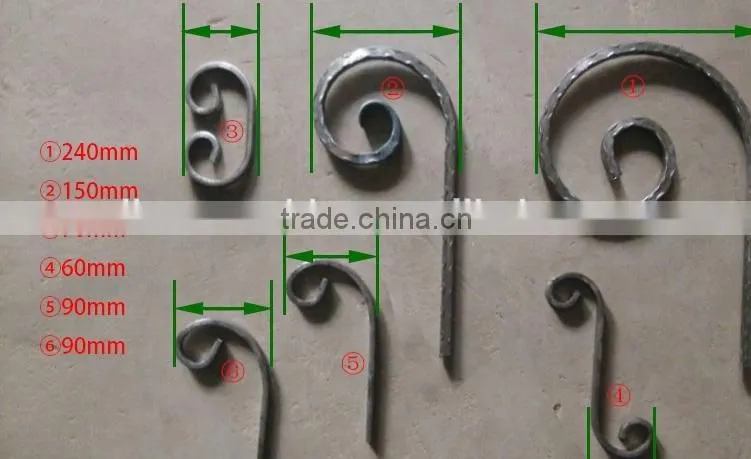

1: Die novelty designed, surface smooth, mold our spread a large space, convenient for operation. 2:It is convenient for changing dies . 3: The high working ability can bend square steel 16x16mm 4: High produce efficiency , it can bend C sample as 20x6mm 450pcs per hour. 5: Comprehensive function, it can bend all kinds and specification of C.P. and S patterns, The machine fit for processing product pattern of all kinds and sizes, is equipped with three kinds of holdup wheels |
||||
| Packing Dimension | 1000x700x1200mm(LXWXH) | ||||
|
Weight |
450KGS |
||||
Zhengzhou Ellsen is a manufacturer focusing on design, production,sales and sales service. with more than 18 years experience in the branch of manufacturing ornamental iron machine: Cold rolling embossing machine, Program controlled pattern bender, program controlled twist and torsion machine, Hot roll fishtail mill and steel cutting machine Etc. All our range of machines and accessories are completely manufactured at Ellsen. Our products have been exported to USA, Australia, England, Russia, India, Pakistan, Bengal, Philippine, Australia, Malaysia, etc. more than100 countries and regions. Quality first and customer first is our forever aim. Every machine with high strict quality control and commissioning before delivery, any question about the machine use and maintenence in use will be attentioned within 24 hours. Welcome you to be our new client!
Q1: What kinds of payment can you accept?
A1: We can accept payment term: T/T, L/C, Western union,Trade assurance, Escrow, Paypal, Moneygram, Creditcard, D/A, D/P, etc.
Q2: MOQ?
A2: One set is ok.
Q3: Delivery time?
A3: If in stock,3 days;If not in stock,5~8 days.
Q4:Can you accept OEM/ODM ?
A4:Our products can be customized design for our customer by OEM/ODM.
Q5:How do you guarantee your products quality?
A5:Normally,our products warranty within one year;we are free to provide extra quick-wear parts.
