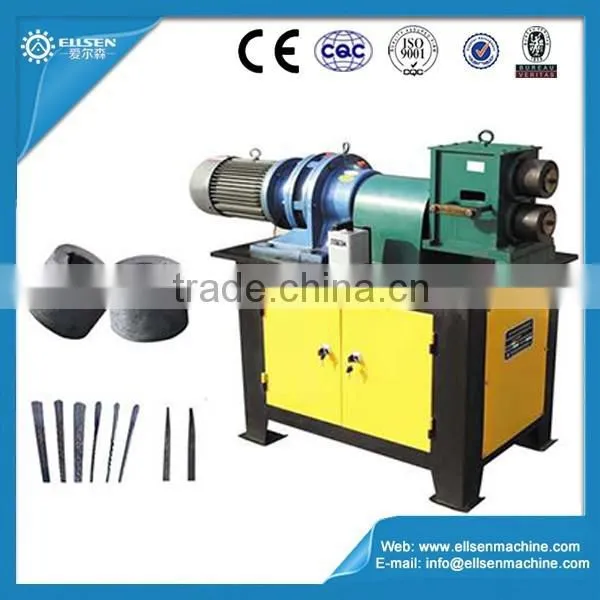

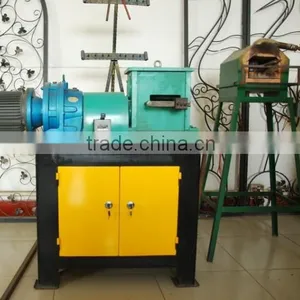

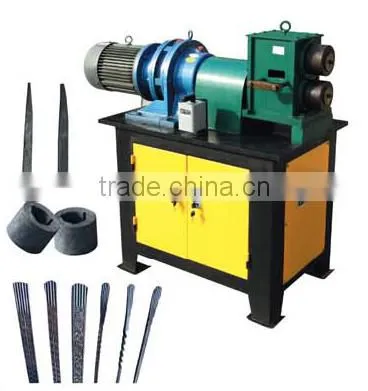

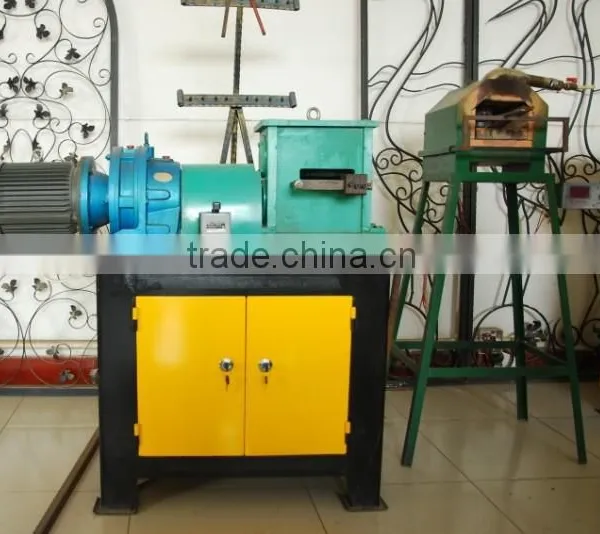

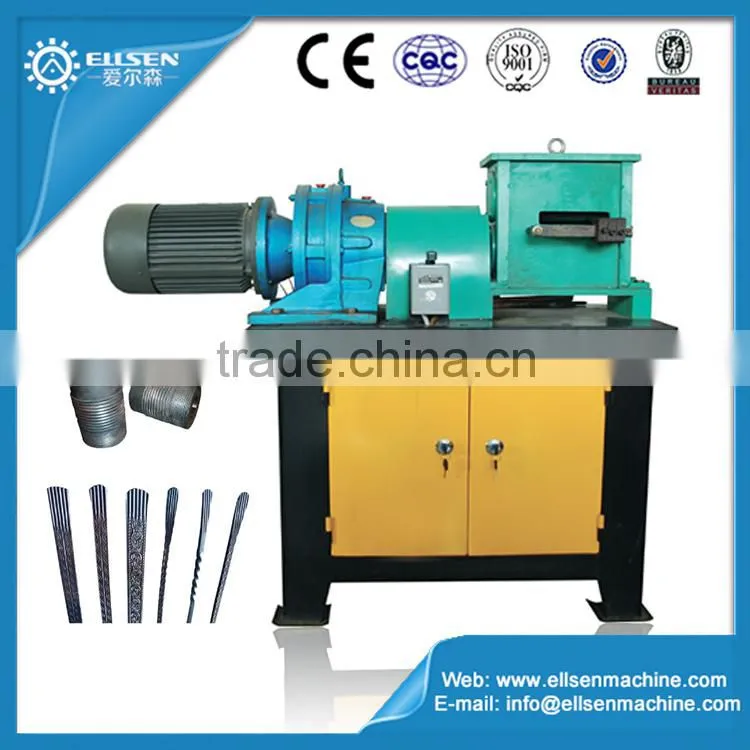

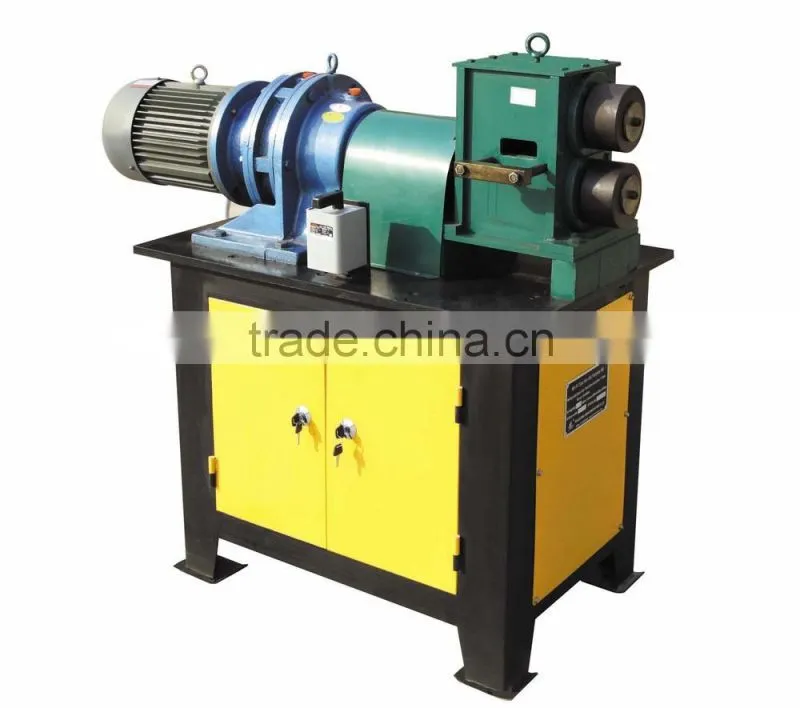

EL-F4 Hot roll fishtail machine
Specification:
Item No: EL-F4 Hot roll fishtail machine
Power:2.2KW
Voltage: 380V / 220V / 415V / 440V
Max work ability:
Flat steel ≤8x50mm
Round steel ≤dia16mm
Square steel ≤ dia 16x16mm
EL-F3 hot-roll fishment mill: kindly click the picture you will know more about this machine

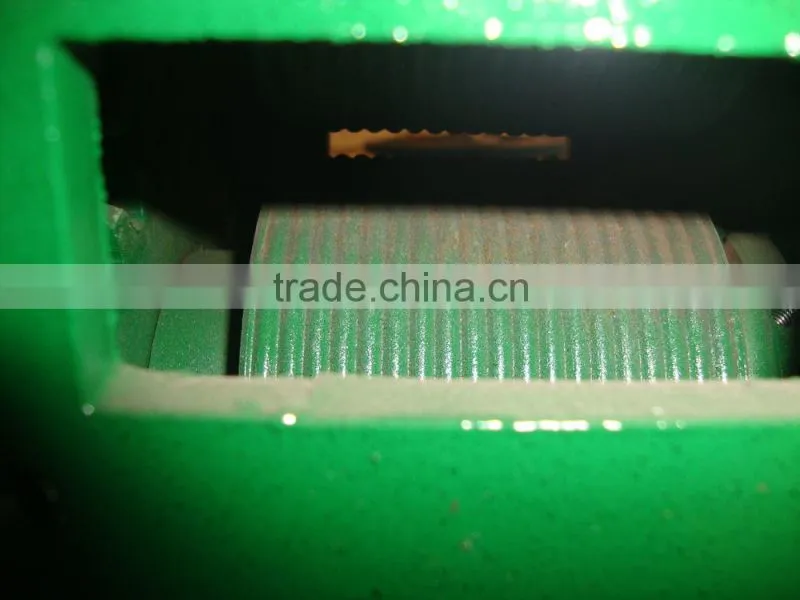

EL-F4 Hot roll fishtail machine is the newest type machine in the result of our R&D trial and experienced-test . it is based on the improvement in the part of rolling material of EL-F3 type changed eccentric roller into eccentric shaft, three-fold in one roller in order to increase three working life than the others, the flat roller added in outer side can make the square bar and round bar be sharp points and press-flat. The machine operating work is more convenience, also easy to change the rollers(including thin-line and flat-line) with the machine on free cost (the other rollers can be made and chosen according to the customers' )
| Technical parameter of EL-F4 Hot roll fishtail machine | |||||
| Model | EL-F4 | ||||
|
Max Work Ability |
Flat steel | ≤8x50mm |
|||
| Round steel | ≤dia16mm | ||||
| Square steel | ≤ dia 16x16mm | ||||
| Moulds |

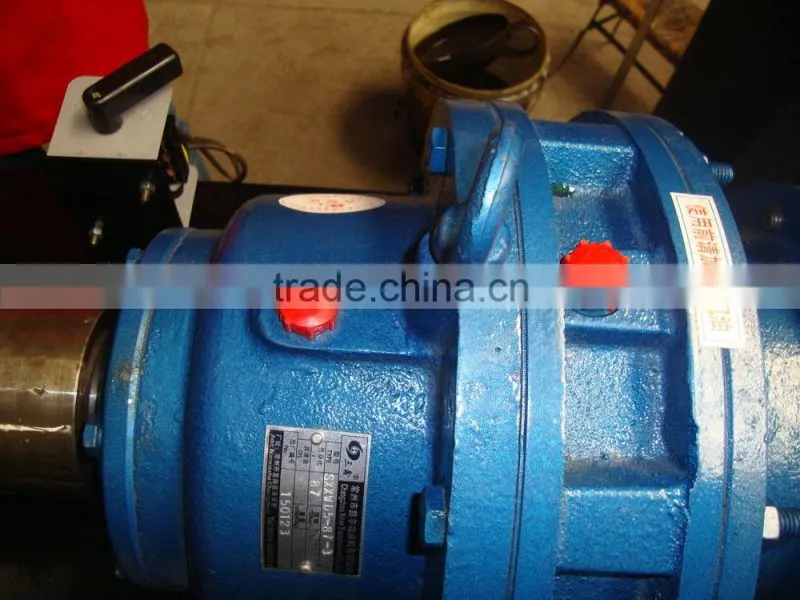

1: There is no need to beat flat the materials to process, thus the material end having been heated we can finish its fishtail decoration production directly by this machine, the machined material end becomes wider and thinner with the thickness not more than 2mm, 2: Made with cycloidal pinwheel reduction box the machine has large torque, special way is adopted for the torque transmission between the gear box and working case. ensuring smooth and reliable mechanical operation. 3: The imported material clamp apparatus has the following advantages: being adjustable , flat and straight guide , and the finished fishtail veining being straight. 4: on the back holdup plate of the machine, there is a rolling size localization device, we can according to the product requirement select the rolling length localization size and achieve the optimum result. 5: When we process 10mm or more material, we can use the coarse rolling mechanism of the machine and then get the beautiful moulding fishtail pattern. 6: The machine has large processing range and high production efficiency, and call roll 300pieces of 8x40mm flat iron parts per hour . 7: The roller material has very good quality and long lifespan, and each roller can roll at least 100 thousand pieces.
|
||||
| Power:2.2KW Voltage: 380V / 220V / 415V / 440V | |||||
| Packing dimension | 1220x600x1250mm (LXWXH) | ||||
| G.W / N.W | 290kgs / 340kgs | ||||
Zhengzhou Ellsen is a manufacturer focusing on design, production,sales and sales service. with more than 18 years experience in the branch of manufacturing ornamental iron machine: Cold rolling embossing machine, Program controlled pattern bender, program controlled twist and torsion machine, Hot roll fishtail mill and steel cutting machine Etc. All our range of machines and accessories are completely manufactured at Ellsen. Our products have been exported to USA, Australia, England, Russia, India, Pakistan, Bengal, Philippine, Australia, Malaysia, etc. more than100 countries and regions. Quality first and customer first is our forever aim. Every machine with high strict quality control and commissioning before delivery, any question about the machine use and maintenence in use will be attentioned within 24 hours. Welcome you to be our new client!
Q1: What kinds of payment can you accept?
A1: We can accept payment term: T/T, L/C, Western union,Trade assurance, Escrow, Paypal, Moneygram, Creditcard, D/A, D/P, etc.
Q2: MOQ?
A2: One set is ok.
Q3: Delivery time?
A3: If in stock,3 days;If not in stock,5~8 days.
Q4:Can you accept OEM/ODM ?
A4:Our products can be customized design for our customer by OEM/ODM.
Q5:How do you guarantee your products quality?
A5:Normally,our products warranty within one year;we are free to provide extra quick-wear parts.
