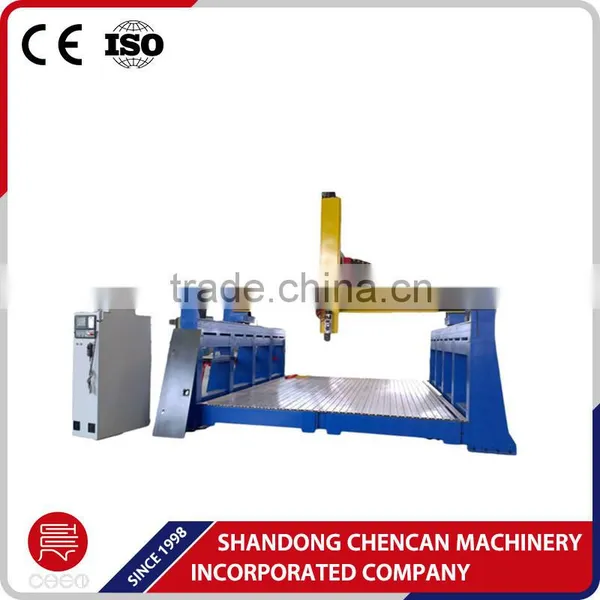

special designed cnc processing center 5 axis 3d foam cutting machine

Name: special designed cnc processing center 5 axis 3d foam cutting machine
Brand: CHENCAN
Price: USD $45,000 - 80,000 / Set

FOB Price

USD $45,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 150 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

CNC or Not:	CNC	Place of Origin:	Shandong, China
Brand Name:	CHENCAN	Model Number:	CC-SF1530B-S5	Voltage:	220V/380V
Power(W):	9KW	Dimension(LWH):	15003000300mm	Weight:	2400KGS, 2800kgs
Certification:	CE ISO FDA	Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Applicable Industries

● Wood, EPS (Any kind of foam) and non-metallic materials.

● Mold industries: sculpture various large non-metallic mold can be particularly suitable for any kind of foam (EPS) mould, wooden ship model, wooden model aviation and other wooden mould

● Foam industry: Can carve and cut on any kind of foam (EPS), do 2D and 3D dimension processing.

● Cubic sculpture Field: used for making big size non-matel sculpture, City Palza sculpture, Advertising sculpture, Hotel sculpture, etc.

Model	CC-SF1530B-5S	CC-SF2040B-5S
Machine structure	Thick steel tube, vibration stress relief and tempering processed
Working table	Alu.T slot with Clamps
Table working size	X/Y/Z: 15000x3000x1000mm, C: 180° freely
Working area	1500x3000x1000mm
Working mode	Servo Mode
Operating system	Taiwan SYNTEC control system
Spindle motor	Italy made HSD 4.5kw ATC spindle By Air-cooled, 0-24000r/min
Transformer	Delta 11KW
Control system	Taiwan 5axis Syntec
Rotary Diamenter	100mm-600mm
Working mode	France Schneider/Japan Yaskawa 2KW Servo
Gear reducer	France MOTORVARIO two stage reducer
Transmission	X/Y axis: Taiwan HIWIN 35mm guide rails with tapers, Taiwan YYC helical rack
Software	CAD/DAM, Type3/Artcam/Powermill/UG
Standard Power	AC380V/220V three phase(Optional)

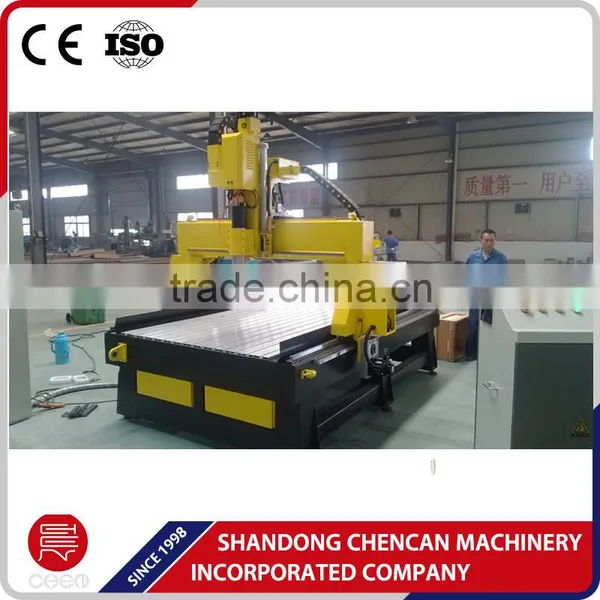

Detailed Images

Why we are better than the other factories?

Seamless steel structure

Whole machine is welded with seamless steel structure, excellent stability, not easy to be deformed.

Germany-made cable

All cable is used with Germany brand IGUS, high temperature resistance, and Resistance to fracture

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Spindle

Italian ATC HSD spindle and boring unit, that can finish several works at a time, such as drill holes at vertical and side surface, saw cutting. Circular-type tool magazine holds 8pc tools which can be changed stably

Guide Rail

All axes use original Taiwan Hiwin Big size guide Rail. X and Y adopts big size rack with Helical gear transmission mode, the moment of force will be transfered

Control System

Adopting the top-brand and best quality Taiwan-made Syntec 5 axis control system, separate keyboard control system and color LCD screen makes the machine have perfect performance special designed cnc processing center 5 axis 3d foam cutting machine

We have more videos and pictures to share with you!

Videos cannot be put onto this website, so if you are interested with our product, pls contact us for more infomations about our factory and products!!!

Certifications

Owning the most qualified Safety Inspection Standard

model carving promotion price for 5 axis cnc router

Our Service

Pre-Sales Service

* Bigeest and highest level matel pasrts machining capacity

* Testing with the most complete testing machines

* The most professional assembling platformand workshop

* Providing safety package and transport

After-Sales Service

* Excellent and sincere technology research team

* Engineers available to service machinery overseas

* 1 year warranty

special designed cnc processing center 5 axis 3d foam cutting machine

Our Company

Shandong Chencan Machinery Incorporated Company bulid in 1998, is one large High-Tech enterprise which specialized in designing, developing, and producing various cnc machine and gantry machining centers. Our company own more than 100 sets of CNC machining equipments with many different models. Welcome you sincerely to have a visit.factory supply 4.5KW 1325 cnc router pro with rotary axis
