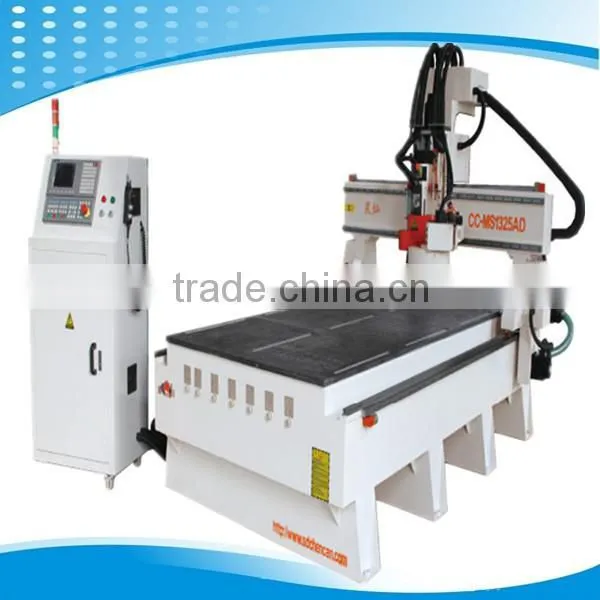

Wood Working 1325 ATC CNC Router Machine/Machinery CNC Machine for Sales CC-MS1325AD
Standard Features:

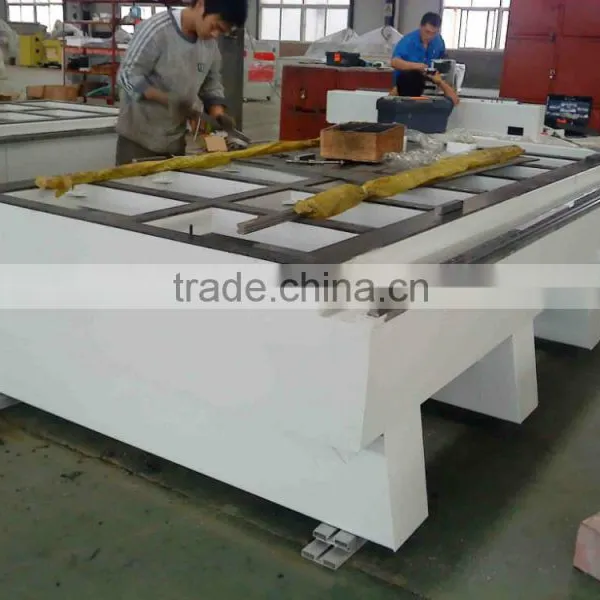

1. Whole machine is welded with seamless steel structure; the stability is excellent, not easy to be deformed.
2. Z axis adopts Germany-made ball-screw and Taiwan made H30 linear orbit, with high precision and long lifetime. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost.
3. Excellent compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.

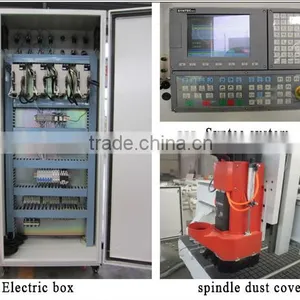

4. Adopting Taiwan-made Baoyuan control system, separate keyboard control system and color LCD screen makes the machines have perfect performance.

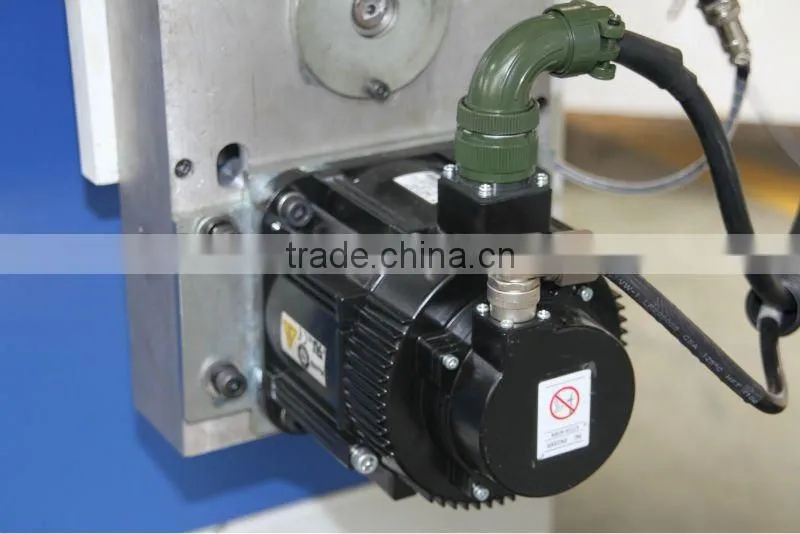

5. Adopting high-torque Japan-made YASKAMA servo motor and driver, with steady working capability and high positioning precision.

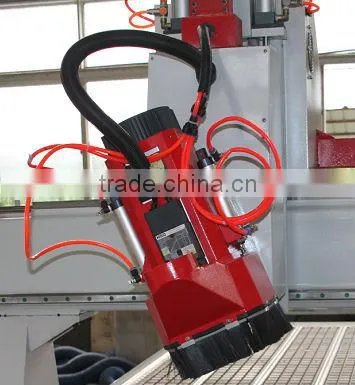

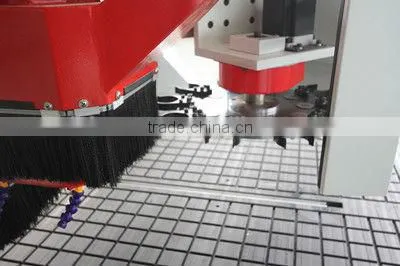

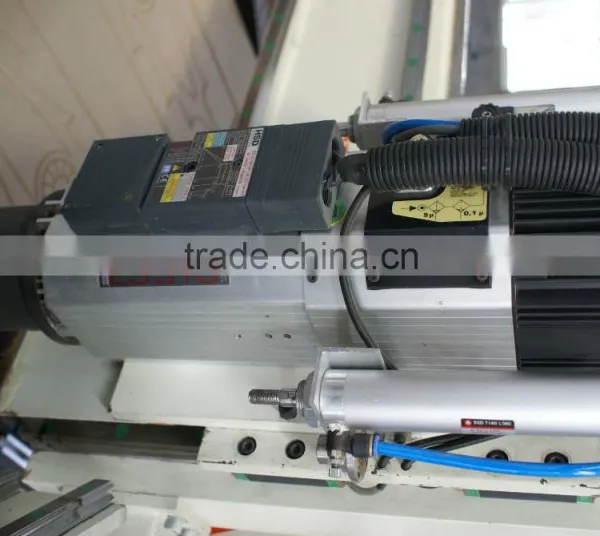

6. Adopting Italy-made HSD air-cooling spindle make the machine have high precision, long life-time and steady working capacity. Auto-tool changer system makes the machine safer and save time.
7. Auto oil-injection system makes the maintenance more convenient.
8. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23/hour.
9. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
10. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Mastercam, Type3,Arecam) .Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and speed and precision of curve lines.
Technical Parameter:
Model |
CC-MS1325AD |
Lathe body |
Steel structure |
X Y working area |
1300*2500mm |
Table size |
1440*3040mm |
Resolution |
0.005mm |
Spindle power rate |
Italy made HSD 8.0KW |
Spindle rotating speed |
0-24000r/min |
Power |
AC380V/50Hz |
Max. idling speed |
75m/min |
Max. feeding height |
300mm |
Cooling mode |
Air-cooling |
Command |
G code,HPGL,U00,mmg,plt |
Dust-collect function |
Yes |
Clamping mode |
By suction |
Vacuum Pump |
Germany BECKER 5.5KW |
Guide Rail |
HIWIN30 Taiwan |
Operating system |
Taiwan-made Baoyuan system |
Diameter of cutter |
φ3.175-φ12.7 |
Milling head |
Four Germany BENZ |
Working mode |
Taiwan Servo System |
Driver Machine |
Japan YASKAWA |
Cutter quantity |
Dish-style auto-tool changer system with 8 pieces of cutter |

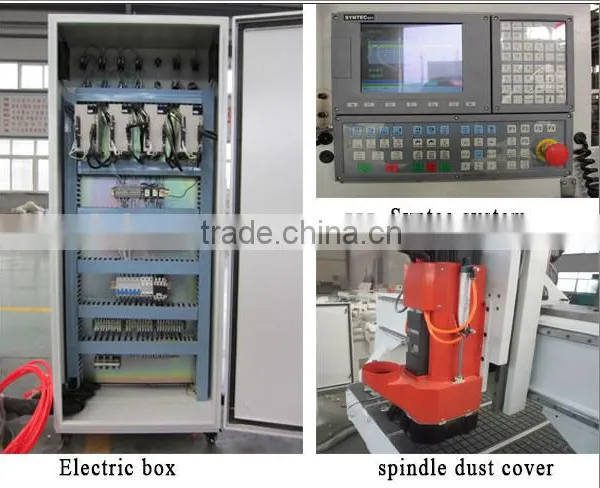

Spre Parts:
Samples:
Certificates:

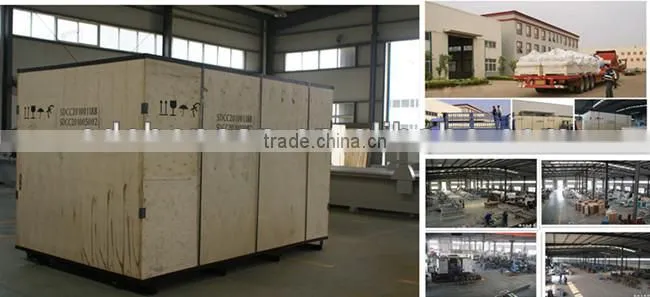

Package:
