Bar cutting machine is one kind of steel bar processing machine, mainly used for cutting carbon steel, cold and hot round steel,
screw hread steel, deformed steel, flat steel , angle steel and square steel in construction project. It can be classfied
GQ40,GQ50,GQ60,GQ70 model bar cutting machine according to max working capacity 40mm, 50mm, 60mm and 70mm.
1. Move easily. small size,compact structure, solid fuselage. With scrollable casters it can be moved easily and flexibility.
2. Good lubricating properties.It adopts full close structure and lubricates by using gears splash.
It can operate more than three months continually if it is added oil(8-10kg) at a time.
3. Little power loss. For lubrication conditions improving,gear-side uses rolling bearing, the resistance is small,
compared with the similar cutting machine with load power can reduce by one third.

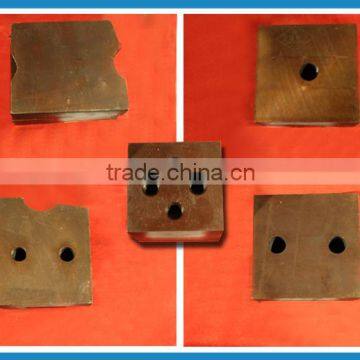

4. Work longer. It adopts the high steel knife block,connecting rod, high-speed international standard motor, its quality is more stable and it will last longer.
| Technical parameter of bar cutting machine | |||||
| Model | GQ40 | GQ50 | GQ60 | GQ70 | |
| Cutting range | Carbon steel | ≤Φ40mm | ≤Φ50mm | ≤Φ55mm | ≤Φ65mm |
| II-grade deformed steel | ≤Φ32mm | ≤Φ42mm | ≤Φ42mm | ≤Φ50mm | |
| Cutting Specification | Flat Steel | 70x15mm | 80×18mm | 80×18mm | 80×18mm |
| Square Steel | 32x32mm | 40×40mm | 40×40mm | 40×40mm | |
| Angle Steel | 50x50mm | 63×63mm | 63×63mm | 63×63mm | |
| Cutting Frequency | 32times/min | 28times/min | 28times/min | 25times/min | |
| Power of Motor(KW) | 2.2/3 | 4/3.0 | 5.5KW-2P | 11 | |
| Motor Speed(r/min) | 2890 | 2890 | 2890 | 1440 | |
| Rated Voltage(V) | 220V~440V | 220V~440V | 220V~440V | 220V~440V | |
| Dimension(mm) | 1250×500×730 | 1420*530*850 | 1800x500x970 | 1550×750×1000 | |
| Whole Weight(Kg) | 450 | 580 | 800 | 1300 | |
| Above parameter just for your reference,if any other special demands,can be customized design based on your demands. | |||||
Zhengzhou Ellsen is a focous on design, production,sales and sales service manufacturer .At present,our factory professional manufacture bar bending machine,bar cutting machine,stirrup bending machine,straightening cutting machine,wrought iron machine. Our products has passed CE,GL,ISI,SGS,etc certificates and our product with high strict quality control and professional check system.Our products have been exported to USA, Australia,England,Russia,India, Pakistan, Bengal, Philippine, Australia, Malaysia, etc,more than100 countries and regions.
Q1:What kinds of payment can you accept?
A1:We can accept payment term:T/T,L/C,Western union,Trade assurance,Escrow,Paypal,Moneygram,Creditcard,D/A,D/P,etc.
Q2:MOQ?
A2:One set is ok.
Q3:Delivery time?
A3:If in stock,3 days;If not in stock,5~8 days.
Q4:Can you accept OEM/ODM ?
A4:Our products can be customized design for our customer by OEM/ODM.
Q5:How do you guarantee your products quality?
A6:Normally,our products warranty within one year;we are free to provide extra quick-wear parts.
Q6:What kinds of information i need provide before purchase?
A6: 1.QTY?(set)
2.Cutting diameter?(mm)
3.Which kinds of steel material do your need process?(Rebar,Round bar,Square bar,)
4.Power supply?(Voltage,Frequency,Phase)
