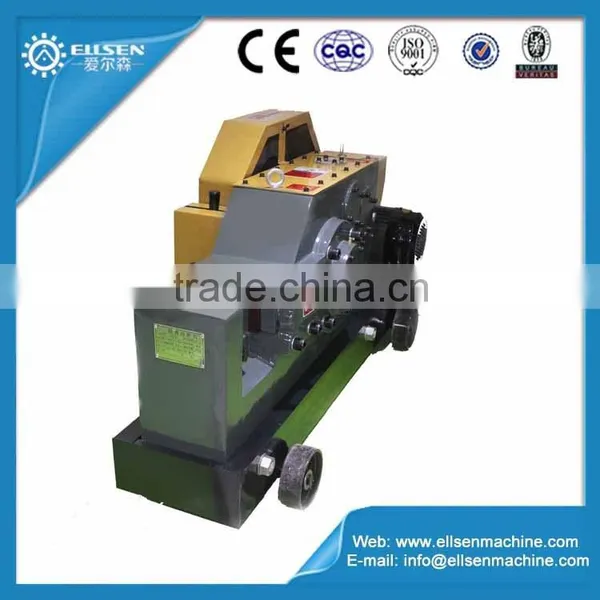

Help CenterPortable Steel Automatic Rebar Cutting Machine
Related Products
-
Portable Steel Rebar Thread Cutting MachineUS$ 800 - 1,000MOQ: 1 Set -
Germany Popular Reinforced Rebar Cutting Machine GQ40US$ 800 - 1,000MOQ: 1 Set
-
Popular Italian Style Heavy Duty Rebar Cutting MachineUS$ 800 - 1,000MOQ: 1 Set
-
Factory Rebar Cutting Machine Price GQ40US$ 800 - 1,000MOQ: 1 Set
-
Construction Use Portable Steel Bar CutterUS$ 800 - 1,000MOQ: 1 Set
Portable steel hydraulic cutting rebar machine with safe cover portable steel rebar cutting machine
hydraulic rebar cutting machine
Bar cutting machine is one kind of steel bar processing machine,widely used construction building field.It can be classfied GQ40,GQ50,GQ60,GQ70 model bar bending machine with clutch OR without clutch.
Among the models, GQ40, GQ50 is the most popluar model in construction work. All the models as below, they add safety cover above the blade place and big spring beside the blade place. And the BIGGEST model GQ70 are used in heavy construction work, cut bar diameter up tp 70mm. To change the blade shape, the machine can also cut square steel, angle steel, flat steel.
1. The motor, 100% copper motor with speed 2890r/min,
normally this motor can work 2 years without breaking
2. The gear, our gear material ductile iron QT500-7
which have high precision and hardness .all the gears are fine processed twice.
3. The operation disc material carbon structure steel 45#
size Φ400mm*45mm and Φ380mm*45mm.
4. The painting , beautiful anti-rust spray painting inside and outside .
5. The stop gauge can be installed from four different corners to
realize the requirement of putting steel bar from various directions.
6. It is fully enclosed gear-box, low noise, high and low speed,
which is easy for the worker to operate.
7. It adds eccentric bushing, ultra-high hardness accessories
and adjustable baffles, so it will have longer service life.
8. We provide complete accessories, so do not worry the maintenance.
9. Our products with ISO certification in conformity with national quality standards.
| Technical parameter of rebar cutting machine hydraulic rebar cutting machine | |||||
| Model | GQ40 | GQ50 | GQ60 | GQ70 | |
| Cutting range | Carbon steel | ≤Φ40mm | ≤Φ50mm | ≤Φ55mm | ≤Φ65mm |
| II-grade deformed steel | ≤Φ32mm | ≤Φ42mm | ≤Φ42mm | ≤Φ50mm | |
| Cutting Specification | Flat Steel | 70x15mm | 80×18mm | 80×18mm | 80×18mm |
| Square Steel | 32x32mm | 40×40mm | 40×40mm | 40×40mm | |
| Angle Steel | 50x50mm | 63×63mm | 63×63mm | 63×63mm | |
| Cutting Frequency | 32times/min | 28times/min | 28times/min | 25times/min | |
| Power of Motor(KW) | 2.2/3 | 4/3.0 | 5.5KW-2P | 11 | |
| Motor Speed(r/min) | 2890 | 2890 | 2890 | 1440 | |
| Rated Voltage(V) | 220V~440V | 220V~440V | 220V~440V | 220V~440V | |
| Dimension(mm) | 1250×500×730 | 1420*530*850 | 1800x500x970 | 1550×750×1000 | |
| Whole Weight(Kg) | 450 | 580 | 800 | 1300 | |
| Above parameter just for your reference,if any other special demands,can be customized design based on your demands. | |||||
Zhengzhou Ellsen is a focous on design, production,sales and sales service manufacturer .At present,our factory professional manufacture bar bending machine,bar cutting machine,stirrup bending machine,straightening cutting machine,wrought iron machine. Our products has passed CE,GL,ISI,SGS,etc certificates and our product with high strict quality control and professional check system.Our products have been exported to USA, Australia,England,Russia,India, Pakistan, Bengal, Philippine, Australia, Malaysia, etc,more than100 countries and regions.
Q1:What kinds of payment can you accept?
A1:We can accept payment term:T/T,L/C,Western union,Trade assurance,Escrow,Paypal,Moneygram,Creditcard,D/A,D/P,etc.
Q2:MOQ?
A2:One set is ok.
Q3:Delivery time?
A3:If in stock,3 days;If not in stock,5~8 days.
Q4:Can you accept OEM/ODM ?
A4:Our products can be customized design for our customer by OEM/ODM.
Q5:How do you guarantee your products quality?
A5:Normally,our products warranty within one year;we are free to provide extra quick-wear parts.
Q6:What kinds of information i need provide before purchase?
A6: 1.QTY?(set)
2.Cutting diameter?(mm) automatic rebar cutting machine
3.Which kinds of steel material do your need process?(Rebar,Round bar,Square bar,)
4.Power supply?(Voltage,Frequency,Phase)
