Home > Metallurgy, Mineral & Energy > Magnetic Material > NdFeB Magnet > C1F-04 Magnetic Sendust Powder

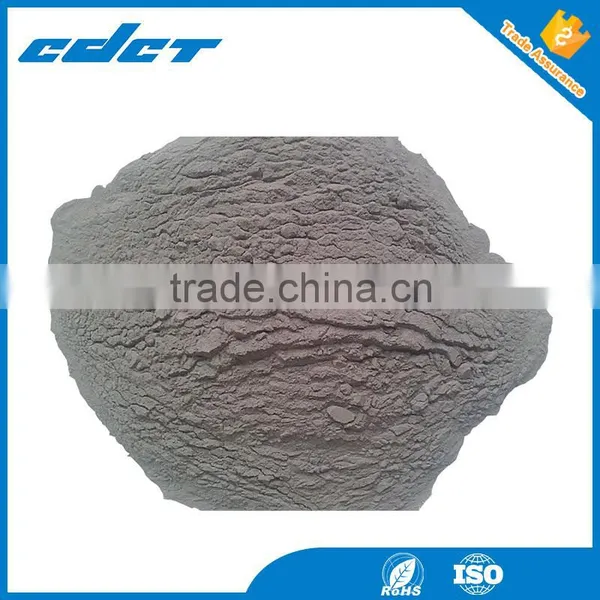

C1F-04 Magnetic Sendust Powder

Name: C1F-04 Magnetic Sendust Powder
Brand: CDCT
SKU: 130404335
Availability: InStock

C1F-04 Magnetic Sendust Powder thumbnail-1

US$ 13.5 - 15.5 MOQ: 1 Kilogram

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

CDCT

Model Number:

C1F-04

Contact Supplier Request Quote Chat Now

Chengdu Crystallite Technology Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/guangzhou.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name CDCT

Model Number C1F-04

Type Other, magnetic

Composite Ferrite Magnet

Shape Other, flake

Application Industrial Magnet

C1F-04 soft magnetic material FeSiAl powder

1 Chemistry Element

	Si	Al	O	C	P	S	Mn	Fe
wt%	9.6	5.4	≤ 0.2	0.08	0.03	0.002	0.08	Balance

2 physical parameters

grade	Mesh number	Laser particle size (μm)
grade	Mesh number	D10	D50	D90
C1F-04	-150	13-15	33-38	80

3 Magnetic Properties

Bs	Tc	Br	Hc	μi
1.05T	460°C	0.3T	0.02KA/m	45000

4 Usage (1) magnetic powder to be used as wave-absorbing material

                   (2) frequency conversion inductance core, frequency conversion and transformer core.
                   (3) PFC choke, high Q quality filter inductance, loaded coils.
                   (4) Line noise filters, pulse transformer, the energy storage of switch power supply and inductor filtering.

5 Features   (1) High saturation magnetic induction, high permeability.
                       (2) Excellent DC current bias.
                      (3) high frequency low loss, low noise.

(4) excellent thermal stability.

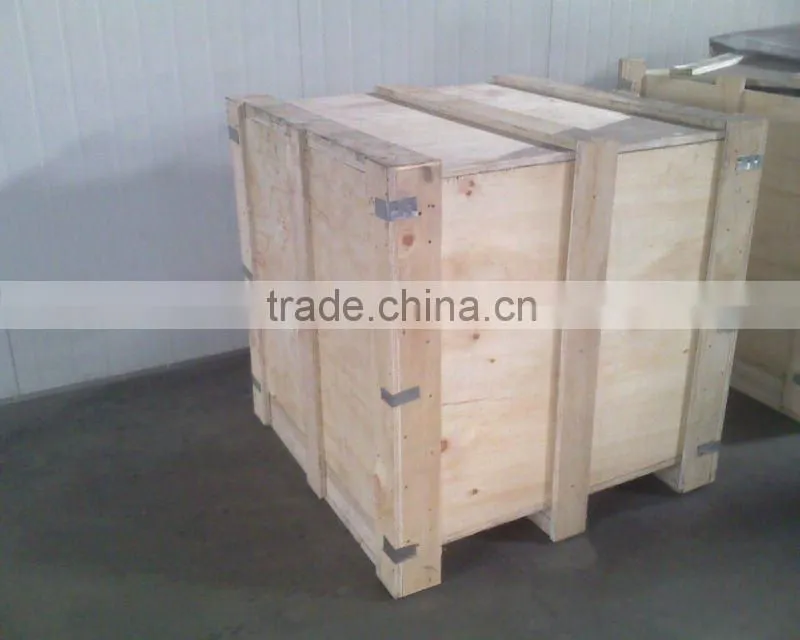

6 package 10KG per bag,50 bags put into a wooden case.
