Home > Metallurgy, Mineral & Energy > Magnetic Material > NdFeB Magnet > C1F200 Fesial Soft Magnetic Powder Transformer Core

C1F200 Fesial Soft Magnetic Powder Transformer Core

Name: C1F200 Fesial Soft Magnetic Powder Transformer Core
Brand: CDCT
SKU: 130404069
Availability: InStock

C1F200 Fesial Soft Magnetic Powder Transformer Core thumbnail-1

C1F200 Fesial Soft Magnetic Powder Transformer Core photo-1

US$ 25,000 - 30,000 MOQ: 0 Ton

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

CDCT

Model Number:

C1F200

Contact Supplier Request Quote Chat Now

Chengdu Crystallite Technology Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai / Shenzhen / Guangzhou.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name CDCT

Model Number C1F200

Type Other, Soft, Magnetic

Composite Other, Fe-Si-Al

Shape Other, powder

Application Industrial Magnet

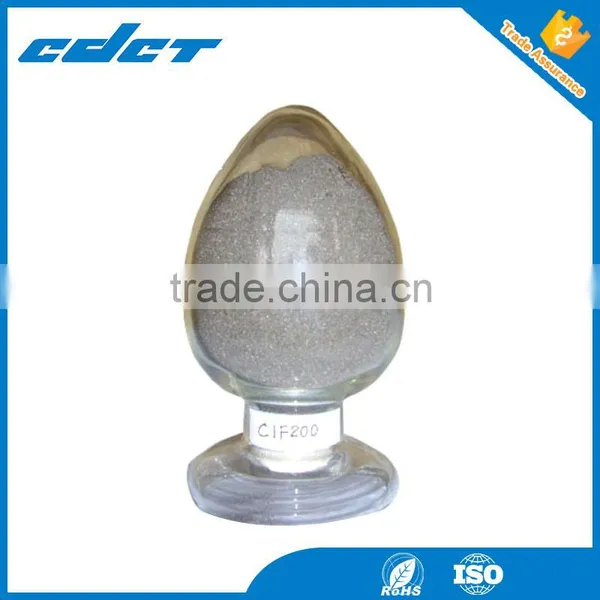

C1F200 soft magnetic material sendust powder

1 Chemistry Element

	Si	Al	O	C	P	S	Mn	Fe
wt%	9.6	5.4	≤ 0.2	0.08	0.03	0.002	0.08	Balance

2 physical parameters

grade	Mesh number	Laser particle size (μm)				Apparent density	fluidity
grade	Mesh number	D25	D50	D75	D97	(g/cm3)	(s/50g)
C1F200	-200	21	32	50	98	2.9-3.3	<60

3 Magnetic Properties

Bs	Tc	Br	Hc	μi
1.05T	460°C	0.3T	0.02KA/m	45000

4 Usage

                (1) frequency conversion inductance core, frequency conversion and transformer core.
                 (2) PFC choke, high Q quality filter inductance, loaded coils
                 (3) Line noise filters, pulse transformer, the energy storage of switch power supply and inductor filtering.

5 Features   (1) High saturation magnetic induction, high permeability.
                    (2) Excellent DC current bias.
                   (3) high frequency low loss, low noise

(4) excellent thermal stability.

6 package 1000KG per jumbo bag with wooden case/wood pallet, or small bags with wooden case,also can according to your requirement
