EMI Absorber Material Sheet

Name: EMI Absorber Material Sheet
Brand: CDCT
SKU: 130404313
Availability: InStock

US$ 60,000 - 70,000 MOQ: 0 Ton

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

CDCT

Model Number:

C1F-02

Contact Supplier Request Quote Chat Now

Chengdu Crystallite Technology Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai / Shenzhen / Guangzhou/Ningbo.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name CDCT

Model Number C1F-02

Type Other, Soft, Magnetic

Composite Other, Fe-Si-Al

Shape Other, powder

Application Industrial Magnet

EMI absorber material FeSiAl powder C1F-02

1 Chemistry Element

	Si	Al	O	C	P	S	Mn	Fe
wt%	9.6	5.4	≤ 0.2	0.08	0.03	0.002	0.08	Balance

2 physical parameters

grade	Mesh number	Laser particle size (μm)
grade	Mesh number	D25	D50	D75	D97
C1F-02	-150	16	27	40	73

3 Magnetic Properties

Bs	Tc	Br	Hc	μi
1.05T	460°C	0.3T	0.02KA/m	45000

4 Usage (1) magnetic powder to be used as wave-absorbing material.

                 (2) frequency conversion inductance core, frequency conversion and transformer core.
                 (3) PFC choke, high Q quality filter inductance, loaded coils.
                 (4) Line noise filters, pulse transformer, the energy storage of switch power supply and inductor filtering.

5 Features   (1) High saturation magnetic induction, high permeability.
                       (2) Excellent DC current bias.
                      (3) high frequency low loss, low noise.

(4) excellent thermal stability.

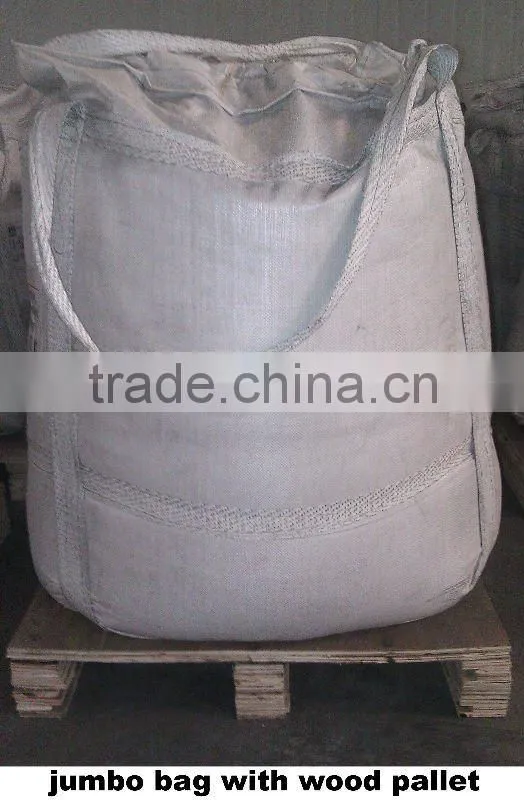

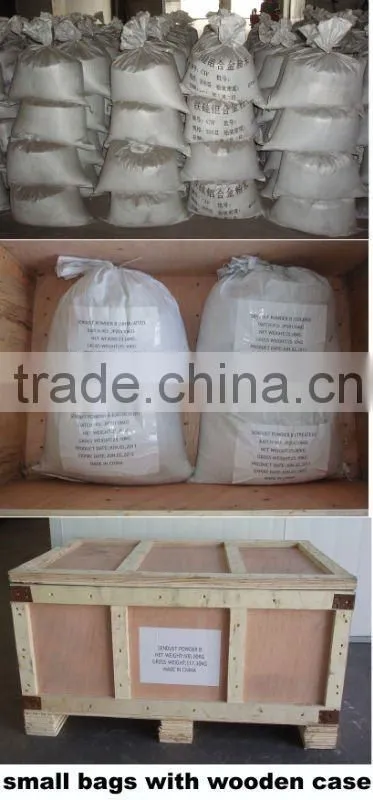

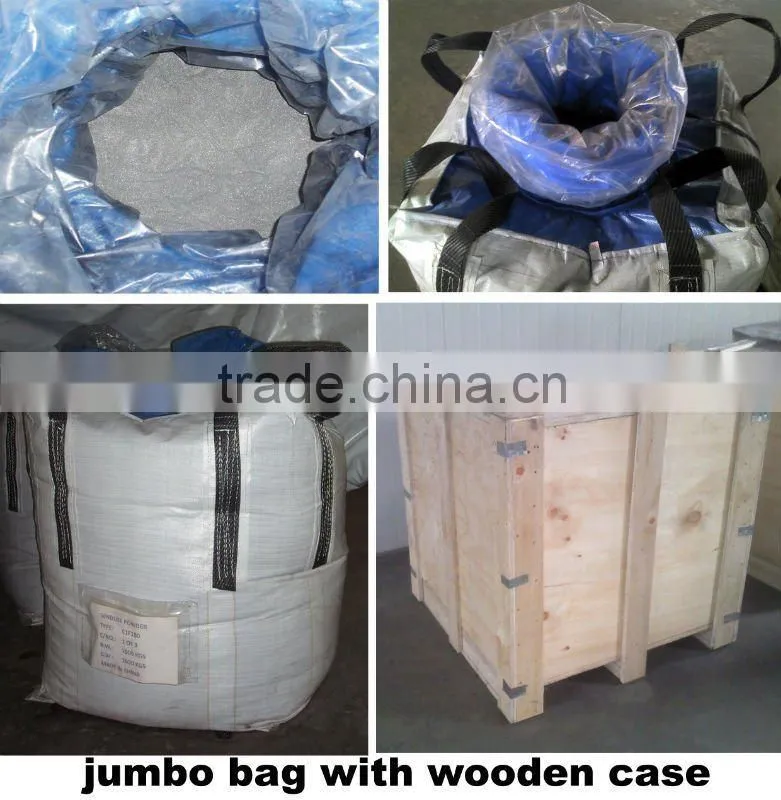

6 package 300KG per jumbo bag with wooden case/wood pallet, or small bags with wooden case,also can according to your requirement.
