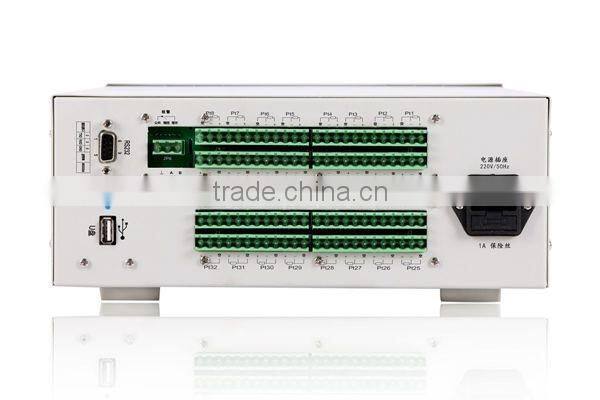

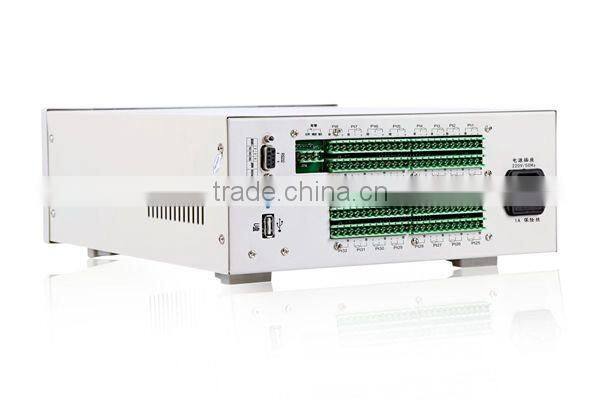

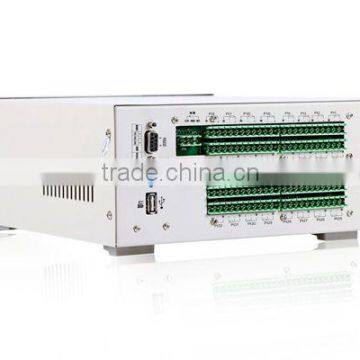

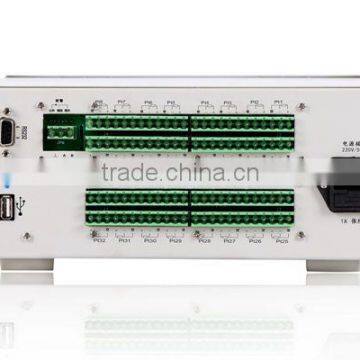

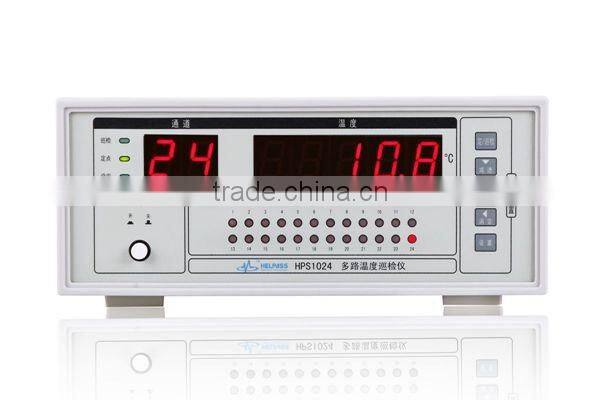

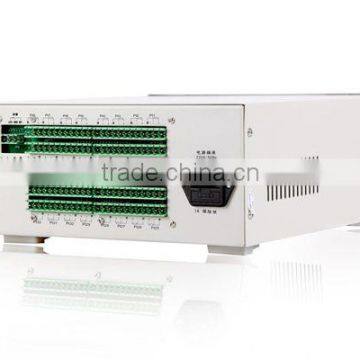

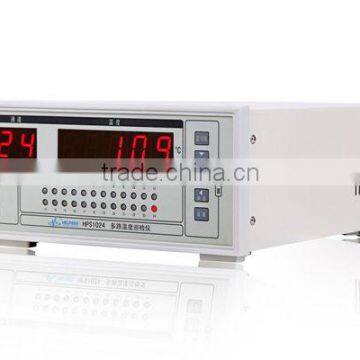

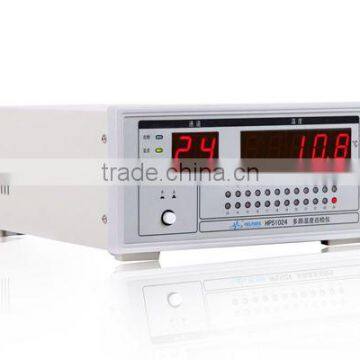

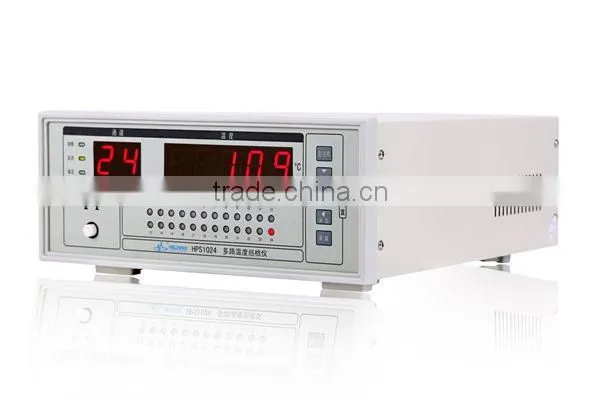

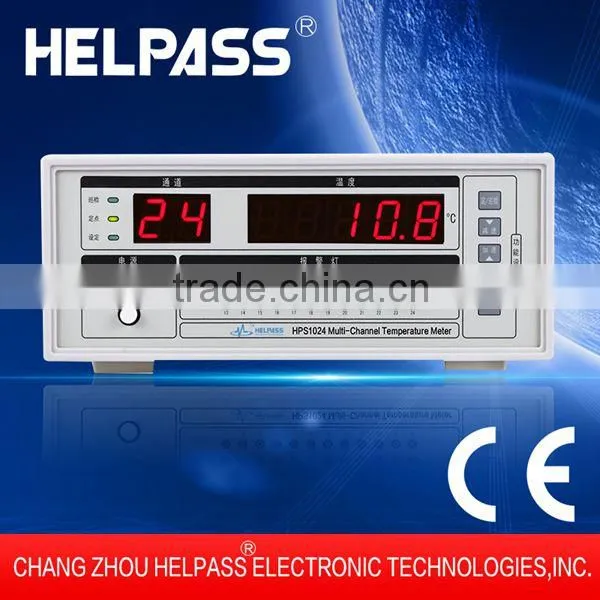

HPS1024 China Multi-channel Temperature Meter
HPS1024 is a cost-effective, simple operation of the multi-channel temperature tester launched by Helpass. It adopts the latest high-performance ARM microprocessor,compatible with a variety of temperature sensor, having fast response speed, stable data, along with thermocouple detection function. The instrument supports RS232/485 communication interface and it can achieve data acquisition, analysis and printing through the standard computer software. Supporting U disk storage, real-time sampling data storage, users can data correction independently.
♦ 0.8-inch high-definition LED display
♦ Each channel has an independent alarm indicator light
♦ Compatible thermocouple, thermal resistance temperature sensor
♦ Each channel can be independently set temperature probe type
♦ Support Modbus protocol
♦ Temperature compensation function
♦ Broken thermocouple check function
♦ Innovative portable temperature probe insertion mode
♦ Household appliance, heating appliance, thermostat, oven, thermal protector
♦ Food, pharmacy, granary, incubator, storage room
♦ Photoelectricity, intelligent cooling, lighting, motor, transformer, automobile manufacturing
Model |
HPS1024 |
Features | |
Displayer |
0.8-inch high-definition LED display |
Measurement function | |
Graduation Number |
Thermocouple: K,T,B,E, J,N,R,S Thermal Resistance:PT100,CU50 |
Basic Accuracy |
0.2°C |
Measurement Range |
-270°C -1300°C |
Resolution |
0.1°C |
Channel number |
24 |
Measurement Mode |
Fixed-point and inspection(the scanning number arbitrarily set) |
Inspection Speed |
Adjustable 1-10 file |
Correction Function |
Error correct for each channel |
Cold junction compensation |
Accuracy 0.5°C |
High-voltage protection |
Maximum 400V ,AC/DC live line measurement |
Others |
Broken thermocouple check function |
Sorting and interfaces | |
Comparator |
High/low beep Individual setting high/low value for each channel |
Interface |
RS-232C interface/ U-disc interface (option)/ Relay switch output(option)/GPIB(option) |
General Specification | |
Working Environment |
0°C -40°C ,≤90%RH |
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
Power Consumption |
≤30 VA |
Dimension |
270 mm(W) x 120 mm(H) x 335 mm(D) |
Weight |
2.5kg |
Standard accessories:
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ K-type thermocouple 8 teams
♦ Software CD (PC Data Acquisition Software)
♦ Communication Cable
♦ M3 slotted screwdriver
Optional accessories:
♦ USB to RS232 universal serial line (1.8 meters)
♦ Private storage U disk
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product,debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
