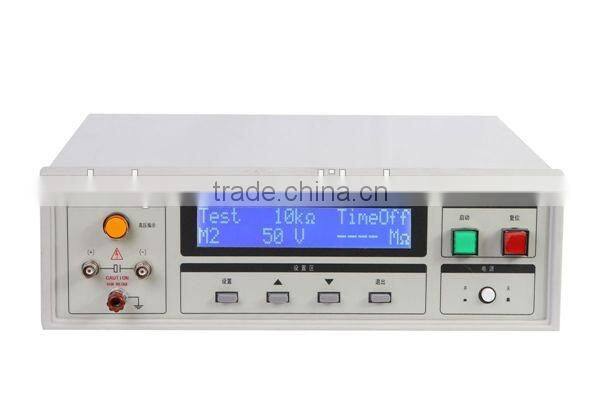

HPS2683A Megger Tester for Insulation Resistance with 100kOhm-1TOhm Resistance Measuring Range
♦ High-performance microprocessor control
♦ Insulation resistance, leakage current dual parameter display
♦ Intelligent clear function
♦ Range with automatic and manual modes
♦ Strong anti-interference ability
♦ Qualified and unqualified sound and light alarm
♦ HD LCD display
♦ Comprehensive communication interface for data communication with the PC and the instrument remote control.
♦ Anti-static Detection, plastics, coal mine
♦ Field test,periodic inspection and destructive test
♦ Testing insulation resistance and leakage current of switch equipment, relay, motor, generator and cable
♦ Measurement of the insulation resistance of electronic components and devices
Model |
HPS2683A |
Feature | |
Displayer |
HD LCD display |
Maximum Reading |
9999 |
Measurement Function | |
Measurement Parameters |
High resistance(Rv and Rs),Micro-current |
Test voltage |
10V-1000VDC(Arbitrarily set) |
Voltage accuracy |
±1% |
Basic Accuracy |
<10G: 3%; ≥10G: 5%; ≥100G: 10%; |
|
Measurement Speed(time/sec) |
6 |
Ranging Mode |
Auto,Manual |
Trigger Mode |
Internal,Manual,Outside |
Charging timer |
999.9s |
Correction Function |
Full range open correction |
Measurement range | |
High resistance |
100kΩ~1TΩ(105Ω-1012Ω) |
Micro-current |
0.001μA~200.0μA |
Sorting and interface | |
Sorting Function |
Qualified, unqualified indicator light and Buzzer alarm |
Interface |
RS-232C/HANDLER |
General Specification | |
Working Environment |
0°C -40°C ,≤90%RH |
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
Power Consumption |
≤40 VA |
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS268001 Special test line
♦ HPS268004 Electrode box
♦ Communication cable
Technical Service:
♦We have professional engineers who design the test methods and test fixture for the product,debugged test equipment parameter to reach the optimal performance.
♦We provide free technical training and offer free equipment maintenance technology.
♦We can design special test programs and test fixture according to the customer.
We will arrange to ship your order with 3-15 working days after payment confirmed
1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days
2.EMS:Reach most countries takes about 6-8 days
