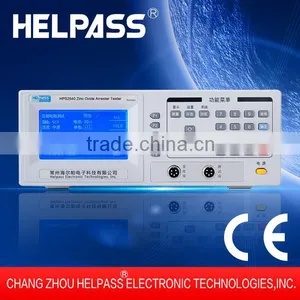

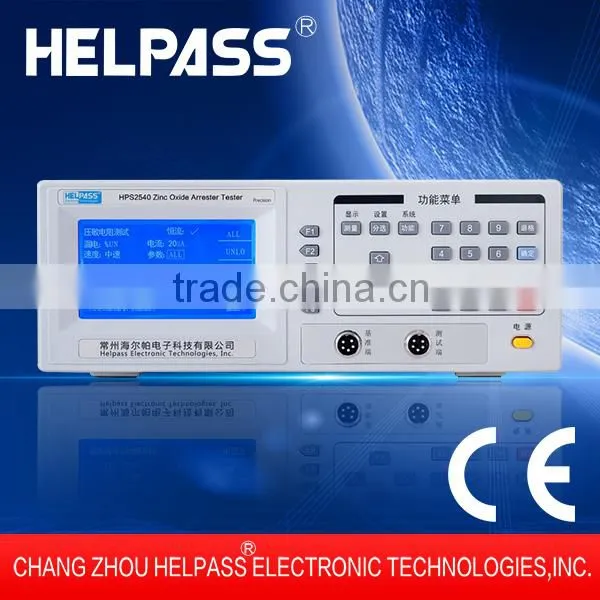

MOA Tester Zinc Oxide Arrester DC ResistanceTester(HPS2540)
♦ Multiple parameters displayed on the same screen
♦ Various measurement modes are compatible with different types of varistors
♦ Set constant pressure arbitrarily of the leakage current
♦ It can be used as a high-precision DC voltage source and a current source
♦ Instrument can automatically sorting and filing
♦ With memory, computation, maintenance, self-test, leak alarm functions
♦ With high voltage short circuit protection, over current protection, high voltage preset functions
♦ Complete communication interface
♦ Varistor (SMD, Silver pieces, Lead Forming)
♦ MOA, vacuum lightning tube
♦ DC parameter test for voltage regulator tube, voltage limiting volt ampere characteristic device, overvoltage protection element
Model |
HPS2540 |
Signal Source | |
Output Voltage |
5~1445V,Output Accuracy:≤0.5%±0.1V; |
Constant Pressure Ratio |
0.0%~99.9% |
Constant Current Accuracy |
1000µA±5;100.0μA±2.0 |
Sorting | |
Sorting Function |
Built-in comparator:qualified,onlap and downlap |
Signal Output |
BIN1~BN3,HI,IN,LO |
Beep |
OFF,IN,HI,LO |
General Specification | |
Working Environment |
0°C -40°C ,≤90%RH |
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
Power Consumption |
≤60 VA |
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
